Basic parameters:

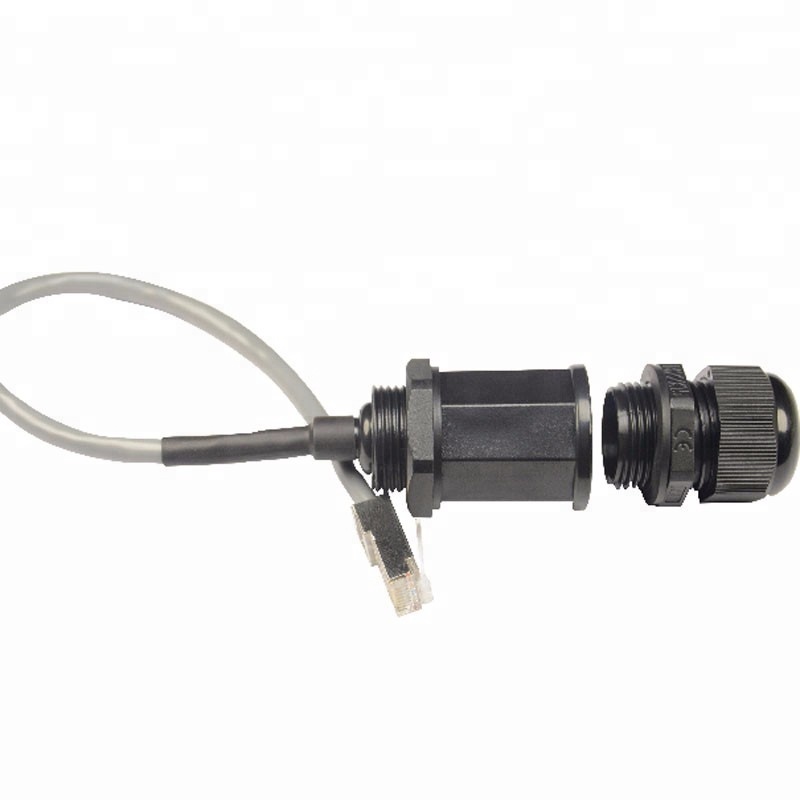

First, the name: RJ45M22 super five types of shielded belt waterproof joint

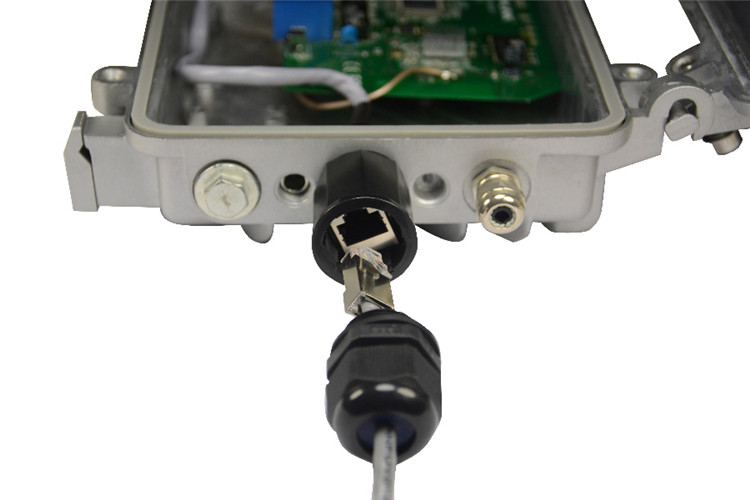

Second, the product form: fixed on the box body, the inner end network cable is connected to the AP motherboard inside the box, and the outer end is inserted into the external network cable and is waterproof.
The main parameters:
1 core number: 8 stitches
Waterproof rating: IP45 inside waterproof box, IP68 outside waterproof box
2 Connection type: RJ45
Flame retardant rating: UL94V-0
3 Connection method: chassis fixed + plug-in + thread pressure lock
Connector access range: OD (3 ~ 8) mm
4 Mounting position size: M22X1.5
Housing wall thickness: Thread type: >3mm, through hole type: 0.3~7.5mm
5 connector transmission classification: super five (CAT5E)
Product with cable length: 25 cm (Super five 8-core pure copper shielded twisted pair cable, FTP / CAT5E / 24AWG)
6 Transmission speed range: 10BASE-T, 100 BASE-T, 1000 BASE-T network
Electrical performance:
1 Current Rating: 1.5AMPS
Rated voltage: 125VAC, 75VDC
2 Insulation resistance: >500MΩ
Compressive strength: AC1000V 50HZ or 60HZ 1 minute
3 Contact resistance: <10MΩ
Mechanical behavior:
1 Insertion force: 900g
Mating strength: 7.7Kg between plug and socket
2 Service life: >750 insertions
Material:
1 Case: ABS
Waterproof rubber ring: silicone + rubber
2 Waterproof connector: Nylon PA66 (UL94V-0)
Socket contact pin: 0.5mm diameter copper wire
3 Shielding shell: 0.25mm thick copper alloy surface nickel plated
Gold thickness of contact pin: 6u inch
Environmental conditions:
1 Working temperature: (-40°C~85°)
Storage temperature: (-25 ° C ~ 65 °)
2 Atmospheric pressure: (86 ~ 106) kPa
Relative humidity: ≤90%
