Overview
Quick Details
- Place of Origin:
- Guangdong, China
- Brand Name:
- FAT
- Model Number:
- FAT-LED-F1B
- Output Power:
- 3-22W
- Output Type:
- Single
- Input Voltage:
- AC 85-AC 265 V
- Output Voltage:
- DC 230 V
- Output Frequency:
- DC
- Output Current:
- 100 mah
- Product Name:
- LED Emergency Driver
- Model:
- FAT-LED-F1B
- Input:
- AC 85-265 V50-60Hz
- Power:
- 3-22W
- Battery:
- Lithium ion 11.1V 2400 mAH
- Emergency time:
- 90min
- Dimension:
- 248*40*28mm
- Certification:
- CB CE RoSH
- Warranty:
- 3 Years
- IP Rate:
- IP30
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 37.5X29.5X25.5 cm
- Single gross weight:
- 18.5 kg
- Package Type:
- 1 piece/box;50 pieces/CTN G.W.:18.5 KG
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 100 101 - 1000 1001 - 5000 >5000 Est. Time(days) 1 2 3 To be negotiated
Video Description
Product Description
led tube lightemergency driver internal and external emergency kit
This emergency driver accords with GB17945-2010, it is suitable for all 3-20W (Max 26W)LED lamps with internal IC driver(This device CANNOT be used for the LED lights with RC driver.). It can be used in public places to ensure LED lights work normally when power fail suddenly because of fire and earthquake and etc.. This emergency driver would not influence its environment and power around when it works.
SPECIFICATION
Model | FAT-LED-F1B | Material | stainless steel |
EmergencyPower | 3-26W | Emergency Switch Time | <2s |
Charge Time | 12Hours | Emergency Time | 180-60mins |
Battery | Lithium battery, 3.7V 2400mAh | Working Voltage | AC85V-265V 50/60Hz |
AC Protection | 0.8A 250V | DC Protection | 5A 50V |
Battery cycle time | >500 times | Working Temperature | -10℃-55℃ |
IP Rank | IP30 | Luminous Flux | ≧800LM |
Battery cycle time | >500 times | Dimension | 248*40*28mm |
Type of Lamp | LED tube or other LED light with built-in IC driver |

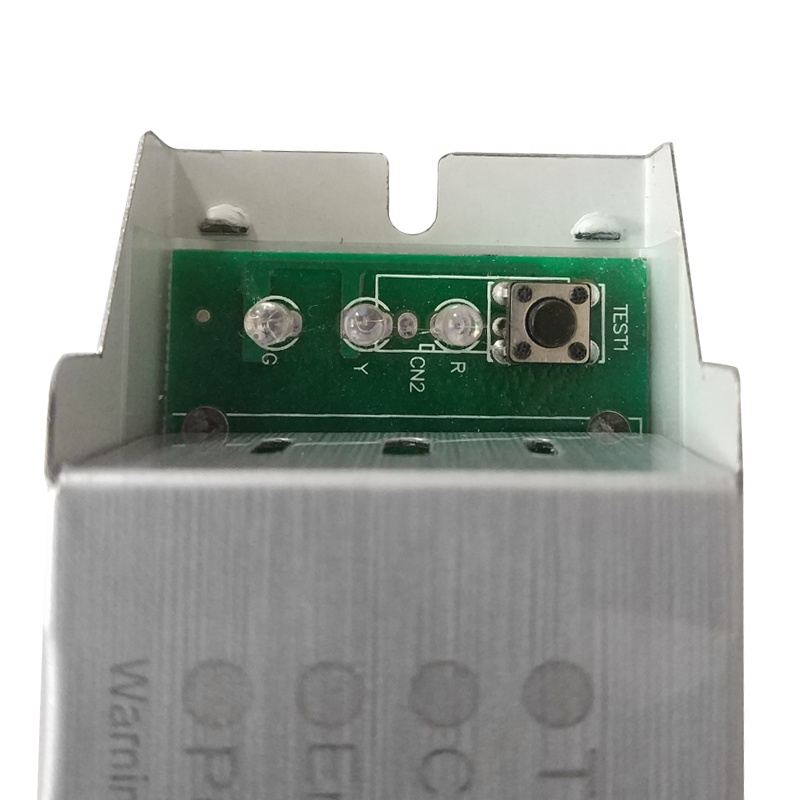

Product Details

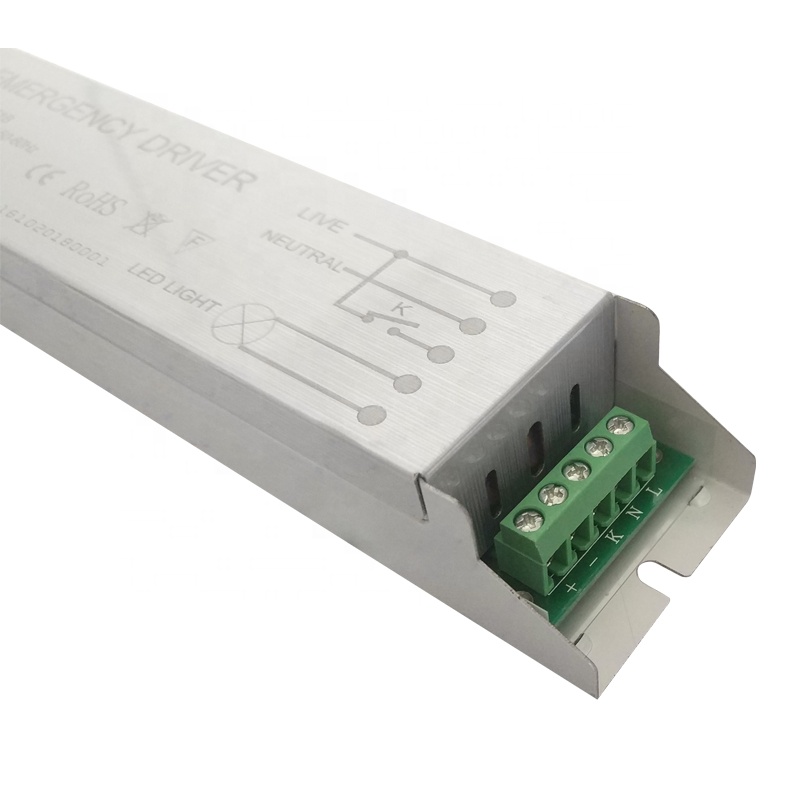

Wiring Diagram
