Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- FAT
- Bulb Type:
- LED
- Battery Type:
- Lithium ion
- Usage:
- aluminum+ABS
- Certification:
- CB,CE,ROSH,EMC, CB CE RoSH
- Specifications:
- 5-20W
- Product Name:
- LED Emergency Driver
- Model:
- FAT-LED-F1C
- Power:
- 3-20W
- Battery:
- Lithium ion 3.7V 2200 mAH
- Emergency time:
- 3H
- Dimension:
- 108*52*22mm
- Warranty:
- 2 Years
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 37.5X29.5X25.5 cm
- Single gross weight:
- 18.8 kg
- Package Type:
- 1 piece/box.100 pieces/CTN G.W.18.8 KG
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100 101 - 500 501 - 1000 >1000 Est. Time(days) 1 2 3 To be negotiated

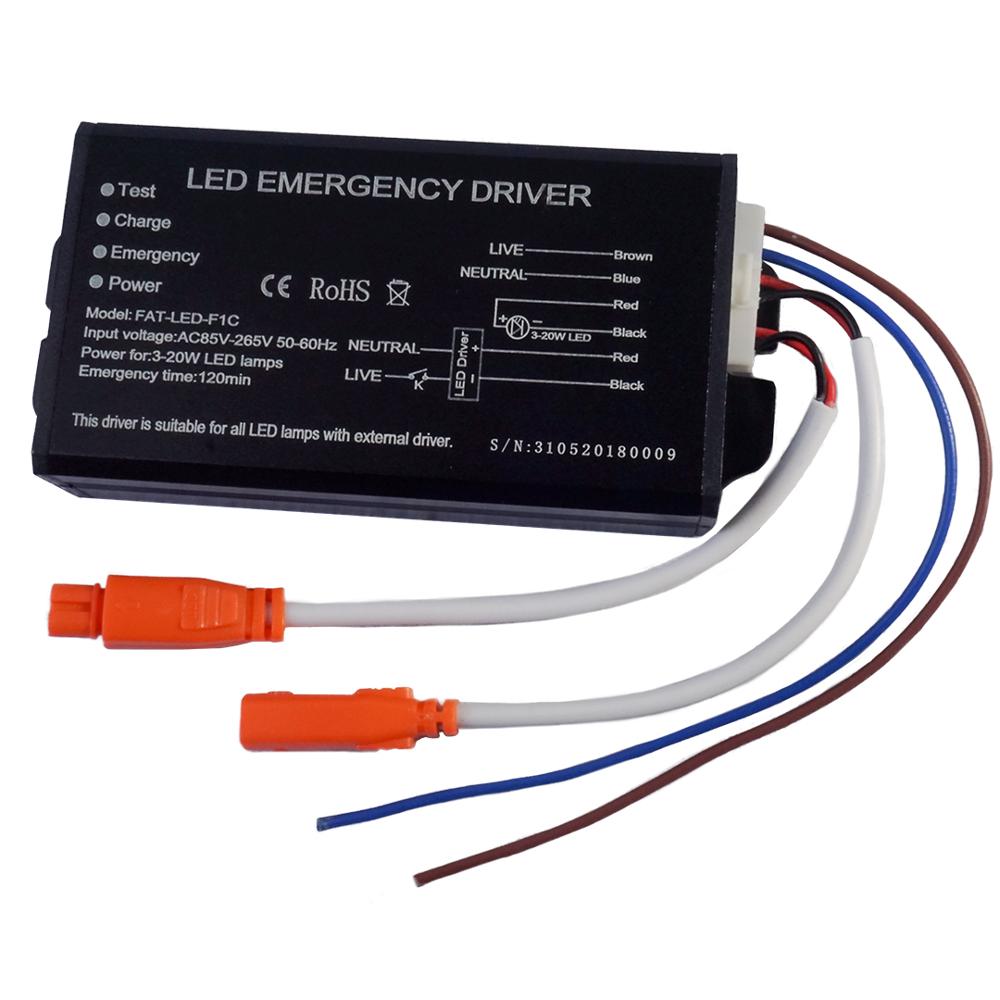

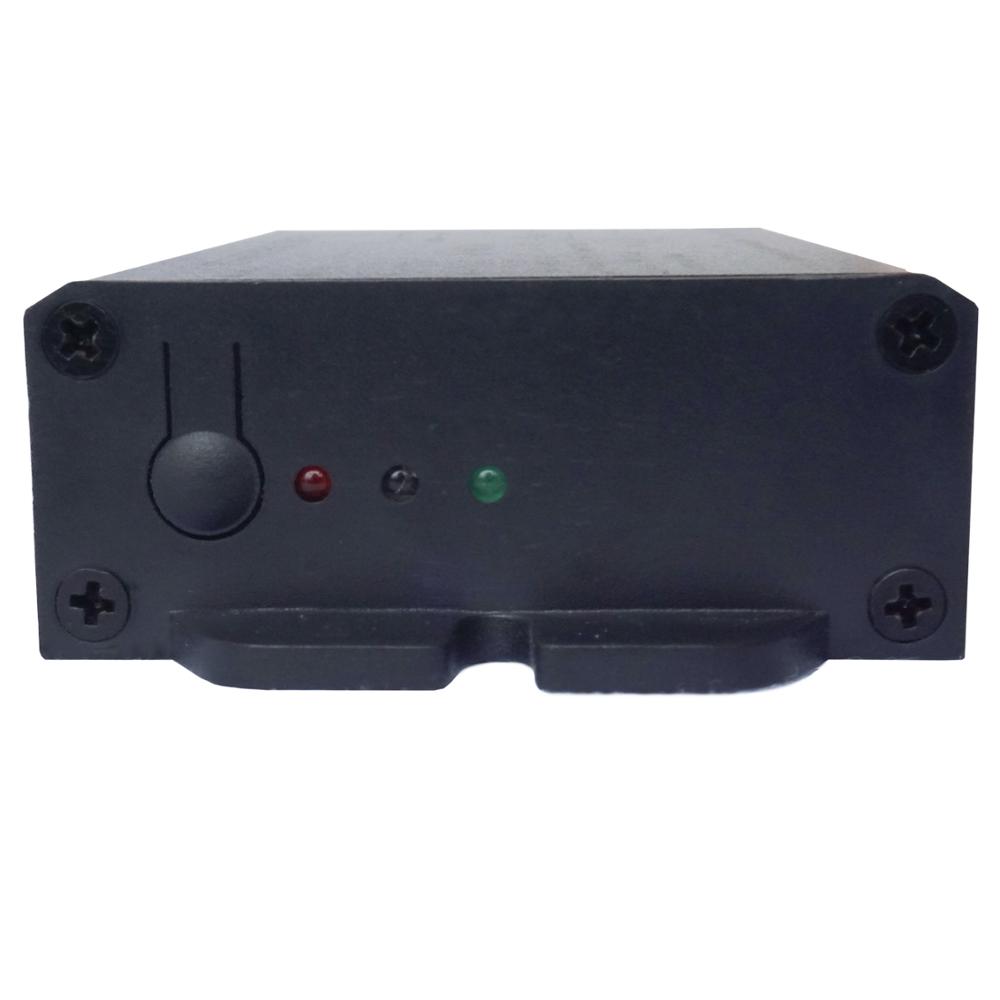

CE class 2 aluminum housing miniature led emergency power supply
This emergency driver is suitable for all 3-20W LED lamps with external driver.,such as led panels ,down light ,spot light and so on.There will be more than 120mins emergency power supply during power outages.It can be used in public places to ensure LED lights work normally even when power failures come which may be caused by fire, earthquake, electric circuit malfunction etc.This emergency driver would not affect its surrounded environment and power when it works.
Model | FAT-LED-F1C | Material | ABS+Aluminum |
Emergency Power | 3W | Emergency Switch Time | <2s |
Charge Time | 12Hours | Emergency Time | >120min |
| Battery | Lithium battery, 3.7V 2200mAh | Working Voltage | AC85V-265V 50/60Hz |
| AC Protection | 1A 250V | DC Protection | 5A 250V |
| Battery cycle time | >500 times | Working Temperature | -10℃x1f—55℃ |
| IP Rank | IP30 | Luminous Flux | >100lm |
| Dimension | 108×52×21mm | Output power | 3-20w |
Type of Lamp | All 3-20W LED lamps with external driver | ||
1,Easier installation:It can be placed in the panel lamp.
1. Are you trading company or manufacturer ?
We are manufacturer over 8 years in China.
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
TT,L/C , CASH.
5.What’s the MOQ ?
MOQ is According to different specifications and materials .
