- Place of Origin:
- Guangdong, China
- Brand Name:
- FAT
- Model Number:
- FAT-LED-F1A
- Output Power:
- 2.4-4W
- Output Type:
- DUAL
- Input Voltage:
- AC 85-AC 265 V
- Output Voltage:
- 10-150V
- Output Frequency:
- 50 Hz
- Output Current:
- 100 mah
- Product Name:
- emergemergencypower source power supply
- Model:
- FAT-LED-F1A
- Power:
- 3w-40W
- Battery:
- Lithium ion 3.7V 2600 mAH
- Emergency time:
- 3H
- Dimension:
- 131*55*21mm
- Certification:
- CB CE RoSH
- Warranty:
- 2 Years
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 37.5X29.5X25.5 cm
- Single gross weight:
- 18.8 kg
- Package Type:
- 1 piece/box.100 pieces/CTN G.W.18.8 KG
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100 101 - 500 501 - 1000 >1000 Est. Time(days) 1 2 3 To be negotiated

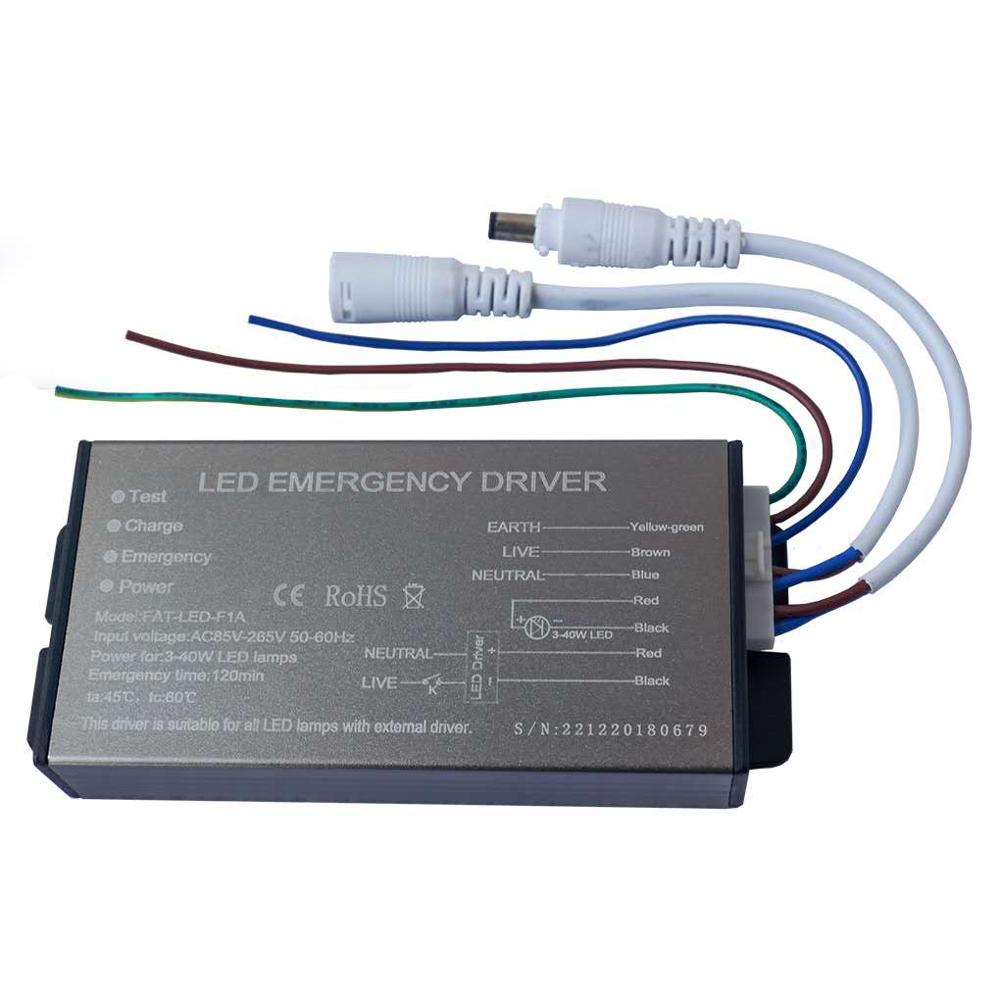

18650 Lithium ion battery led lamp emergency power source power supply
This emergency led emergency power supply is suitable for all 3-40W(max 50W)LED lamps with external driver.,such as led panels ,down light ,spot light and so on.There will be more than 120mins emergency power supply during power outages.It can be used in public places to ensure LED lights work normally even when power failures come which may be caused by fire, earthquake, electric circuit malfunction etc.This emergency driver would not affect its surrounded environment and power when it works.
Model | FAT-LED-F1A | Material | ABS+Aluminum |
Emergency Power | 4W | Emergency Switch Time | <2s |
Charge Time | 12Hours | Emergency Time | >120min |
| Battery | Lithium battery, 3.7V 2200mAh | Working Voltage | AC85V-265V 50/60Hz |
| AC Protection | 1A 250V | DC Protection | 5A 250V |
| Battery cycle time | >500 times | Working Temperature | -10℃x1f—55℃ |
| IP Rank | IP30 | Luminous Flux | >100lm |
| Dimension | 131×55×21mm | Output power | 3w-40w |
Type of Lamp | All 3-20W LED lamps with external driver | ||
1,Easier installation:It can be placed in the panel lamp.
1. Are you trading company or manufacturer ?
We are manufacturer over 8 years in China.
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
TT,L/C , CASH.
5.What’s the MOQ ?
MOQ is According to different specifications and materials .
