- Place of Origin:
- Guangdong, China
- Brand Name:
- FAT
- Model Number:
- FAT-LED-F1B
- Output Power:
- 3W-20W
- Output Type:
- DUAL
- Input Voltage:
- AC 85-AC 265 V
- Output Voltage:
- DC 230 V
- Output Frequency:
- 50-60Hz
- Output Current:
- 100 mah
- Product Name:
- led emergency switching power supply module parts
- Model:
- FAT-LED-F1B
- Input:
- AC 85-265 V50-60Hz
- Power:
- 3-22W
- Battery:
- Lithium ion 11.1V 2400 mAH
- Emergency time:
- 100min
- Dimension:
- 248*40*28mm
- Certification:
- CB CE RoSH
- Warranty:
- 3 Years
- IP Rate:
- IP30
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 31.3X26X23.5 cm
- Single gross weight:
- 22.5 kg
- Package Type:
- 1pcs/box;50pcs/CTN G.W.:22.5KG
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100 101 - 1000 1001 - 5000 >5000 Est. Time(days) 1 2 3 To be negotiated
Small size fire protection led emergency switching power supply module parts
Model | FAT-LED-F1B | Material | ABS+iron |
Emergency Power | 100%output watts | Emergency Switch Time | <2s |
Charge Time | 12Hours | Emergency Time | 60-100min |
Battery | Lithium battery, 11.1V 2600mAh | Working Voltage | AC85V-265V 50/60Hz |
AC Protection | 1A 250V | DC Protection | 5A 250V |
Battery cycle time | >500 times | Working Temperature | -10℃x1f—55℃ |
IP Rank | IP30 | Luminous Flux | >100lm |
Battery cycle time | >500 times | Dimension |
255*40*25mm |
Type of Lamp | all 3-20W LED lamps | ||

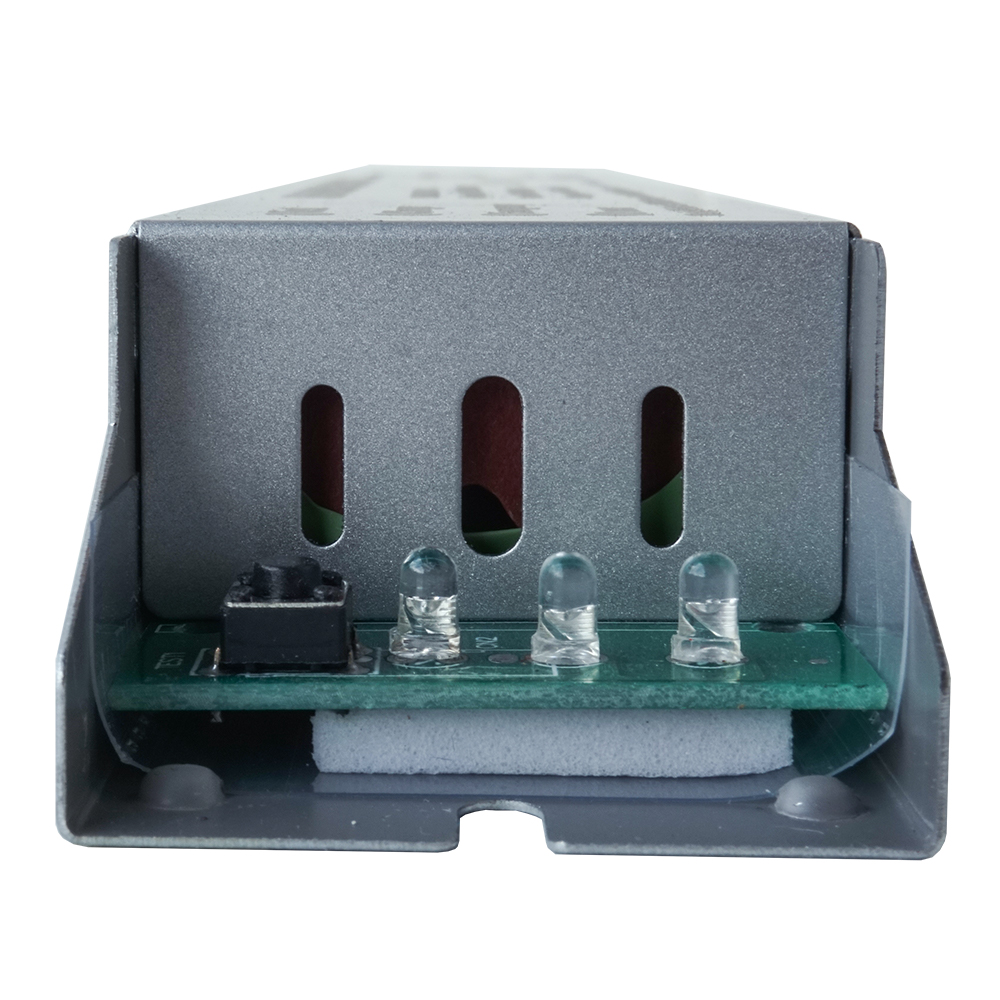

Highlight working status.
The shell is made of cold-rolled steel plate and the surface is sprayed with plastic.
1. Are you trading company or manufacturer ?
We are manufacturer over 30 years in China
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
TT,L/C , CASH
5.What’s the MOQ ?
MOQ is According to different specifications and materials
