Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- FAT
- Model Number:
- FAT-LED-F1A-CB
- Output Power:
- 2.4-4W
- Output Type:
- DUAL
- Input Voltage:
- AC 85-AC 265 V
- Output Voltage:
- 10-150V
- Output Frequency:
- 50 Hz
- Output Current:
- 100 mah
- Product Name:
- led emergency power changeover switch
- Model:
- FAT-LED-F1A-CB
- Power:
- 3-40W
- Battery:
- Lithium ion 3.7V 2400 mAH
- Emergency time:
- 3H
- Dimension:
- 160*80*27mm
- Certification:
- CB CE EMC RoSH
- Warranty:
- 2 Years
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 40.5X32.5X27.5 cm
- Single gross weight:
- 25.5 kg
- Package Type:
- 1 piece/box.100 pieces/CTN G.W.25.5 KG
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100 101 - 500 501 - 1000 >1000 Est. Time(days) 1 2 3 To be negotiated

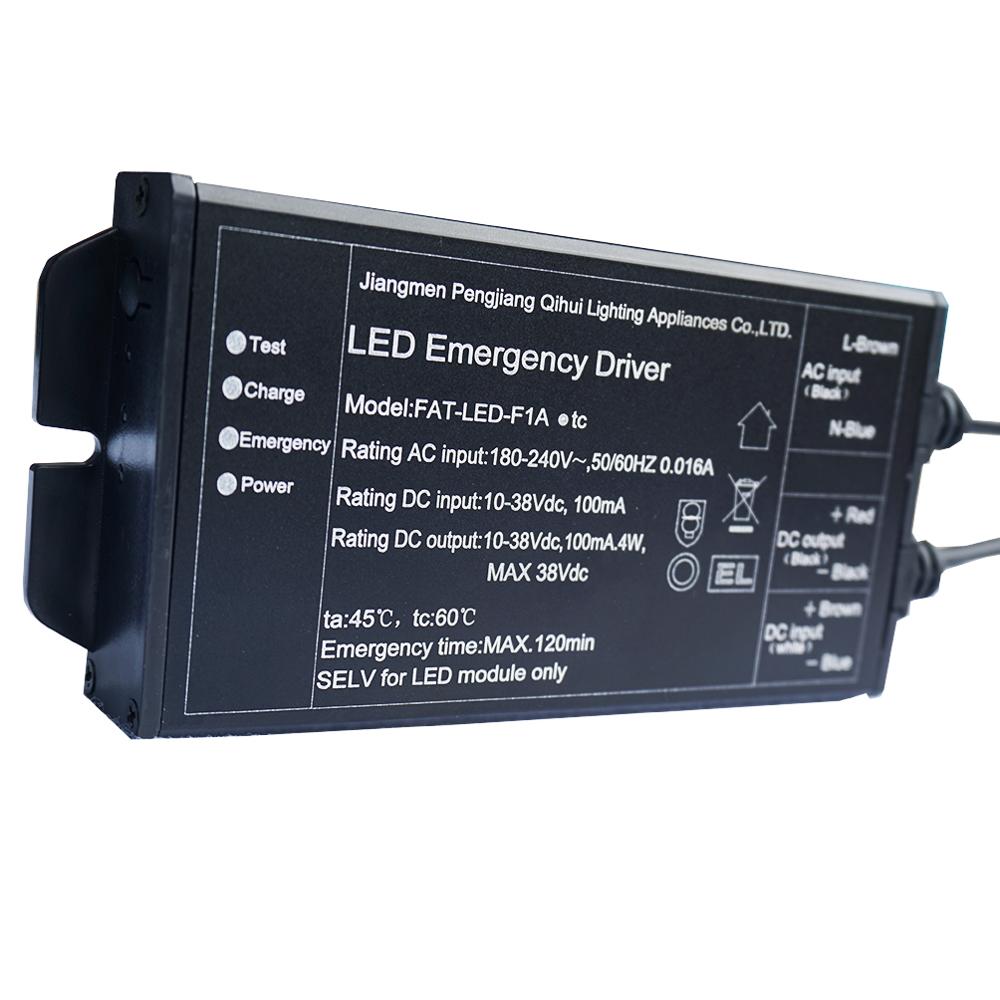

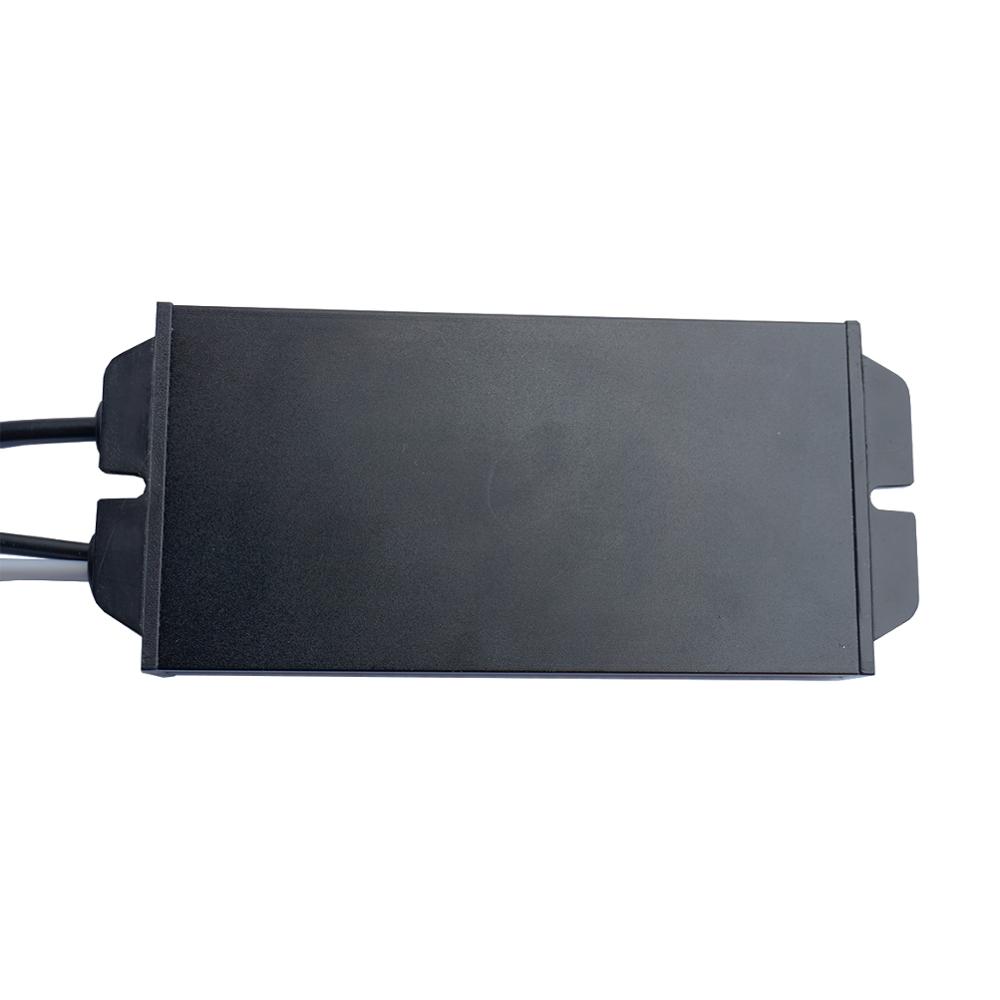

Electrical connectors types led emergency power changeover switch
Model | FAT-LED-F1A-CB | Material | ABS+Aluminum |
Emergency Power | 4W | Emergency Switch Time | <2s |
Charge Time | 12Hours | Emergency Time | >120min |
| Battery | Lithium battery, 3.7V 2200mAh | Working Voltage | AC85V-265V 50/60Hz |
| AC Protection | 1A 250V | DC Protection | 5A 250V |
| Battery cycle time | >500 times | Working Temperature | -10℃x1f—55℃ |
| IP Rank | IP30 | Luminous Flux | >100lm |
| Dimension | 160*80*21mm | Output power | 3-40w |
Type of Lamp | All 3-20W LED lamps with external driver | ||
Ultra-tiny outlook design, the outlook size is only 131*55*21mm,to make the installation space much smaller;
Human-Friendly installation design, to save your time and yourlabor force, and no installation mistakes happen at all;
Wiring Diagram
Ccertificates
1. Are you trading company or manufacturer ?
We are manufacturer over 30 years in China
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
TT,L/C , CASH
5.What’s the MOQ ?
MOQ is According to different specifications and materials
