Home > Products > 3-20w 3Hours Output current switch mode led power supply
3-20w 3Hours Output current switch mode led power supply
Click on the image to view the original image
Product: views:33-20w 3Hours Output current switch mode led power supply
Branch: FAT
Size: 69.5X34X22 cm
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 14:54
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
FAT
Model Number:
FAT-LED-F1D
Output Power:
2-4W
Output Type:
DUAL
Input Voltage:
AC 85v-265v
Output Voltage:
DC 0-30V
Output Frequency:
50 Hz
Output Current:
100 mah
Product Name:
led power supply
Model:
FAT-LED-F1D
Power:
3-20w
Battery:
Lithium ion 3.7V 2200 mAH
Dimension:
84*42*22mm
Certification:
CB CE EMC RoSH
Warranty:
2 Years

Packaging & Delivery

Selling Units:
Single item
Single package size:
69.5X34X22 cm
Single gross weight:
13.5 kg
Package Type:
2 piece/box.100 pieces/CTN. Black plastic pallet case /white inner box.
Picture Example:
package-img
package-img
Lead Time:
Quantity(Carton)1 - 100101 - 500501 - 1000>1000
Est. Time(days)123To be negotiated
Video Description

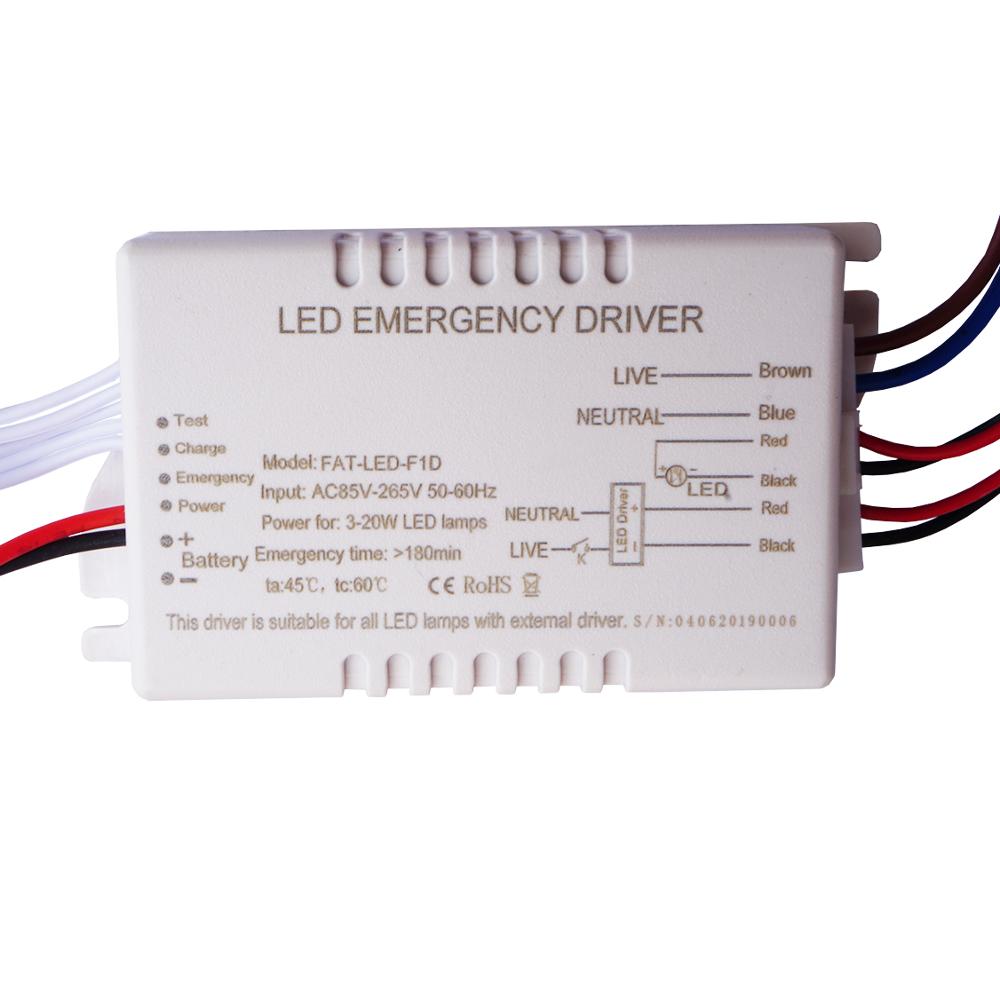

3-20w 3Hours Output current switch mode led power supply

This emergency driver is suitable for all 3-40W(max 50W)LED lamps with external driver.,such as led panels ,down light ,spot light and so on.There will be more than 120mins emergency power supply during power outages.It can be used in public places to ensure LED lights work normally even when power failures come which may be caused by fire, earthquake, electric circuit malfunction etc.This emergency driver would not affect its surrounded environment and power when it works.

Product Description



Model

FAT-LED-F1D

Material

ABS+Aluminum

Emergency  Power

4W

Emergency Switch Time

<2s

Charge Time

12Hours

Emergency Time

>180min

Battery

Lithium battery,

3.7V 2200mAh

Working Voltage

AC85V-265V 50/60Hz

AC Protection

1A 250V

DC Protection

5A 250V

Battery cycle time

>500 times

Working Temperature

-10℃x1f—55℃

IP Rank

IP30

Luminous Flux

>100lm

Battery cycle time

>500 times

Dimension

84×42×20mm

Type of Lamp

all 3-20W LED lamps with external driver

1,Easier installation:has two installation holes,It can be on the surface of the fuel material.2,Humanized operation;Smaller size,82×42×20mm,

It can be put into the smaller layer in houses/rooms,
It can be placed in the panel lamp.

3,The  indicator led light and test buttonis safer to use.

Wire Connection Diagram



 Certificates



Company Information





FAQ



1.  Are you trading company or manufacturer ?

We are manufacturer over 30 years in China

2. How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ?

 Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ?

TT,L/C , CASH

5.Whats the MOQ ?

MOQ is According to different specifications and materials
