- Place of Origin:
- Guangdong, China
- Brand Name:
- FAT
- Model Number:
- FAT-LED-F1D
- Output Power:
- 2-4W
- Output Type:
- DUAL
- Input Voltage:
- AC 85v-265v
- Output Voltage:
- DC 0-30V
- Output Frequency:
- 50 Hz
- Output Current:
- 100 mah
- Product Name:
- Battery Outside Led Emergency Power Bank
- Model:
- FAT-LED-F1D
- Power:
- 3-20w
- Battery:
- Lithium ion 3.7V 2200 mAH
- Dimension:
- 84*42*22mm
- Certification:
- CB CE EMC RoSH
- Warranty:
- 2 Years
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 69.5X34X22 cm
- Single gross weight:
- 13.5 kg
- Package Type:
- 2 piece/box.100 pieces/CTN. Black plastic pallet case /white inner box.
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Carton) 1 - 100 101 - 500 501 - 1000 >1000 Est. Time(days) 1 2 3 To be negotiated

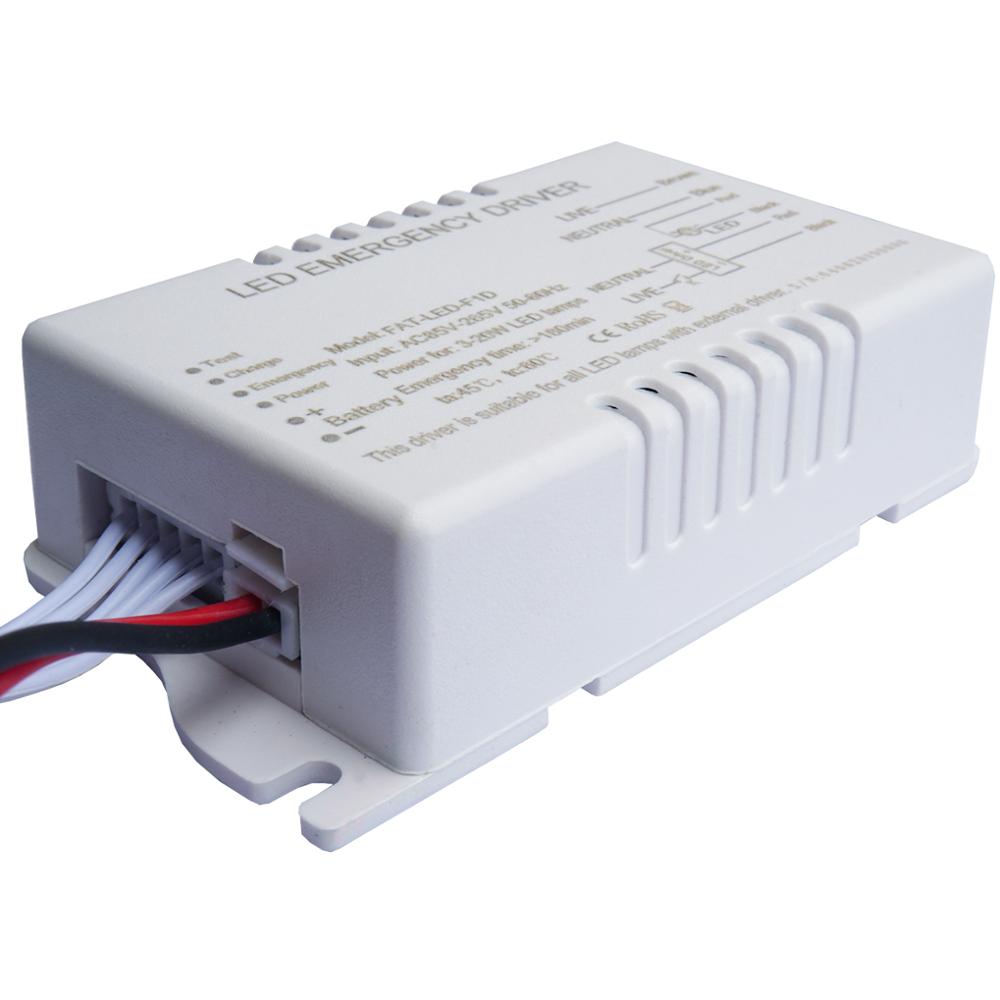

Quality Battery Outside Led Emergency Power Bank
This emergency driver is suitable for all 3-40W(max 50W)LED lamps with external driver.,such as led panels ,down light ,spot light and so on.There will be more than 120mins emergency power supply during power outages.It can be used in public places to ensure LED lights work normally even when power failures come which may be caused by fire, earthquake, electric circuit malfunction etc.This emergency driver would not affect its surrounded environment and power when it works.
Model | FAT-LED-F1D | Material | ABS+Aluminum |
Emergency Power | 4W | Emergency Switch Time | <2s |
Charge Time | 12Hours | Emergency Time | >180min |
Battery | Lithium battery, 3.7V 2200mAh | Working Voltage | AC85V-265V 50/60Hz |
AC Protection | 1A 250V | DC Protection | 5A 250V |
Battery cycle time | >500 times | Working Temperature | -10℃x1f—55℃ |
IP Rank | IP30 | Luminous Flux | >100lm |
Battery cycle time | >500 times | Dimension | 84×42×20mm |
Type of Lamp | all 3-20W LED lamps with external driver | ||
1,Easier installation:has two installation holes,It can be on the surface of the fuel material.2,Humanized operation;Smaller size,82×42×20mm,
It can be put into the smaller layer in houses/rooms,
It can be placed in the panel lamp.
3,The indicator led light and test buttonis safer to use.
Wire Connection Diagram
