- Place of Origin:
- Guangdong, China
- Brand Name:
- FAT
- Model Number:
- FAT-LED-F1A
- Output Type:
- 2.4-4W
- Size:
- 140*63*22mm
- Weight:
- 224g
- Input Voltage:
- AC 85-AC 265 V
- Output Voltage:
- 10-150V
- Type:
- AC
- Output Frequency:
- 50 Hz
- Output Current:
- 100 mah
- Battery:
- Lithium ion 3.7V 2400 mAH
- Emergency Time:
- 3 Hours
- Certification:
- CB CE RoSH
- Warranty:
- 3 Years
- Power(W):
- 3-40W
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 40.5X32.5X27.5 cm
- Single gross weight:
- 26.0 kg
- Package Type:
- 1 piece/box.100 pieces/CTN G.W.26 KG

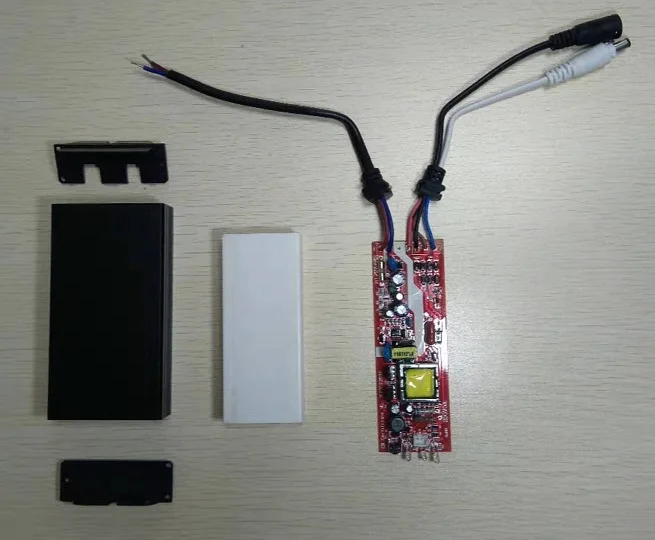

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100 101 - 500 501 - 1000 >1000 Est. Time(days) 1 2 3 To be negotiated
LED Emergency Driver CB Approved
This emergency driver is suitable for all 3-40W LED lamps with external driver. There will be more than 120mins emergency power supply during power outages.It can be used in public places to ensure LED lights work normally even when power failures come which may be caused by fire, earthquake, electric circuit malfunction etc.This emergency driver would not affect its surrounded environment and power when it works.

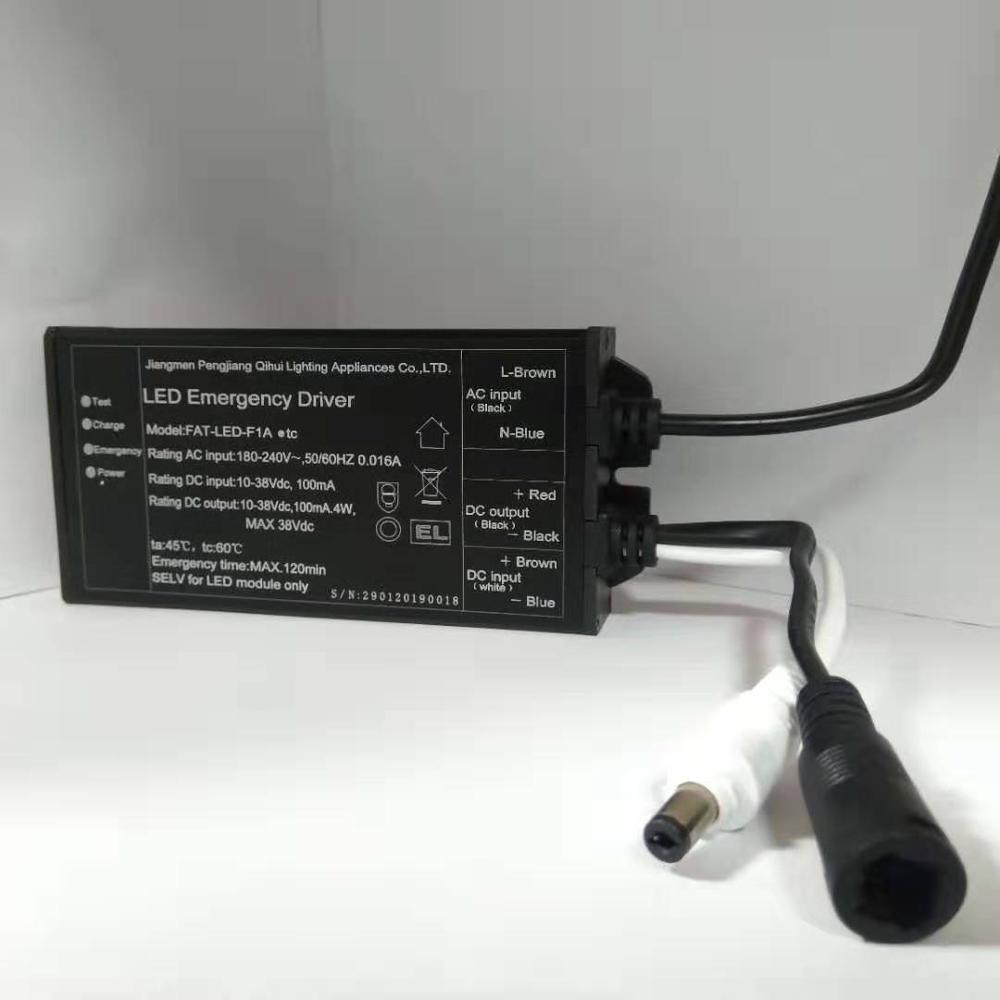

LED Emergency Driver Control
There are three indicating LED lights. Green, Blue and Red. Green for battery full, Red for power and Blue for Emergency time. After that there is one button as shown in photo, That button is for testing. If you press it, emergency LED will work.

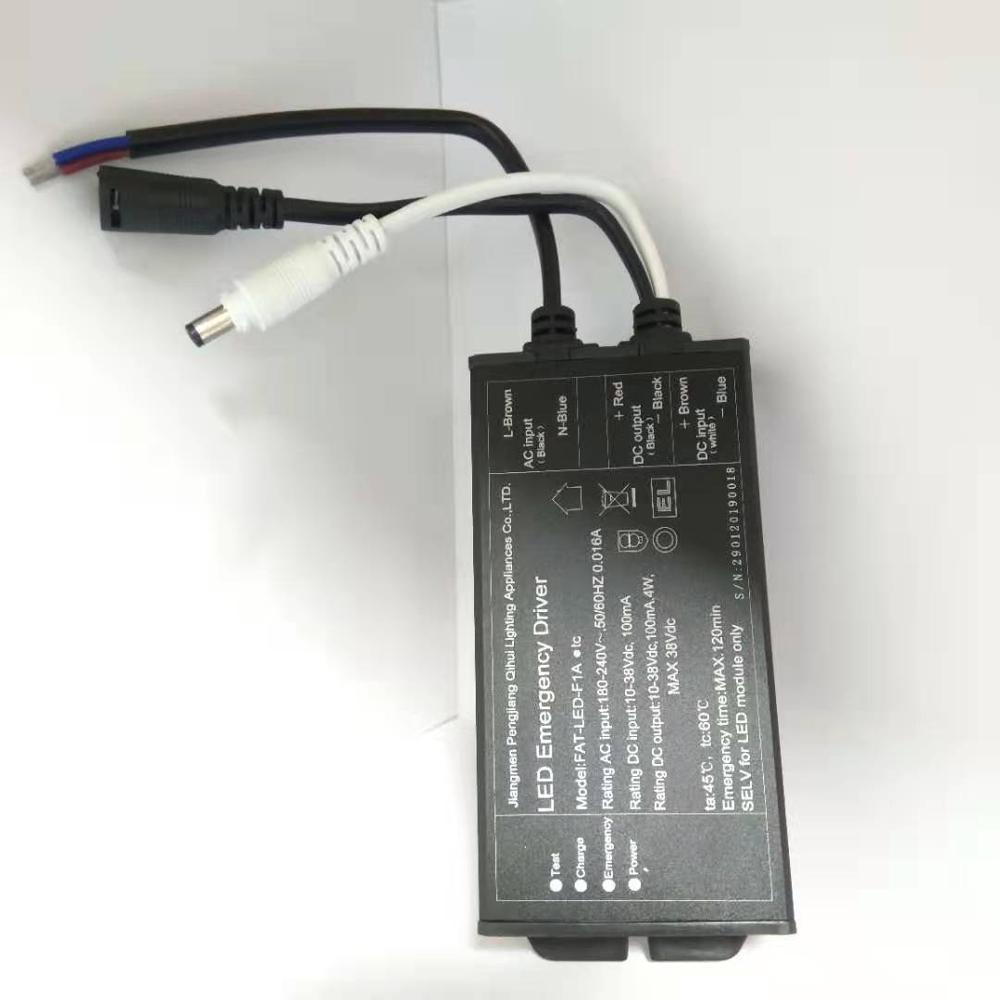

Wiring Arrangement
There are two wire holes from which three wires out as shown in photo. First hole have white and black wire. Black wire is DC output (+ Red & - Black) and White wire is DC input (+ Brown & - Blue). On the other hand, second hole black wire is for AC input (L-Brown& - N-Blue).
LED Emergency Driver
This emergency driver is suitable for all 3-40W LED lamps with external driver. There will be more than 120mins emergency power supply during power outages.It can be used in public places to ensure LED lights work normally even when power failures come which may be caused by fire, earthquake, electric circuit malfunction etc.This emergency driver would not affect its surrounded environment and power when it works.
