- Input Voltage(V):
- AC85-265V
- Lamp Luminous Flux(lm):
- 4500
- CRI (Ra>):
- 80
- Working Temperature(℃):
- -40 - 65
- Working Lifetime(Hour):
- 20000
- Lamp Body Material:
- Aluminum Alloy
- IP Rating:
- IP65
- Certification:
- CCC, CE, RoHS, UL
- Place of Origin:
- Guangdong, China
- Brand Name:
- QQE
- Light Source:
- LED
- product name:
- surface mounted led panel light
- size:
- 600mm*600mm*10mm
- Beam angle:
- 120 Degree
- Color temperature:
- 3000k, 4000k,6000k
- Shape:
- square
- Material:
- Alluminum alloy
- Package qty:
- 8pcs/cn
- LED chip qty:
- 240pcs
- Power factor:
- 0.92 or 0.55
- Advantages:
- factory direct sale
- Item Type:
- Panel Lights
- Color Temperature(CCT):
- cool white , pure white and warm white
- LED Light Source:
- Epistar SMD2835
- Warranty(Years):
- 2
- Lamp Luminous Efficiency(lm/w):
- 100
- Supply Ability:
- 50000 Piece/Pieces per Month surface mounted led panel light
- Packaging Details
- 1pcs/ Inner box, 50pcs /CTN
CTN Size: 770*315*215mm
By Sea Shipment, Full container loading or Less then full container loading Available
- Port
- shanghai, guangdong , shenzhen
- Lead Time:
Quantity(Pieces) 1 - 5000 >5000 Est. Time(days) 5 To be negotiated

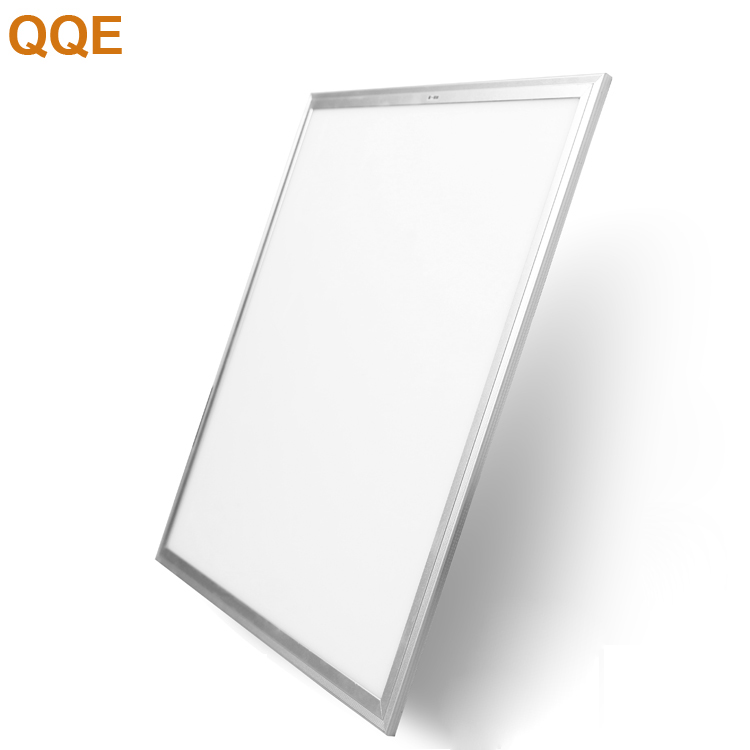

Surface mounted install style and 6000 k, 3000 k, 4000 k color temperature (cct) SMD LED panel light
Product Parameter:
1. Power Factor: ≥0.92
2. Luminous Efficiency: ≥100LM/W
3. Voltage/frequency: AC85-265V/50-60HZ
4. Color Temperature: 2700K-8000K
5. Color Index: ≥80Ra
6. Working Life:20000hours
7. Ambient Temp: -40℃ -60℃
surface mounted led panel light advantages:
1. high quality alluminum alloy die cast light frame.
2. Epistar LED chip: long life span and energy saving . 90% energy saving , low consumption.
3. High quality base won’t get rusty.
4. PC cover light transmittance is above 90% .
5. High CRI about 80RA, high lumen efficiency.
6. Eco-friendly lighting , no mercury , no gas , no IR , healthy light .
7. Easy installation ,high effective constant current driver, stable output, saft and reliable.
8. Wild application, can be used in housing , bar, office , exhibition , sitting room , shopping. Etc….
surface mounted led panel light product details :
surface mounted led panel light CCT comparation :
surface mounted led panel light application :

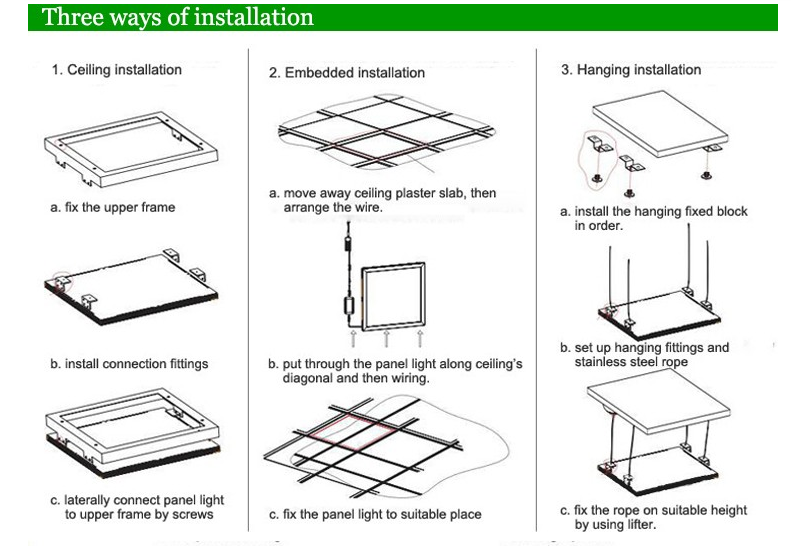

surface mounted led panel light install instruction :
FAQ :
Q1. Are you manufacturer or Trade Company ?
A1. We are OEM & ODM professional LED light Bulb manufacturer , founded in 2009.
Q2 . Is your products the lowest price ?
A2 . We offer EX-factory price , for the same quality , we are much cheaper than other suppliers.
Q3. Is your products all have warranty ?
A3. Yes , all of our products have 2 years warranty .
Q4. What will you do for the damaged products during the transportation ?
A4. All the products are carefully packed and strictly inspected before shipping . if damaged , we can replace.
Q5. Can we design packaging ?
A5. Yes , we can do custom design packing .
Q6. Can we add our logo on products?
A6. Yes , OEM & ODM both available .
Q7. What is the Trade Assurance ?
A7. 100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount .
