Home > Products > Customized 36w 48w Recessed Led Panel Light 600x600 Square Led Panel Lighting

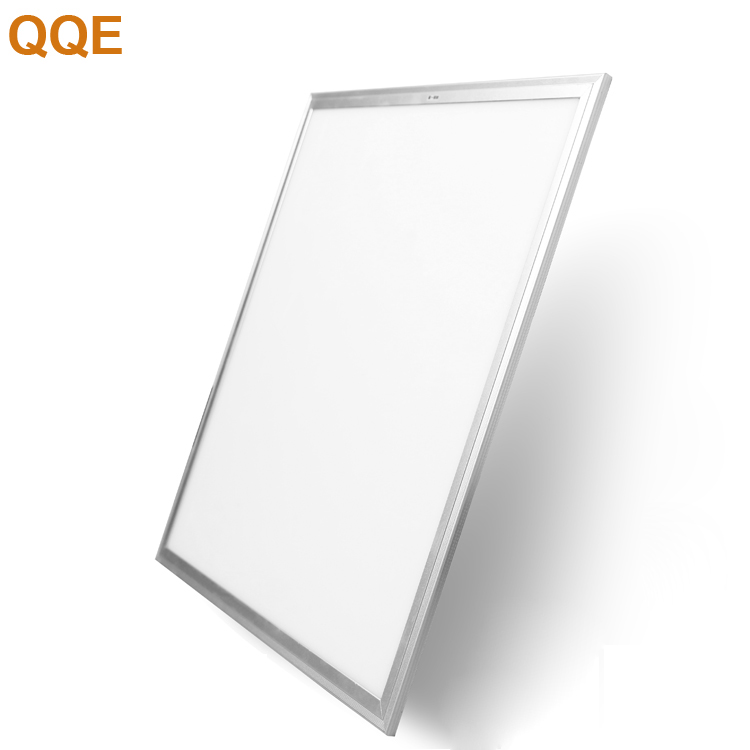

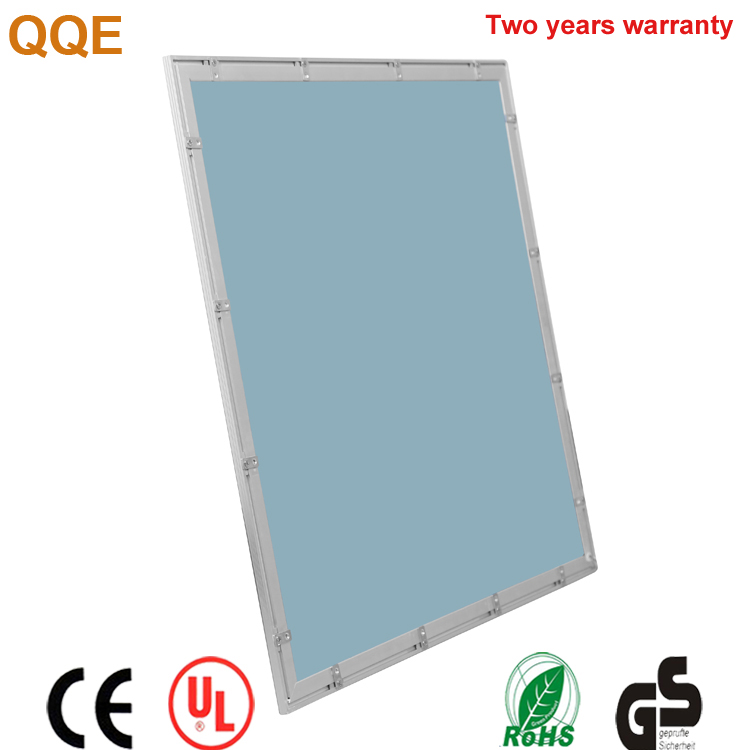

Customized 36w 48w Recessed Led Panel Light 600x600 Square Led Panel Lighting
Click on the image to view the original image
Product： views：2Customized 36w 48w Recessed Led Panel Light 600x600 Square Led Panel Lighting
Branch： QQE
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 15:48
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
AC85-265V
Lamp Luminous Flux(lm):
4500
CRI (Ra>):
80
Working Temperature(℃):
-40 - 65
Working Lifetime(Hour):
20000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP65
Certification:
CCC, CE, CQC, RoHS, SASO, UL
Place of Origin:
Guangdong, China
Brand Name:
QQE
Model Number:
MB-003
Application:
office
Light Source:
LED
Color Temperature(CCT):
cool white , pure white and warm white
Lamp Luminous Efficiency(lm/w):
90-100
product name:
Led Panel Light 600x600
LED Panel Light size:
600mm*600mm*10mm
Beam angle:
120 Degree
Dimmable:
can be customized
Material:
Alluminum+pp
LED chip qty:
240pcs
Power factor:
0.92 or 0.55
Advantages:
Factory Direct Sale
Item Type:
Panel Lights
LED Light Source:
Epistar SMD2835
Warranty(Years):
2
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month LED panel light 600*600
Packaging & Delivery
Packaging Details
1pcs/ Inner box, 50pcs /CTN
CTN Size: 770*315*215mm
By Sea Shipment, Full container loading or Less then full container loading Available
Port
shanghai, guangdong , shenzhen
Lead Time:
Quantity(Pieces)1 - 50005001 - 10000 >10000
Est. Time(days)2530To be negotiated

Customized 36w 48w Recessed Led Panel Light 600x600 Square Led Panel Lighting



Product Parameter:

1. Power Factor: ≥0.92

2. Luminous Efficiency: ≥100LM/W

3. Voltage/frequency: AC85-265V/50-60HZ

4. Color Temperature: 2700K-8000K

5. Color Index: ≥80Ra

6. Working Life:20000hours

7. Ambient Temp: -40℃ -60℃

oled light panel advantages:

1. high quality alluminum alloy die cast light frame.

2. Epistar LED chip: long life span and energy saving . 90% energy saving , low consumption.

3. High quality base won’t get rusty.

4. PC cover light transmittance is above 90% .

5. High CRI about 80RA, high lumen efficiency.

6. Eco-friendly lighting , no mercury , no gas , no IR , healthy light .

7. Easy installation ,high effective constant current driver, stable output, saft and reliable.

8. Wild application, can be used in housing , bar, office , exhibition , sitting room , shopping. Etc….



parameter :



Rated Powerspecifications(mm)LED chip qtyLuminous fluxColor IndexPower factorRadiant angle(°)package qty/ctn
36w600*600*101803350≥800.921208
48w600*600*102404500≥800.921208
80w600*600*104007450≥800.921208
36w1200*300*101803350≥800.921208
72w1200*600*103606550≥800.921208



oled light panel product details  :





oled light panel CCT comparasion :



oled light panel application :



oled light panel install instruction :

























FAQ :

Q1. Are you manufacturer or Trade Company ?

A1. We are OEM & ODM professional LED light Bulb manufacturer , founded in 2009.



Q2 . Is your products the lowest price ?

A2 . We offer EX-factory price , for the same quality , we are much cheaper than other suppliers.



Q3. Is your products all have warranty ?

A3. Yes , all of our products have 2 years warranty .



Q4. What will you do for the damaged products during the transportation ?

A4. All the products are carefully packed and strictly inspected before shipping . if damaged , we can replace.



Q5. Can we design packaging ?

A5. Yes , we can do custom design packing .



Q6. Can we add our logo on products?

A6. Yes , OEM & ODM both available .



Q7. What is the Trade Assurance ?

A7. 100% product quality protection.

   100% product on time shipment protection.

   100% payment protection for your covered amount .
