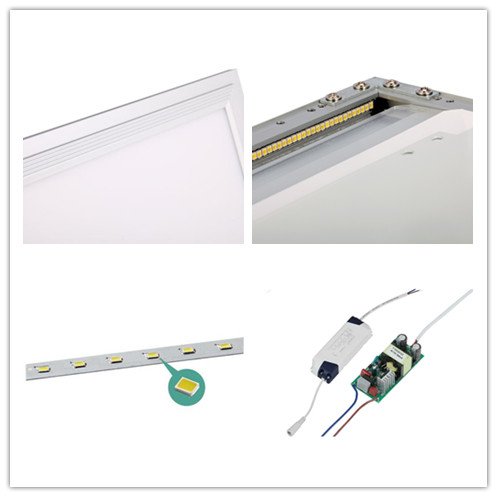

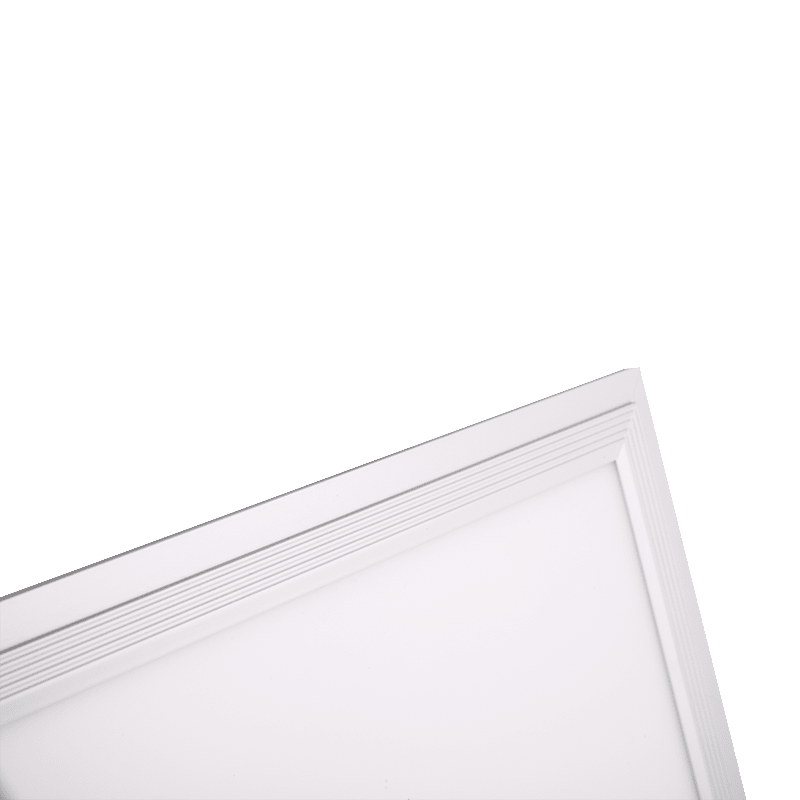

☛ High quality and heat conductivity die-casting aluminum frame with powder coating.
☛ PS light guide plate and diffuser plate, high conductive, soft light effects and no darkness area and no flicker.
☛ Using 2835 higt brightness chips, side light emitting, high efficiency and high CRI.
☛ With constant current isolated LED driver. It's easy to install and manitaining.
☛ Fit for recessed, surface and hanging mounting.
Power factor | 0.5-0.95 | Body material | Aluminum frame |
Luminarie efficacy | 70-100lm/W | Product color | White |
CRI | ≥70/80 | Light guide plate | PMMA/PS |
IP grade | IP20 | Cover material | PS |
Beam angle | 110° | Mounting Location | Ceiling |
Chip brand | Sanan/Epistar/as required | Installation way | Recessed/suspended/ surface |
Driver brand | Voltwell | Anti-electric shock grade | Class 1 |
Color temperature | 3000-6000K | Dimmable | available |
Ambient Temperature range | -20~50℃ | LED module replaceable | Not replaceable |
Lifespan at 25℃ | 20000hrs | Approval | ISO/CE |
Unit net weight | 1.90KG | ||
Inner box | Brown box/white box/gift box | ||
Master caton packing qty | 2pcs/inner box, 5boxs/ctn, total 10pcs/ctn | ||
Master carton size | 680*200*650mm | ||
Gross weight per master carton | 21KG | ||
CONTAINER LOADING QTY | |||
20GP | 318CARTON | 3180 PCS | |
40GP | 636CARTON | 6360 PCS | |
40HQ | 755CARTON | 7550 PCS | |
