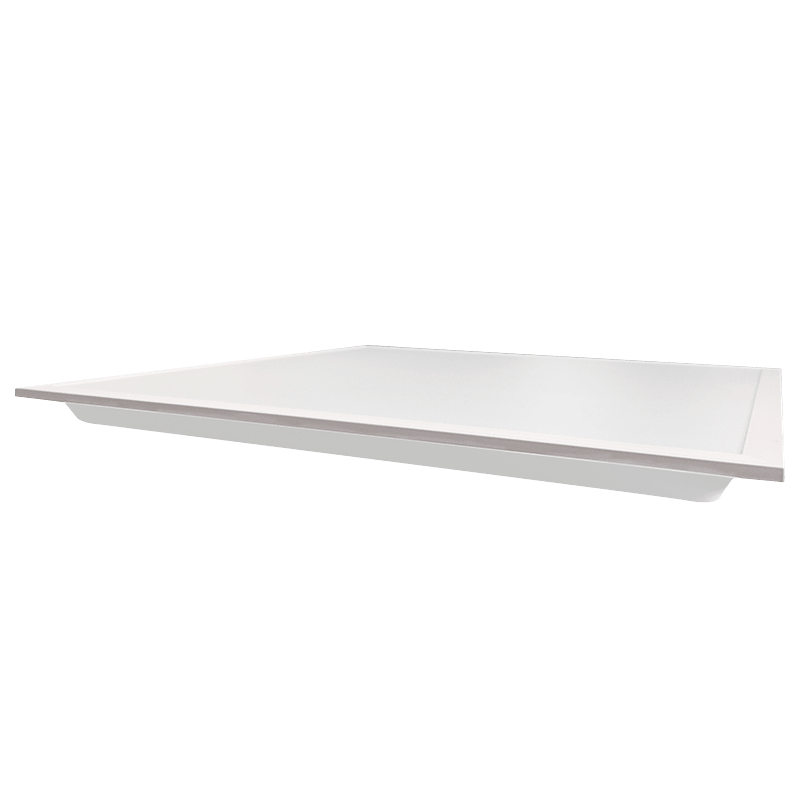

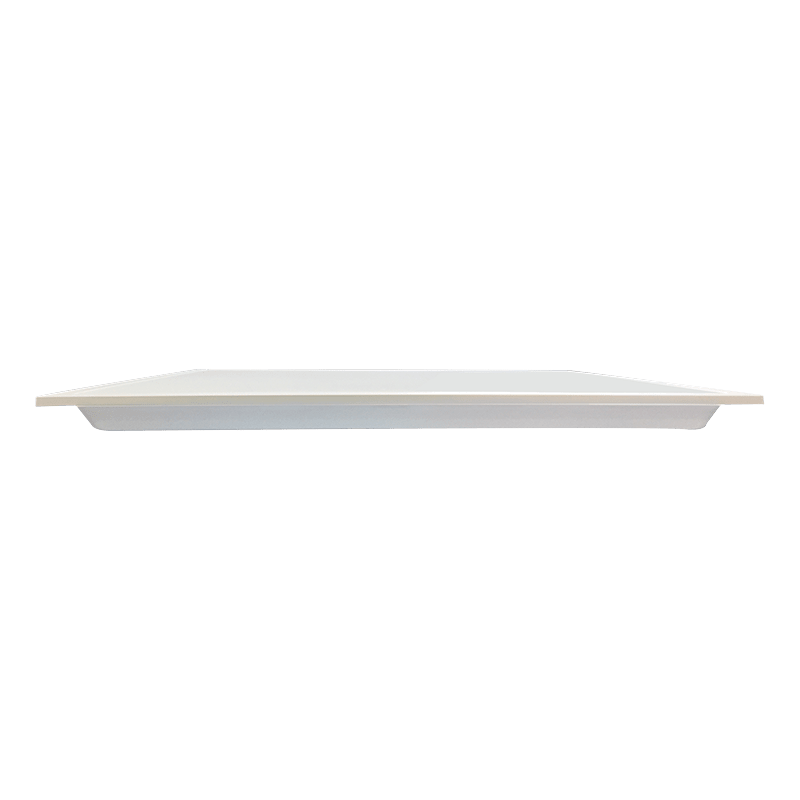

☛ Lamp body with integrated design,housig made by high quality cold-rolled steel sheet,with aluminum frame and PS reflector.Simple design, artistic and elegant.
☛ Surface with electrostatic spraying technics,no color changing and fading after working 30000 hrs.
☛ Using 3030 chips with wide angle lens,straight illuminating with optical diffuser.Light source perfect match with body,bright but can not see the light,with external voltwell driver.High light effect and well-distributed,soft and no glare.
☛ Fit for recessed,surface and hanging mounting.
Power factor | 0.5-0.95 | Body material | Steel + Aluminum frame |
Luminarie efficacy | 70-100lm/W | Product color | White |
CRI | ≥70/80 | Light guide plate | N / A |
IP grade | IP20 | Cover material | PS |
Beam angle | 110° | Mounting Location | Ceiling |
Chip brand | Sanan/Epistar/as required | Installation way | Recessed /suspended /surface |
Driver brand | Voltwell | Anti-electric shock grade | Class 1 |
Color temperature | 3000-6000K | Dimmable | available |
Ambient Temperature range | -20~50℃ | LED module replaceable | Not replaceable |
Lifespan at 25℃ | 20000hrs | Approval | ISO/CE |
Unit net weight | 2.00KG | ||
Inner box | Brown box/white box/gift box | ||
Master caton packing qty | 2pcs/ctn | ||
Master carton size | 650*85*655mm | ||
Gross weight per master carton | 4.5KG | ||
CONTAINER LOADING QTY | |||
20GP | 750CARTON | 1500 PCS | |
40GP | 1550CARTON | 3100 PCS | |
40HQ | 1860CARTON | 3720 PCS | |
