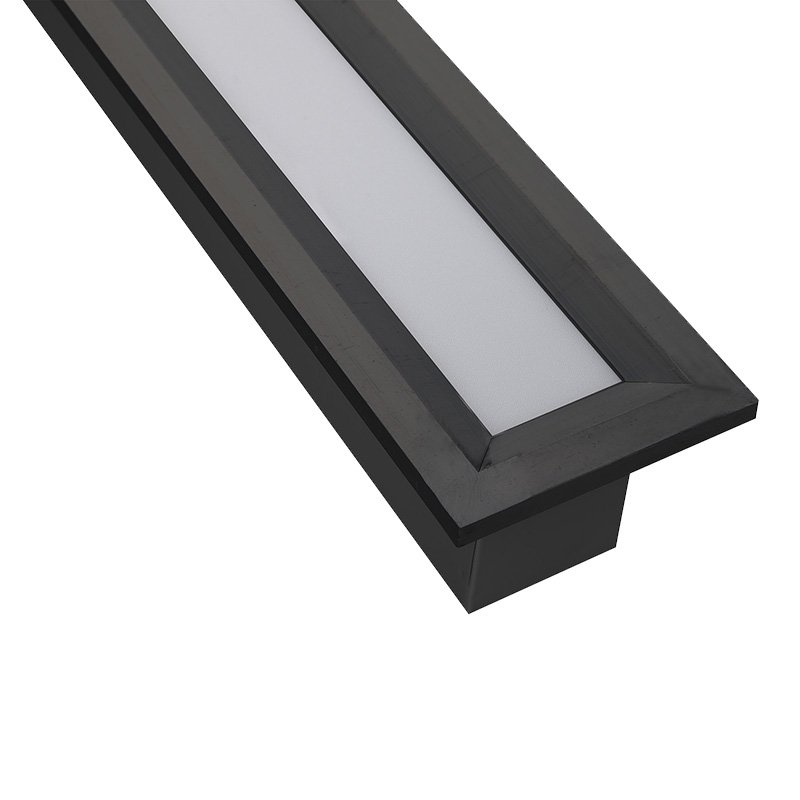

☛ Lamp body with integrated design, housig made by high quality cold-rolled steel sheet, with aluminum frame and PS reflector. Simple design, artistic and elegant.
☛ Surface with electrostatic spraying technics, no color changing and fading after working 30000 hrs.

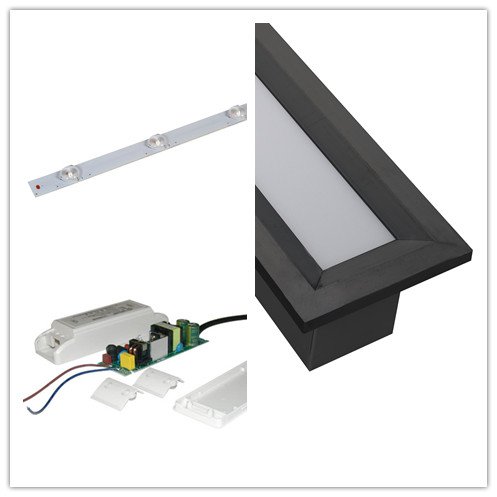

☛ Using 3030 chips with wide angle lens, straight illuminating with optical diffuser.Light source perfect match with body, bright but can not see the light, with external voltwell driver.High light effect and well-distributed, soft and no glare.

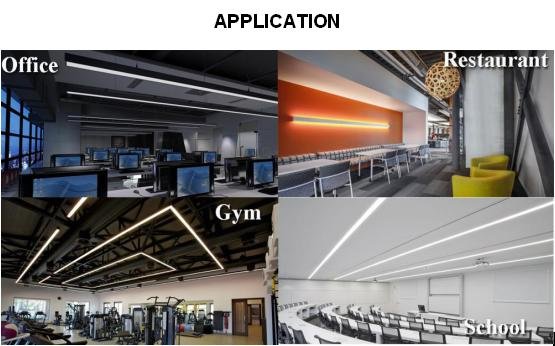

☛ Fit for recessed, surface and hanging mounting.
Power factor | 0.5-0.95 | Body material | Steel + Aluminum frame |
Luminarie efficacy | 70-85lm/W | Product color | White/black |
CRI | ≥70/80 | Light guide plate | N / A |
IP grade | IP20 | Cover material | PS |
Beam angle | 110° | Mounting Location | Ceiling |
Chip brand | Sanan/Epistar/as required | Installation way | Recessed /suspended /surface |
Driver brand | Voltwell | Anti-electric shock grade | Class 1 |
Color temperature | 3000-6000K | Dimmable | available |
Ambient Temperature range | -20~50℃ | LED module replaceable | Not replaceable |
Lifespan at 25℃ | 20000hrs | Approval | ISO/CE |
Unit net weight | 3.80KG | ||
Inner box | Brown box/white box/gift box | ||
Master caton packing qty | 8pcs/ctn | ||
Master carton size | 2450*350*150mm | ||
Gross weight per master carton | 31.5KG | ||
CONTAINER LOADING QTY | |||
20GP | 215CARTON | 1720 PCS | |
40GP | 430CARTON | 3440 PCS | |
40HQ | 523CARTON | 4184 PCS | |
