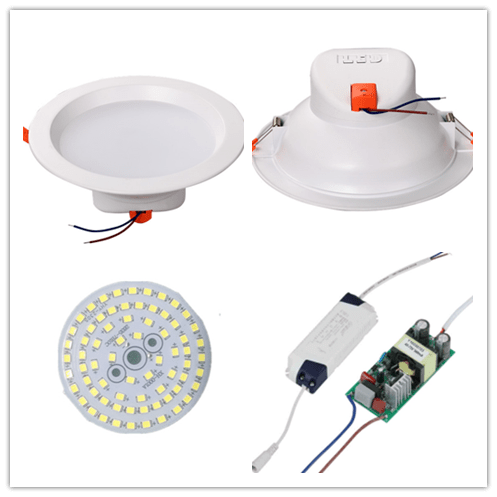

☛ High quality and heat conductivity die-casting aluminum alloy for shell.
☛ Using high brightness 2835 chips, high efficiency and high CRI.
☛ PS diffuser makes the light efficiency soft.
☛ With constant current isolated LED driver. It's easy to install and maintaining.

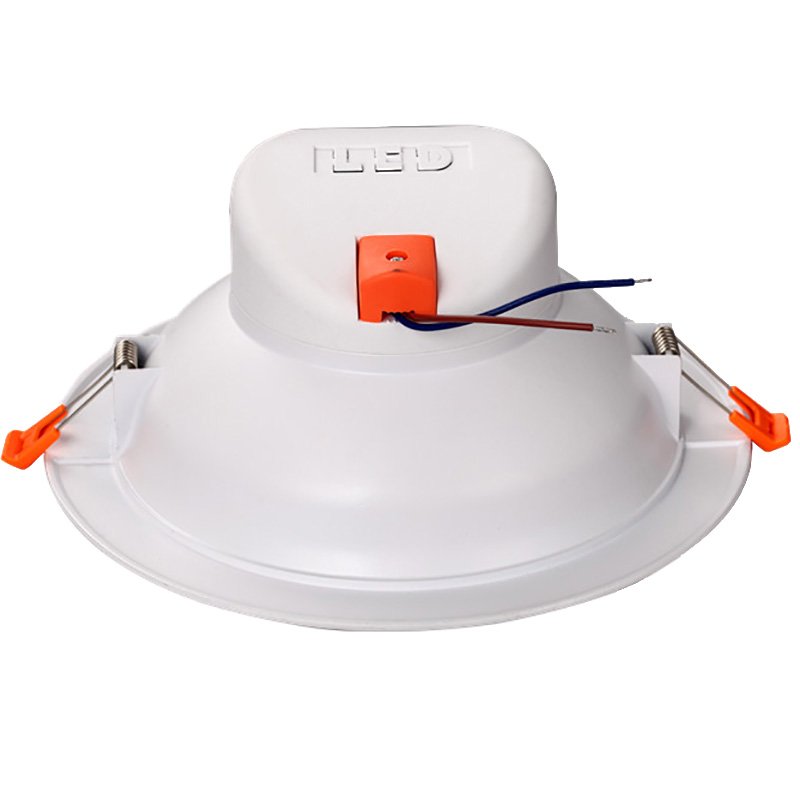

☛ Recessed into the ceiling.
Power factor | 0.5-0.95 | Body material | Aluminum Alloy |
Luminarie efficacy | 70-85lm/W | Product color | White |
CRI | ≥70/80 | Light guide plate | N / A |
IP grade | IP20 | Cover material | PS |
Beam angle | 110° | Mounting Location | Ceiling |
Chip brand | Sanan/Epistar/as required | Installation way | Recessed |
Driver brand | Voltwell | Anti-electric shock grade | Class 1 |
Color temperature | 3000-6000K | Dimmable | available |
Ambient Temperature range | -20~50℃ | LED module replaceable | Not replaceable |
Lifespan at 25℃ | 20000hrs | Approval | ISO/CE |
Unit net weight | 0.35KG | ||
Inner box | Brown box/white box/gift box | ||
Master caton packing qty | 1pcs/inner box, 30boxes/ctn, total 30pcs/ctn | ||
Master carton size | 575*390*370mm | ||
Gross weight per master carton | 12KG | ||
CONTAINER LOADING QTY | |||
20GP | 325CARTON | 9750 PCS | |
40GP | 685CARTON | 20550 PCS | |
40HQ | 805CARTON | 24150 PCS | |
