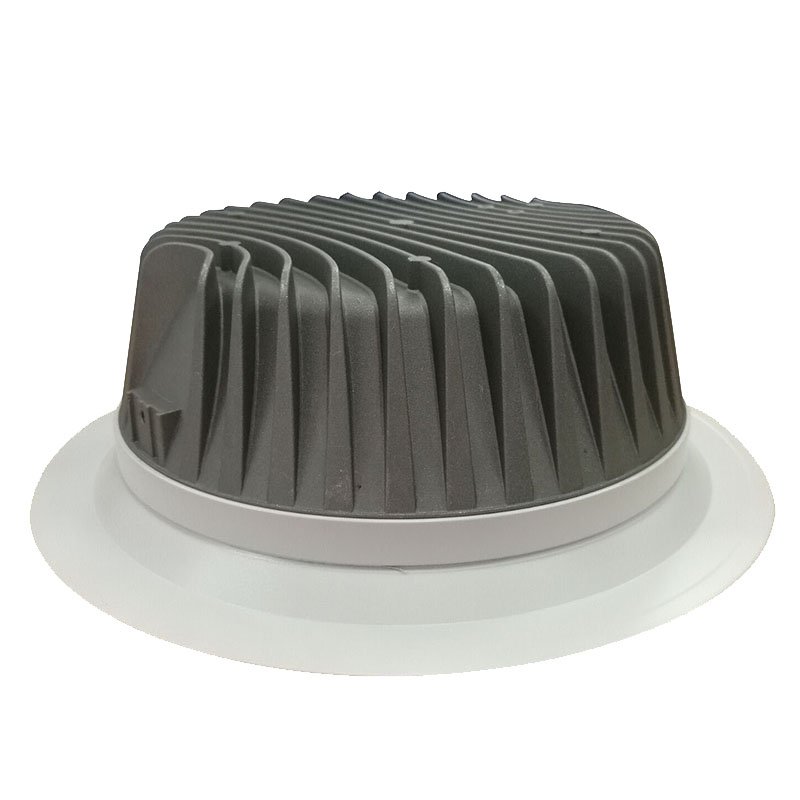

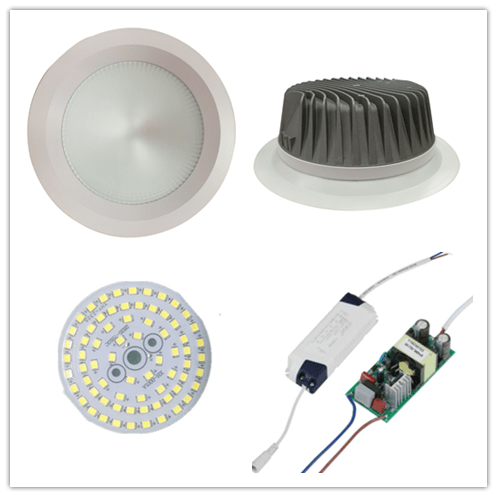

☛ High quality and heat conductivity die-casting aluminum alloy for shell.
☛ Using high brightness 2835 chips, high efficiency and high CRI.

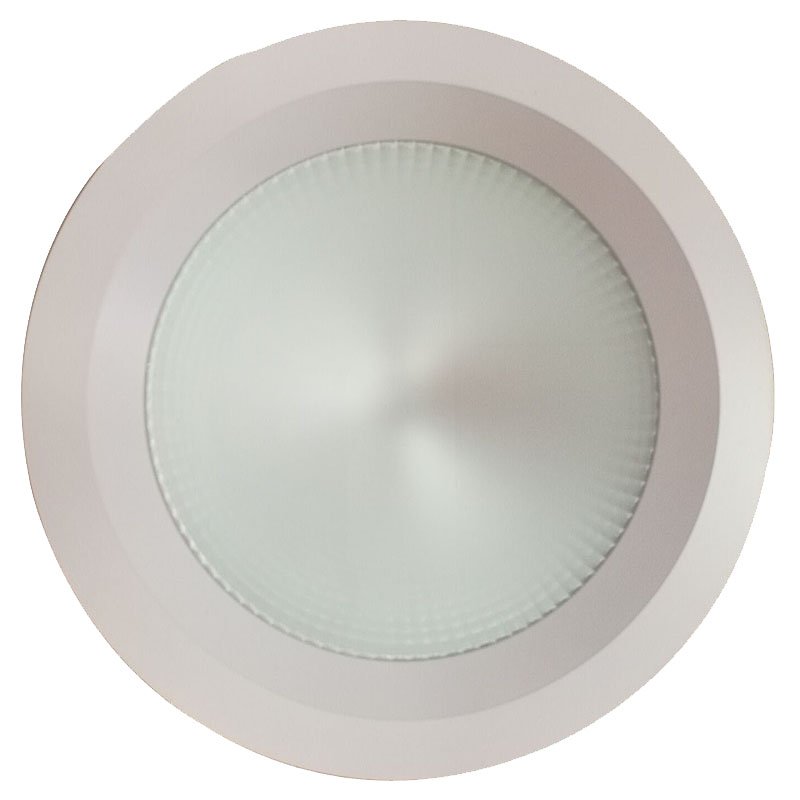

☛ PS diffuser makes the light efficiency soft.
☛ With constant current isolated LED driver. It's easy to install and maintaining.
☛ Recessed into the ceiling.
Power factor | 0.5-0.95 | Body material | Aluminum Alloy |
Luminarie efficacy | 70-85lm/W | Product color | White |
CRI | ≥70/80 | Light guide plate | N / A |
IP grade | IP20 | Cover material | PS |
Beam angle | 110° | Mounting Location | Ceiling |
Chip brand | Sanan/Epistar/as required | Installation way | Recessed |
Driver brand | Voltwell | Anti-electric shock grade | Class 1 |
Color temperature | 3000-6000K | Dimmable | available |
Ambient Temperature range | -20~50℃ | LED module replaceable | Not replaceable |
Lifespan at 25℃ | 20000hrs | Approval | ISO/CE |
Unit net weight | 0.58KG | ||
Inner box | Brown box/white box/gift box | ||
Master caton packing qty | 1pcs/inner box, 30boxes/ctn, total 30pcs/ctn | ||
Master carton size | 510*350*450mm | ||
Gross weight per master carton | 18.6KG | ||
CONTAINER LOADING QTY | |||
20GP | 335CARTON | 10050 PCS | |
40GP | 710CARTON | 21300 PCS | |
40HQ | 830CARTON | 24900 PCS | |
