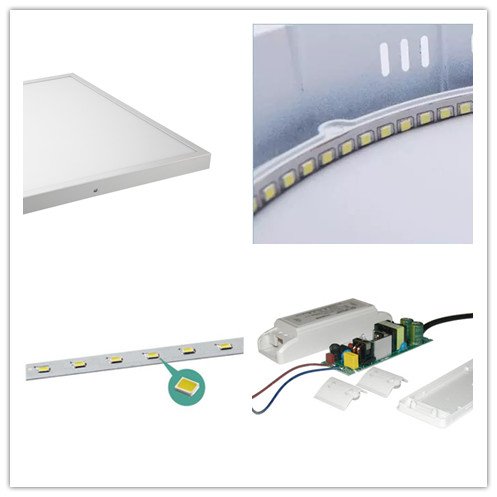

☛ High quality and heat conductivity die-casting aluminum frame with powder coating.
☛ PS light guide plate and diffuser plate, high conductive, soft light effects and no darkness area and no flicker.
☛ Using 2835 higt brightness chips, side light emitting, high efficiency and high CRI.
☛ With constant current isolated LED driver. It's easy to install and manitaining.
☛ Fit for recessed,surface and hanging mounting.
Power factor | 0.5-0.95 | Body material | Aluminum frame |
Luminarie efficacy | 70-90lm / W | Product color | White |
CRI | ≥70/80 | Light guide plate | PMMA / PS |
IP grade | IP20 | Cover material | PS |
Beam angle | 110° | Mounting Location | Ceiling |
Chip brand | Sanan/Epistar/ asrequired | Installation way | Recessed /suspended/surface |
Driver brand | Voltwell | Anti-electric shock grade | Class 1 |
Color temperature | 3000-6000k | Dimmable | available |
Ambient Temperature range | -20~50℃ | LED module replaceable | Not replaceable |
Lifespan at 25℃ | 20000hrs | Approval | ISO/CE |
Unit net weight | 2.5KG | ||
Inner box | Brown box/ white box /gift box | ||
Master caton packing qty | 1pc/ inner box, 5boxs/ctn, total 5 pcs/ ctn | ||
Master carton size | 610*220*610mm | ||
Gross weight per master carton | 14KG | ||
CONTAINER LOADING QTY | |||
20GP | 340 CARTON | 1700 PCS | |
40GP | 680 CARTON | 3400 PCS | |
40HQ | 825 CARTON | 4125 PCS | |
