Click on the image to view the original image

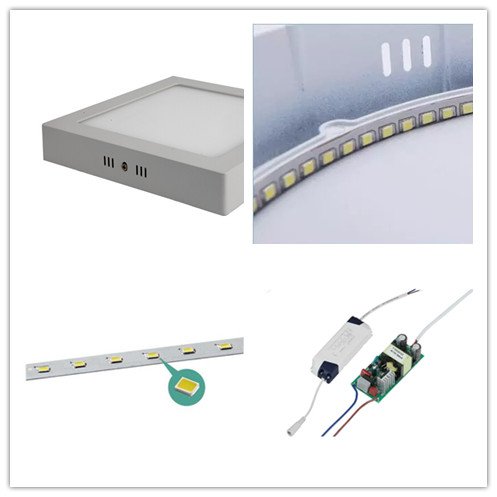

☛ High quality and heat conductivity die-casting aluminum frame with powder coating.
☛ With Mitsubishi light guide plate and imported diffuser plate, high conductive, soft light effects,no darkness area and no flicker.
☛ Using 2835 higt brightness chips, side light emitting, high efficiency and high CRI.
☛ With constant current isolated LED driver. It's easy to install and manitaining.

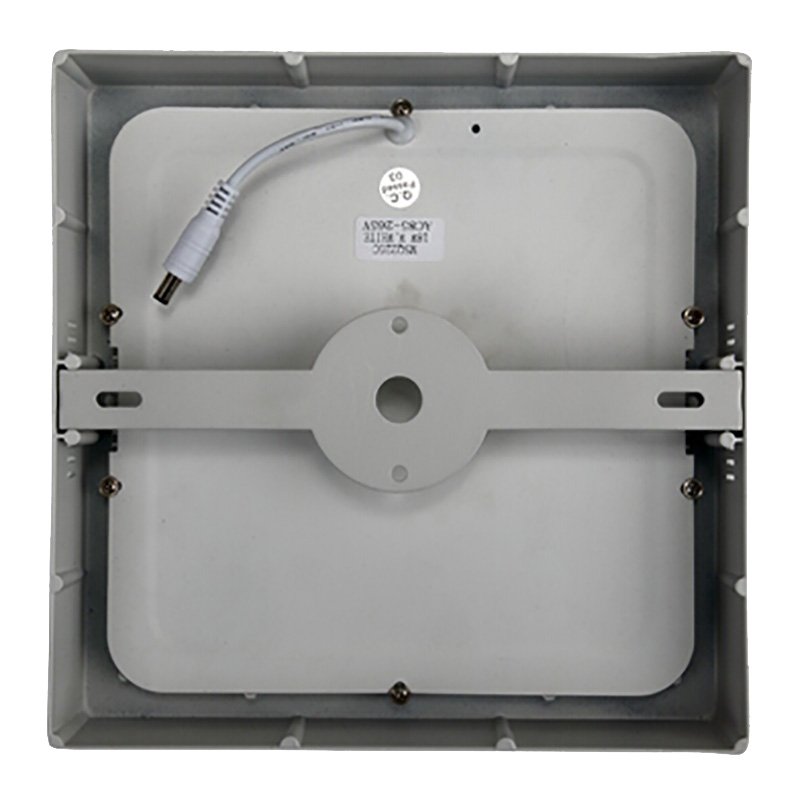

☛ Fit for recessed,surface and hanging mounting.
Power factor | 0.5-0.95 | Body material | Aluminum alloy |
Luminarie efficacy | 70-90lm / W | Product color | White |
CRI | ≥70/80 | Light guide plate | PMMA / PS |
IP grade | IP20 | Cover material | PS |
Beam angle | 110° | Mounting Location | Ceiling |
Chip brand | Sanan/Epistar/ asrequired | Installation way | Surface |
Driver brand | Voltwell | Anti-electric shock grade | Class 1 |
Color temperature | 3000-6000k | Dimmable | available |
Ambient Temperature range | -20~50℃ | LED module replaceable | Not replaceable |
Lifespan at 25℃ | 20000hrs | Approval | ISO/CE |
Unit net weight | 0.8KG | ||
Inner box | Brown box/ white box /gift box | ||
Master caton packing qty | 1pc/ inner box, 5boxs/ctn, total 5 pcs/ ctn | ||
Master carton size | 562*535*295mm | ||
Gross weight per master carton | 21.6KG | ||
CONTAINER LOADING QTY | |||
20GP | 310 CARTON | 6200 PCS | |
40GP | 620 CARTON | 12400 PCS | |
40HQ | 750 CARTON | 15000 PCS | |
