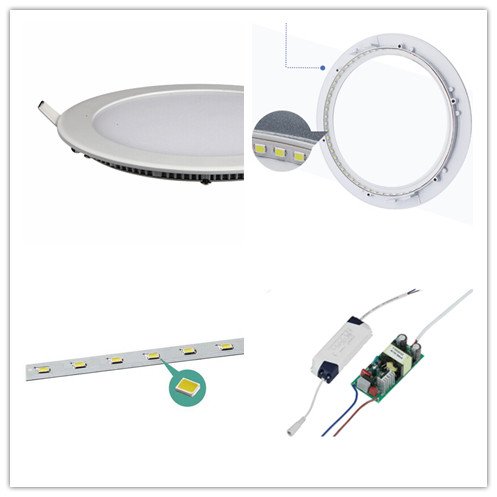

☛ High quality and heat conductivity die-casting aluminum frame with powder coating.
☛ With Mitsubishi light guide plate and imported diffuser plate, high conductive, soft light effects,no darkness area and no flicker.
☛ Using 2835 higt brightness chips, side light emitting, high efficiency and high CRI.
☛ With constant current isolated LED driver. It's easy to install and manitaining.
☛ Fit for recessed,surface and hanging mounting.
Power factor | 0.5-0.95 | Body material | Aluminum alloy |
Luminarie efficacy | 70-90lm / W | Product color | White |
CRI | ≥70/80 | Light guide plate | PMMA / PS |
IP grade | IP20 | Cover material | PS |
Beam angle | 110° | Mounting Location | Ceiling |
Chip brand | Sanan/Epistar/ asrequired | Installation way | Recessed |
Driver brand | Voltwell | Anti-electric shock grade | Class 1 |
Color temperature | 3000-6000k | Dimmable | available |
Ambient Temperature range | -20~50℃ | LED module replaceable | Not replaceable |
Lifespan at 25℃ | 20000hrs | Approval | ISO/CE |
Unit net weight | 0.45KG | ||
Inner box | Brown box/ white box /gift box | ||
Master caton packing qty | 1pc/ inner box, 5boxs/ctn, total 5 pcs/ ctn | ||
Master carton size | 460*290*420mm | ||
Gross weight per master carton | 12.3KG | ||
CONTAINER LOADING QTY | |||
20GP | 500 CARTON | 10000 PCS | |
40GP | 1000 CARTON | 20000 PCS | |
40HQ | 1200 CARTON | 24000 PCS | |
