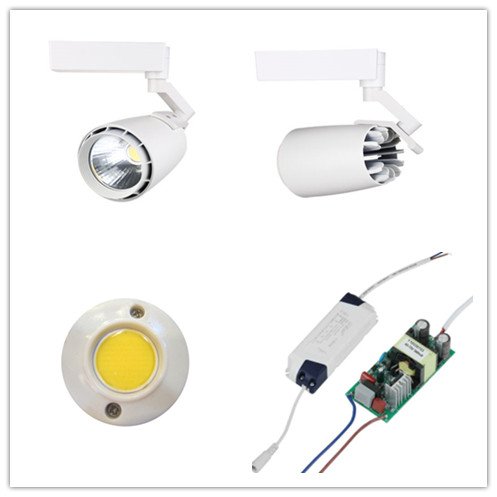

☛ High quality and heat conductivity die-casting aluminum alloy for shell.
☛ Using COB chips, high efficiency and high CRI.
☛ With glass cover makes it bright.
☛ With constant current isolated LED driver. It's easy to install and maintaining.
☛ Using track to fix to the ceiling.
Power factor | 0.5-0.95 | Body material | Aluminum alloy |
Luminarie efficacy | 70-80lm / W | Product color | White / Black |
CRI | ≥70/80 | Light guide plate | N / A |
IP grade | IP20 | Cover material | Glass |
Beam angle | 23° | Mounting Location | Ceiling |
Chip brand | Sanan/Epistar/ asrequired | Installation way | Surface mounted |
Driver brand | Voltwell | Anti-electric shock grade | Class 1 |
Color temperature | 3000-6000k | Dimmable | available |
Ambient Temperature range | -20~50℃ | LED module replaceable | Not replaceable |
Lifespan at 25℃ | 20000hrs | Approval | ISO/CE |
Unit net weight | 0.68KG | ||
Inner box | Brown box/ white box /gift box | ||
Master caton packing qty | 1pc/ inner box, 12boxs/ctn, total 12 pcs/ ctn | ||
Master carton size | 470*350*430mm | ||
Gross weight per master carton | 9.66KG | ||
CONTAINER LOADING QTY | |||
20GP | 380 CARTON | 4560 PCS | |
40GP | 810 CARTON | 9720 PCS | |
40HQ | 950 CARTON | 11400 PCS | |
