☛ High quality and heat conductivity aluminum with PC cover.

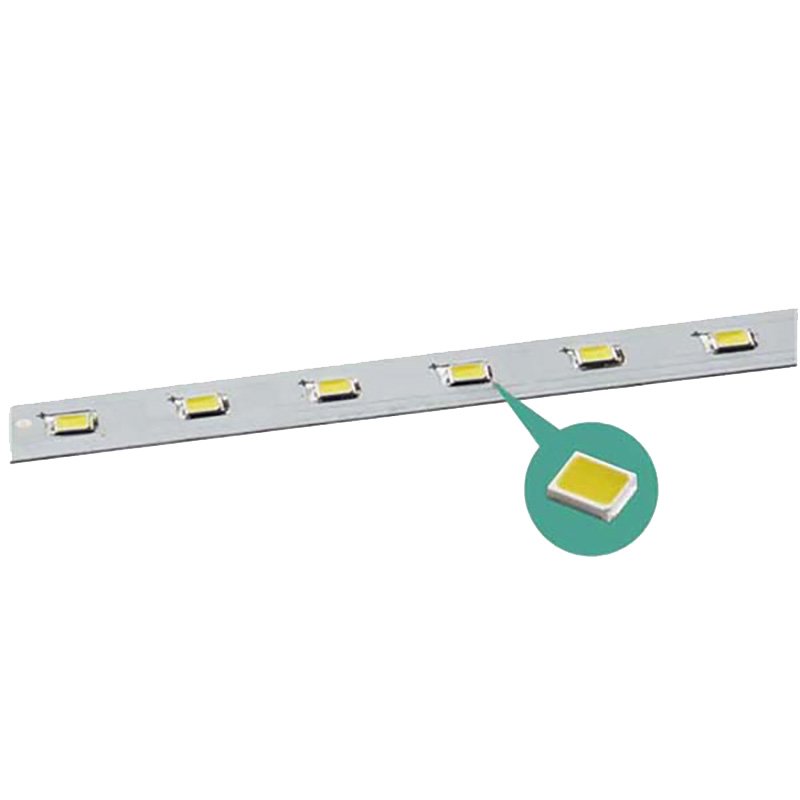

☛ Using 2835 higt brightness chips, high efficiency and high CRI.
☛ With constant current isolated LED driver.
☛ Matching LED grille lighting fixture and LED lighting fixture to use.
Power factor | 0.5-0.95 | Body material | Aluminum |
Luminarie efficacy | 70-100lm / W | Product color | / |
CRI | ≥70/80 | Light guide plate | / |
IP grade | IP20 | Cover material | PC |
Beam angle | 110° | Mounting Location | / |
Chip brand | Sanan/ Epistar/ asrequired | Installation way | / |
Driver brand | Voltwell | Anti-electric shock grade | Class 1 |
Color temperature | 3000-6000k | Dimmable | / |
Ambient Temperature range | -20~50℃ | LED module replaceable | Not replaceable |
Lifespan at 25℃ | 20000hrs | Approval | ISO/CE |
Unit net weight | 0.27KG | ||
Inner box | PE Foam | ||
Master caton packing qty | 25 pcs/ ctn | ||
Master carton size | 1240*220*225mm | ||
Gross weight per master carton | 7.65KG | ||
CONTAINER LOADING QTY | |||
20GP | 450 CARTON | 11250 PCS | |
40GP | 950 CARTON | 23750 PCS | |
40HQ | 1110 CARTON | 27750 PCS | |
