☛Control mode:use smart phone APP,Pad,remote control,panel switch,voice control etc. to achieve smart control by wireless connection.
☛Bluetooth MESH control is able to switch on&off，timing,adjust brightness by wireless workgroup,control by demand to achieve energy saving.
☛ Color temperature and brightness can be adjusted by demand,intelligent light change,protect eyes deeply.
This item with speech control,match with WIFI convert Bluetooth gateway,can be remote control.
Power（W） | 36.0W±1W |
Power factor | 0.9 |
Input voltage（V） | AC85-265V |
Input current（A） | 0.185A |

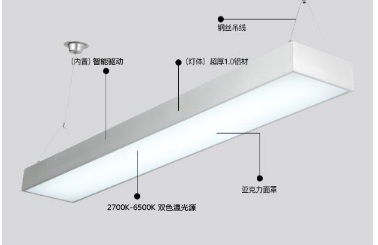

| Driver | Internal driver/isolated |
| Standby power dissipation | ≤0.5W |
| Control model | Bluetooth PWM,Common anode,Quad output |
| Control distance | 30-60M |
| Bluetooth edition | BLE 4.2，Mesh |
| Bluetooth communication standard protocol | IEEE 802.15 |
Joint quantity | Mesh automatic network 10000PCS,Group network:8 groups,each group 200PCS 8 Groups,200pcs/group |
| System compatibility | iOS 8.0 or aboveAndroid 4.3 or above |
| Illuminant &quantity | |
LED type | 2835+3528 |
| Beam angle | 110° |
| Color temperature | 2700-6500K changeable |
| Total luminous flux | 0-3000Lm adjustable |
| Dimming range | 1-100% |
| Light distribution curve |  |
| Dielectric strengt | 500V |
| Leakage current | 5mA |
| Isolated resistanc | ≥2MΩ |
| Protection class | IP20 |
| Vibration test | Light up and slap working palform 5 times |
| Working environmen | Normal temperature/non-closed environment |
| Approval | CCC / CE / FCC |
Housing material | aluminum | ||
Cover material | PC cover | ||
N.W/G.W | Kg / kg | ||
Product size | 1200X200X60mm | ||
packing size | mm | ||
PCS/CTN | 10pcs/ctn | ||
CONTAINER LOADING QTY | |||
20GP | 750CARTON | 1500 PCS | |
40GP | 1550CARTON | 3150 PCS | |
40HQ | 1860CARTON | 3700 PCS | |
