☛Control mode:use smart phone APP,Pad,remote control,panel switch,voice control etc. to achieve smart control by wireless connection.
☛Bluetooth MESH control is able to switch on&off，timing,adjust brightness by wireless workgroup,control by demand to achieve energy saving.
☛ Color temperature and brightness can be adjusted by demand,intelligent light change,protect eyes deeply.
☛ Combine with phone APP,music play,RGB light dance with the music rhythm,achieve good lighting atmosphere.
This item with speech control,match with WIFI convert Bluetooth gateway,can be remote control.
Smart home environment 24hrs light color transfermation diagram
Power（W） | 10.0W±1W |
Power factor | 0.5 |
Input voltage（V） | AC85-265V |
Input current（A） | 0.158A |
| Driver | Internal driver/isolated |
| Standby power dissipation | ≤0.5W |
| Control model | Bluetooth PWM,Common anode,Quad output |
| Control distance | 30-60M |
| Bluetooth edition | BLE 4.2，Mesh |
| Bluetooth communication standard protocol | IEEE 802.15 |
Joint quantity | Mesh automatic network 10000PCS,Group network:8 groups,each group 200PCS 8 Groups,200pcs/group |
| System compatibility | iOS 8.0 or aboveAndroid 4.3 or above |
| Illuminant &quantity | |
LED type | RGB 5050 + 3000K 2835 |
| Beam angle | 120° |
| Color temperature | 3000K+RGB changeable |
| Total luminous flux | 0-2000Lm adjustable |
| Dimming range | 1-100% |
| Light distribution curve |  |
| Dielectric strengt | 500V |
| Leakage current | 5mA |
| Isolated resistanc | ≥2MΩ |
| Protection class | IP20 |
| Vibration test | Light up and slap working palform 5 times |
| Working environmen | Normal temperature/non-closed environment |
| Approval | CCC / CE / FCC |
Housing material | Cold-rolled plate with coating | ||
Cover material | PC cover | ||
N.W/G.W | 6.2Kg / 5.3 kg | ||
Product size | φ280X90mm | ||

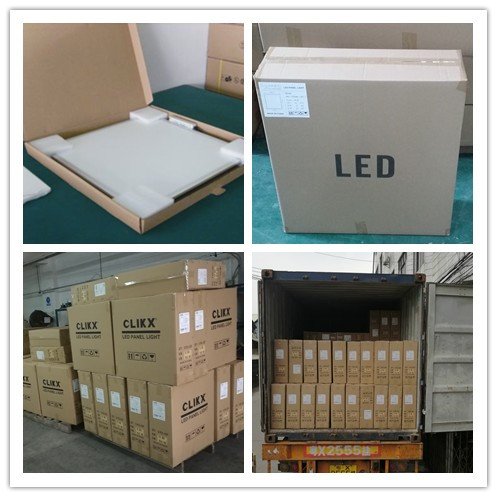

packing size | 620*380*380 mm | ||
PCS/CTN | 5pcs/ctn | ||
CONTAINER LOADING QTY | |||
20GP | 750CARTON | 1500 PCS | |
40GP | 1550CARTON | 3150 PCS | |
40HQ | 1860CARTON | 3700 PCS | |
