| Model | JC03218A-36W 72W 108W 144W 180W 216W 252W 288W 324W |
| Watt | 36W/72W/108W/144W/180W/216W/252W/288W/324W |
| Voltage | 9~32V DC |
| LED | 3W Cree LED |
| Material | Die-cast aluminum housing, PC lens |
| Size | 7" 12" 17" 23" 28" 33.5" 39" 44" 50" |
| Raw Lumens | 86 LM/LED |
| Optional Beam | Spot/Flood/Combo |
| Dustproof & Waterproof Rating | IP67 |
| Color Temperature | 6000K |
| Working Environment | -40°C~+80°C |
| Certificates | CE, RoHS, IP67, EMC |
| Warranty | 1 year |
| Life Time | More than 30,000 hours |

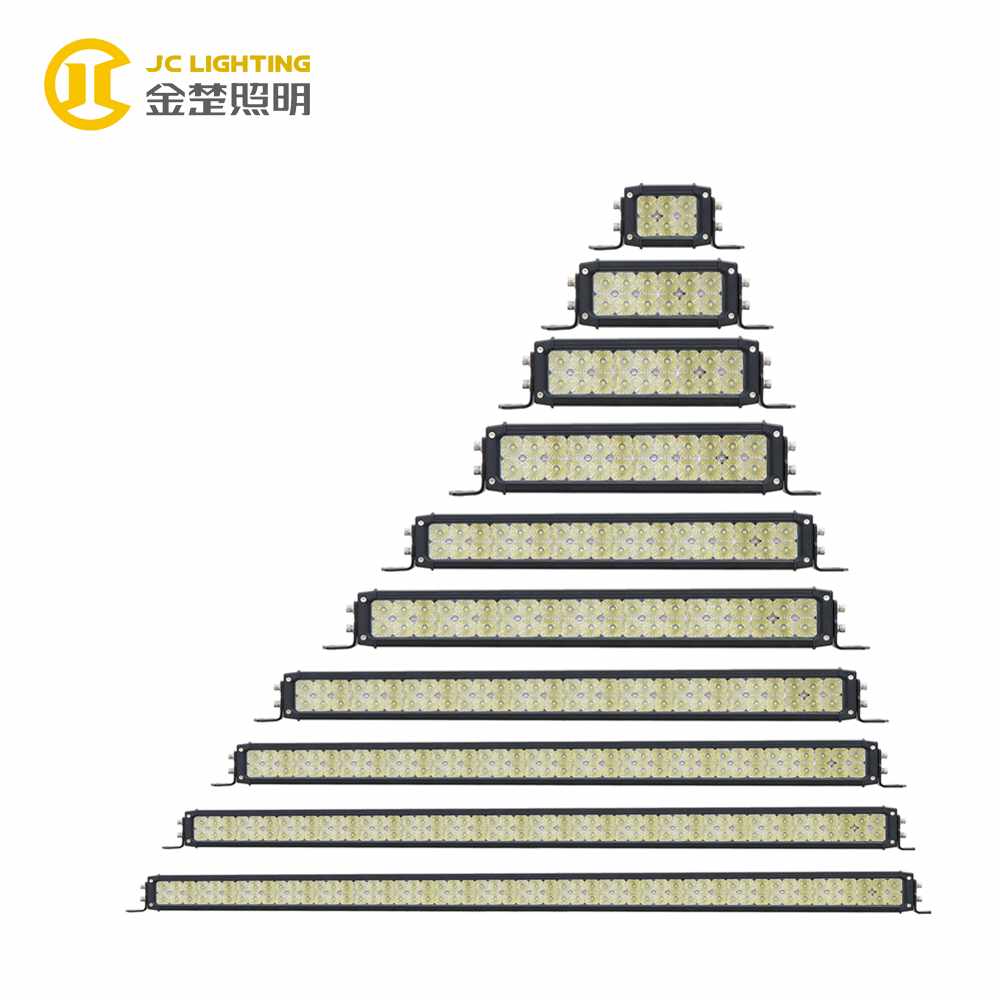

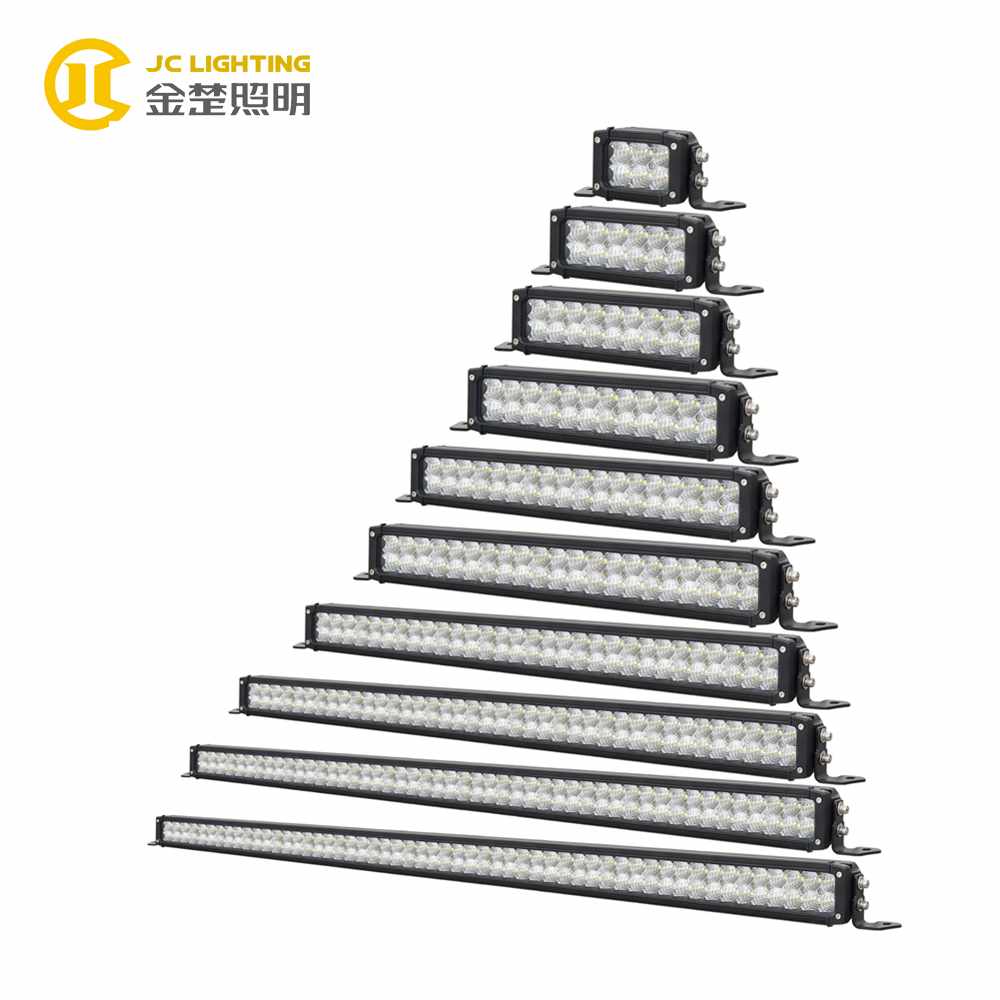

JC03218A LED Light Bar Series
| MODEL | INCH | LED (PCS) | WATT | SIZE (MM) | IMPUT VOLTS |
| JC03218A-36W | 7" | 12 | 36W | 162*70*60 | 9-32V |
| JC03218A-72W | 12" | 24 | 72W | 300*70*60 | 9-32V |
| JC03218A-108W | 18" | 36 | 108W | 438*70*60 | 9-32V |
| JC03218A-144W | 23" | 48 | 144W | 576*70*60 | 9-32V |
| JC03218A-180W | 28" | 60 | 180W | 714*70*60 | 9-32V |
| JC03218A-216W | 33.5" | 72 | 216W | 852*70*60 | 9-32V |
| JC03218A-252W | 39" | 84 | 252W | 990*70*60 | 9-32V |
| JC03218A-288W | 45" | 96 | 288W | 1128*70*60 | 9-32V |
| JC03218A-324W | 50" | 108 | 324W | 1266*70*60 | 9-32V |
> Build Quality
This kind of double row light bar use tough GE PC lens from USA, die-cast aluminum housing with fine craft and great heat sink design.
It’s fitted to rugged vehicles that often go in rugged places.
> Three mounting Options
With three mounting options (end mounting, bottom mounting, side telescopic mounting),
you can manually mount the light bar on your vehicle without effort.
> Performance
Combined with high intensity Cree LED chip, the light is very bright, which has better performance than Epistar led light bar.
This kind of die-cast aluminum housing led light bar.
> Value for Money
The lamp is sold directly from our factory. The light price is very reasonable.
When you get the light bar, you will find the light is great value according to its excellent material and amazing sealed technology.
