| Model | JC10118A-20W 40W 60W 100W 120W 180W 240W 260W 300W |
| Watt | 20W 40W 60W 100W 120W 180W 240W 260W 300W |
| Voltage | 9~60V DC |
| LED | 10W Cree XM-L2 LED |
| Material | Die-cast aluminum housing, PC lens |
| Size | 5"/8"/11"/17"/20"/30"/39"/42"/49" |
| Raw Lumens | 86 LM/LED |
| Optional Beam | Spot/Flood/Combo |
| Dustproof & Waterproof Rating | IP67 |
| Color Temperature | 6000K |
| Working Environment | -40°C~+80°C |
| Certificates | CE, RoHS, IP67, EMC |
| Warranty | 1 year |
| Life Time | More than 30,000 hours |
For similar products, please go to JC10118S series, JC10118B series.

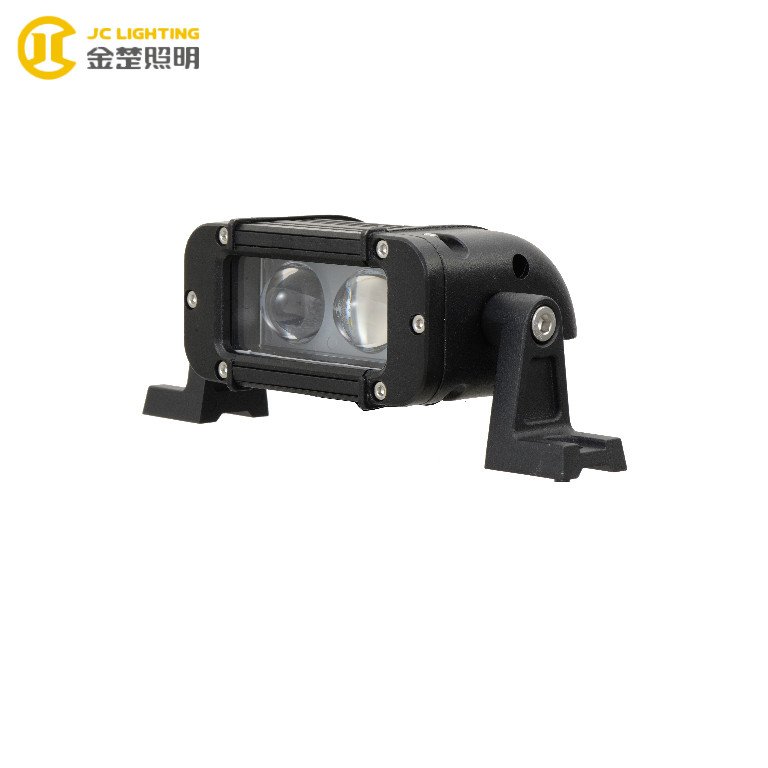

JC10118A LED Light Bar Series
MODEL | INCH | LED (PCS) | WATT | RAW LUMANS | EFFECTIVE LUMANS | SIZE (MM) | AMPS /12V | INPUT VOLTS | QTY /CTN |
| JC10118A-20W | 5" | 2 | 20W | 1720LM | 1319LM | 118*60*90 | 1.28 | 9-60V | 20 |
| JC10118A-40W | 8" | 4 | 40W | 3440LM | 2640LM | 198*60*90 | 2.56 | 9-60V | 10 |
| JC10118A-60W | 11" | 6 | 60W | 5160LM | 3956LM | 278*60*90 | 3.83 | 9-60V | 10 |
| JC10118A-100W | 17" | 10 | 100W | 8600LM | 6594LM | 438*60*90 | 6.39 | 9-60V | 6 |
| JC10118A-120W | 20" | 12 | 120W | 10320LM | 7912LM | 518*60*90 | 7.67 | 9-60V | 6 |
| JC10118A-180W | 30" | 18 | 180W | 15480LM | 11868LM | 758*60*90 | 11.5 | 9-60V | 6 |
| JC10118A-240W | 39" | 24 | 240W | 20640LM | 15824LM | 998*60*90 | 15.33 | 9-60V | 4 |
| JC10118A-260W | 42" | 26 | 260W | 22360LM | 17140LM | 1078*60*90 | 16.61 | 9-60V | 4 |
| JC10118A-300W | 49" | 30 | 300W | 25800LM | 19780LM | 1238*60*90 | 19.17 | 9-60V | 2 |
> High power super bright 10W Cree LED chips from USA, energy saving and longer life.
> 3mm GE brand PC from USA, same material as high speed rail windshield.
> High quality die-cast aluminum housing, durable to withstand any harsh conditions.
> Advanced Vertical fins design for maximum heat dissipation.
> Two types of mounting brackets for optional: bottom mounting bracket and side mounting bracket.
> The high performance of tight waterproof, dust-proof, rust-proof, shockproof.
> Aging test 8 hours for LED bull bar light.
> Full range beam pattern for you to choose--spot beam, flood beam and combo beam.
> CE, RoHS, IP67, EMC approved.
> Extremely long life time of LED lightbar: More than 30,000 hours.
> 1 year warranty, free replacement for defective products.
PS: LED lightbar support OEM/ODM.
