| Model | JC10218D-40W 80W 120W 200W 240W |
| Watt | 40W 80W 120W 200W 240W |
| Voltage | 9~60VDC |
| LED | 10W(CreeXM-L2 LED) |
| Material | Die-cast aluminum housing,PC lens |
| Size | 5'' 8'' 11'' 17'' 20'' |
| Raw Lumens | 86LM/W |
| Optional Beam | Spot/Flood/Combo |
| Dustproof&Waterproof Rating | IP67 |
| Color Temperature | 6000K |
| Working Environment | -40°C~+80°C |
| Certificates | CE,RoHS,IP67,EMC |
| Warranty | 1year |
| LifeTime | More than 30,000hours |
For similar products, please go to JC10118S series, JC10118A series.

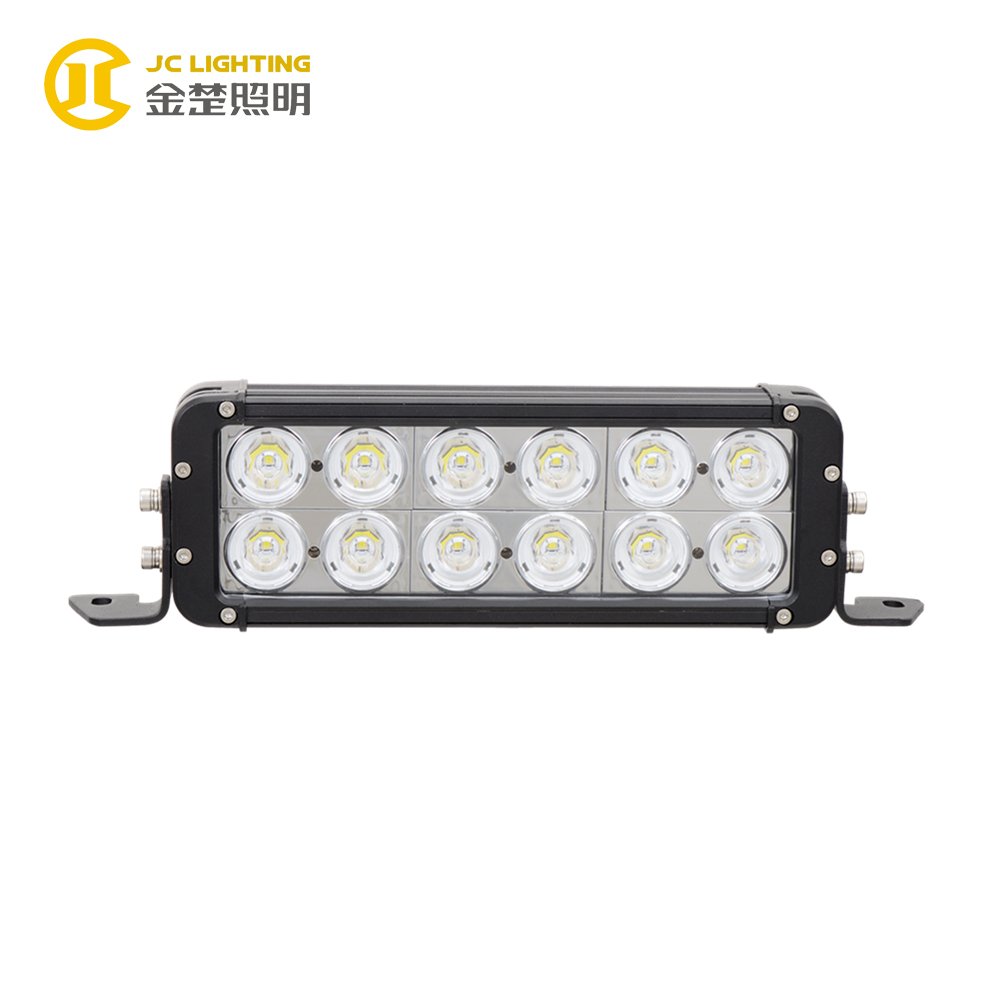

JC10218D LED Light Bar Series
| MODEL | INCH | LED (PCS) | WATT | RAW LUMENS | EFFECTIVE LUMENS | SIZE(MM) | AMPS/12V | INPUT VOLTS | QTY/CTN |
| JC10218D-40W | 5" | 4 | 40W | 3440LM | 2580LM | 117*98*92 | 2.5 | 9-60V | 12 |
| JC10218D-80W | 8" | 8 | 80W | 6880LM | 5160LM | 197*98*92 | 5 | 9-60V | 6 |
| JC10218D-120W | 11" | 12 | 120W | 10320LM | 7740LM | 277*98*92 | 7.5 | 9-60V | 6 |
| JC10218D-200W | 17" | 20 | 200W | 17200LM | 12900LM | 437*98*92 | 12.5 | 9-60V | 4 |
| JC10218D-240W | 20" | 24 | 240W | 20640LM | 15480LM | 517*98*92 | 15 | 9-60V | 4 |
> It’s one of the heaviest hitting light bar in our factory, already received many good feedback from customers all over the world, especially from Australia and America.
> This kind of car LED light bars use proprietary Thermal Paste behind PCB board which yields 13% extra cooling capabilities, to ensure long term LED stability.
> Double row Cree LED light bars use GE brand polycarbonate lens from USA, while inferior light bars use a cheap run of the mill PC in order to keep costs down, which will turn yellow and fog with use.
> Black painted aluminum housing with integral heat-sink.
> Latest 10W XM-L2 Cree LED chip from USA, which is 10W more efficient with its light output than the 3W Cree or 10W Cree XM-L chip.
> Each car LED light bar produces tremendous light output, boasting a life span of 30,000 hours.
> Wide operating voltage range (9~60V DC): This bar LED light can apply to different types of trucks, cars, and other vehicles.
> Supports OEM/ODM.
