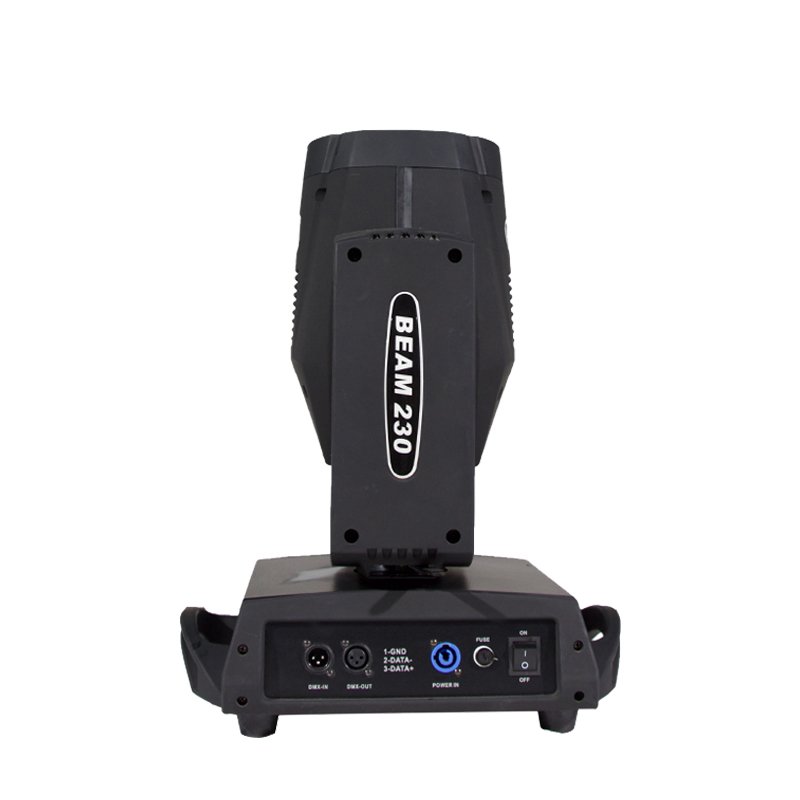

RI-230B is a high power 230W moving head beam with an unprecedented brightness usually achievable only with far greater wattages. Weighting just 19kg, it offers 14 rich colors and 17 patterns, allowing you to change the shape of the beam and create an array of spectacular mid-air effects. With its light weight and modest footprint, this 230W sharpe beam is versatile to be fitted anywhere-on trussed a live and TV events, stage, showroom or conference rooms.
◇ Light source: YODN/OSRAM SIRIUS HRI 230W
◆ Average lifespan：2000 hrs
◇ Color Temperature: 8500k
◇ Voltage: AC100-240V,50-60Hz
◆ Power consumption: 230W
◇ High efficient optical lens
◆ Imported hight temperature resistant color filter
X/Y
◇ Pan: 540º/ Tilt: 270º (8bit/16 Bit Resolution)
◆ Automatic P/T position correction
◇ 14 colors + open color wheel with half-colors, rainbow effect
◇ 17 gobo + open, gobo shake
◇ Focus: 5 meter to infinity (0-4º )
◇ Prism1: 24 or 32 rotating prism
◆ Prism2: double-deck prism(8 prism+16 prism)
◇ 0-100% linear dimming, 1-20t/s
◇ max 13 t/s, with random pulses strobe function
◇ Frost Filter
◆ 0-100% linear atomization
◇ Protocol: USITT DMX 512
◆ Standalone, Master/Slave, Auto/Sound Active
◇ Dimension: 360*410*500mm
◆ N.W/G.W: 19KG/21KG
◇ Mounting points: 4 ¼-turn locks
◆ 2 x Omega brackets with ¼-turn quick locks
