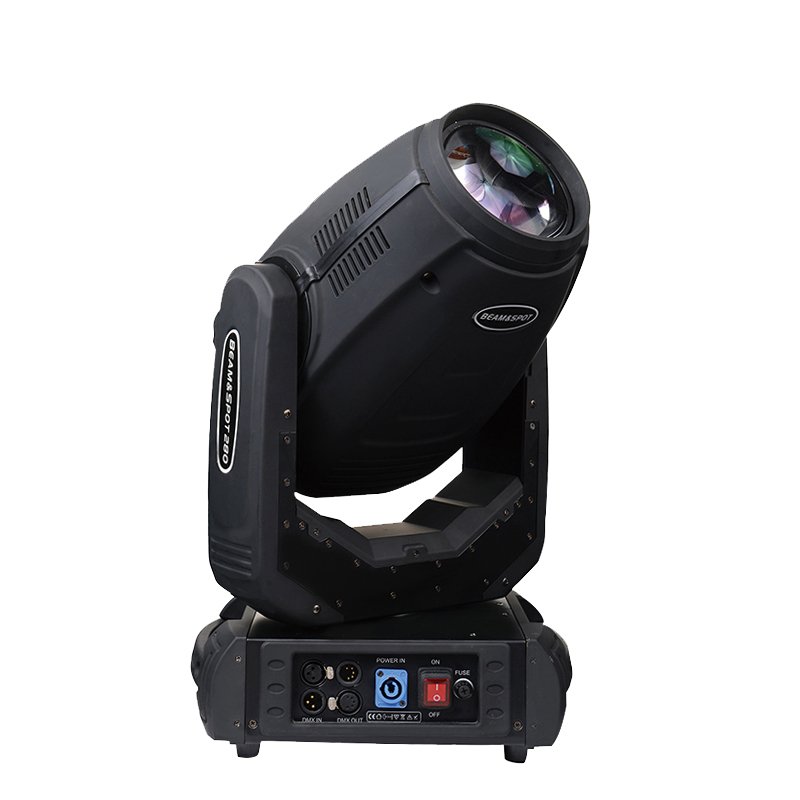

280W 10R Sharpy Beam Spot Wash 3in1 Moving Head Light
Click on the image to view the original image
Product: views:14280W 10R Sharpy Beam Spot Wash 3in1 Moving Head Light
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-09-03 08:41
  Negotiated
Product Details

This is a full-featured moving head beam spot and wash 3in1, high power in OSRAM 10R discharge lamp. The combination with high quality pan and tilt motors allow this light move very quickly and precisely. Moving inside the fixture, we have a lot of things to play with. Firsty we have a color wheel featuring 13 nice colors plus white. Alongside has two gobo wheels with 14 fixed gobos and 9 rotating gobos, there is also a 8-facet circular prism and 6-facet linear prism which allow you to break up the beams of light and create some really nice aerial effects. Putting a frost filter inside help to turn a beam light into a pretty good wash. Sure you would astound its performance on stage.


    Source

◇ Light source: YODN/OSRAM HRI 280W
◆ Lamp life: 2200 hrs
◇ Luminous Flux: 12000lumen, 620000lux@5m at 2°  beam mode, 31390lux@5m at 5.5° spot mode

    Power

◇  Ballast: switching mode power supply
◆ Power consumption: 400W
◇ PowerCon compatible In/Out
◆ 3-Pin XLR DMX input/output

    OPTICAL SYSTEM

◇ Zoom angle: 2°-10° (beam application), 5.5°-23° (spot application)

    Movement

X/Y
◇ Pan: 540º/ Tilt: 270º (16 Bit Resolution)
◆ Automatic P/T position correction

    Colors

13 color + open, interchangeable, indexable and bidirectional    rainbow effect

    Gobos

◇ 9 rotating gobos + open
◆ 14 static gobos + open
 Real indexing and gobo shaking
◆ Distinctive gobo animation effect

    Focus

Motorized focus .8 bit or 16bit

    Prism

Prism 1: 8-facets circular rotating prism
◆ Prism 2: 6-facets linear rotating prism

    Frost Effect

◇ Adjustable Wash effects angle

    Dimmer

◇ Smooth dimmer from 0-100%

    Strobe

◇ Dual lens strobe (0.5-9 times/sec)

    Operating Mode

◇ Standalone, Master/Slave, Auto/Sound Active
◆ DMX Channels: 16/24 CH control options

    Dimensions & Weight

◇ Dimensions: 386*365*589mm
◆ N.W/G.W: 17kg/19kg

    RIGGING

◇ 2 x Omega brackets with ¼-turn quick locks
