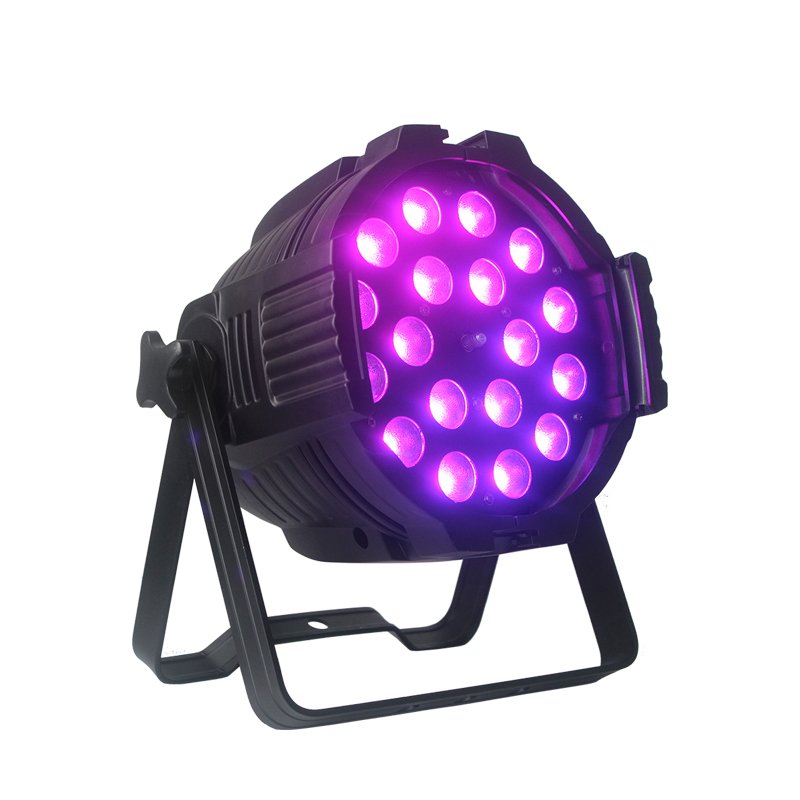

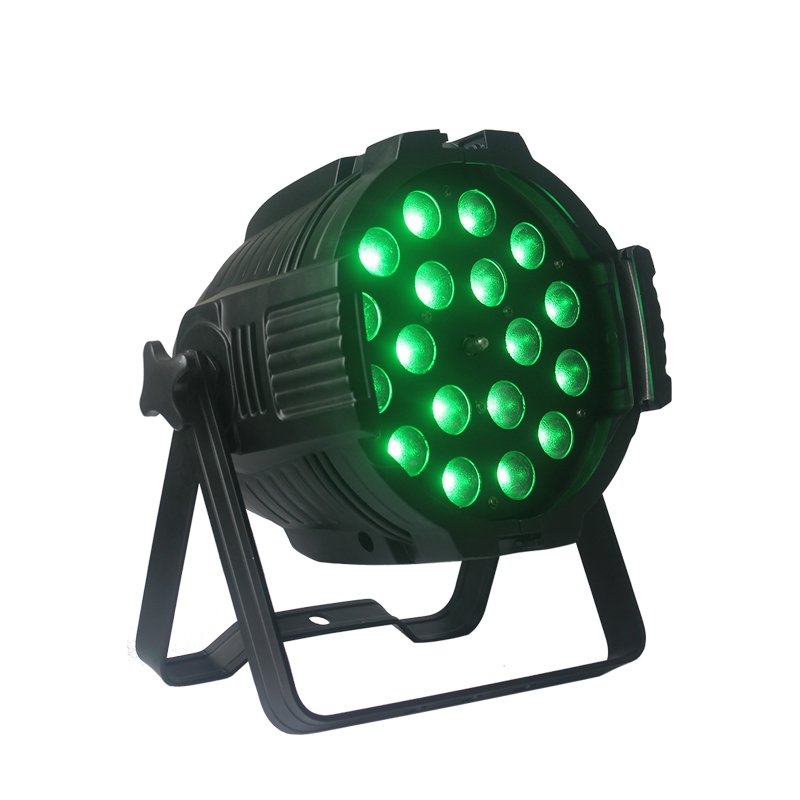

RI-218 ZOOM is designed as a truly versatile unit, combining the forefront of led technology with its extremely impressive zoom range of 8-45 degrees. the RI-218ZOOM is a ideal products for a wide range Of applications to theatre and wedding party facade lighting. with this Fixture, lighting designer has a ideal tool to creating dramatic beams of light or carrying out wide panoramic color washing.
◇ 18pcs 10W RGBW LED
Power : 200W
Zoom angle:10-60degree
Power Voltage: AC 100-220V, 50/60Hz
Gross Weight: 4.5Kgs
◇ DMX Channel: 6/10Channel
Control Modes: DMX/auto run/master slave
◇ Display: Digital panel
Data In/Out socket: 3-pin
No. | Display | Function |
1 | d001 | 6 channel address code, (001-512) B, C key to add and subtract address code values |
2 | d.001 | 10 Channel address code, (001-512) B, C key to add and subtract address code values |
3 | CC01 | colour jump to change, (01-99) B, C key to modify jump to change speed |
4 | CP01 | Gradient (01-99) B, C key to modify the colors |
5 | dE01 | colour pulse variable, (01-99) B and C modify pulse variable, velocity gradient |
6 | dENo | Jump, Gradient and pulse variable |
7 | bEbE | Sound control,Jump, Gradient and pulse variable |
8 | R255 | Red colors, (000-255) B, C key to modify the colors |
9 | G255 | Green colors, (000-255) |
10 | B255 | Blue colors, (000-255) B, C key to modify the colors |
11 | W255 | White colors, (000-255) B, C key to modify the colors |
12 | A255 | Zoom function(000-255) |
13 | Dr01 | Mode 1 Linear dimmer |
