Home > Products > 9~16V T5-2 H1 Automotive Led Headlight

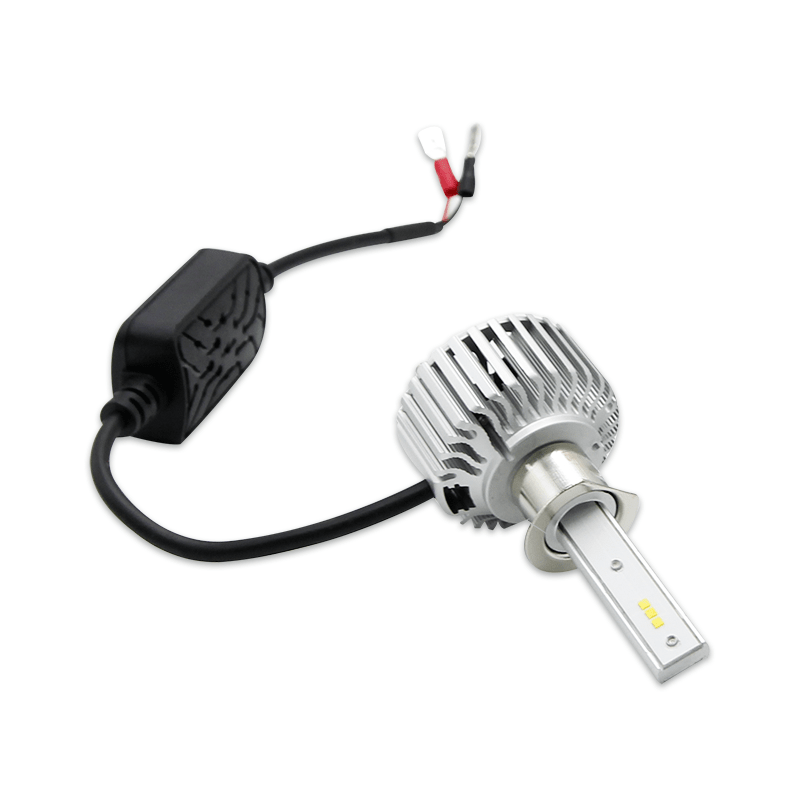

9~16V T5-2 H1 Automotive Led Headlight
Click on the image to view the original image
Product: views:59~16V T5-2 H1 Automotive Led Headlight
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-09-03 08:44
  Negotiated
Product Details
 Specification


Why  released this car led headlight?



For led headlight bulbs, COB led headlight is really very hot selling, but the defective rate also really very high. So many customers want to find replacement, but it is very hard to find it, better quality and similar price. That's why HC autotive lighting produce Led headlight. The quality is much better than COB led headlight, and the price just a little higher than COB led headlight.


undefined


 Parameters


undefined
    Parameters

◇ Model number: T5-2 H1 automotive led headlight
◆ Lamp size: Φ40*86mm
◇ Power: 30W
◆ Lumen:  3000lm
◇ Input Voltage: 9~16V
◆ Main Body: 6030 Aluminum
◇ Led Source: Seoul chip
◆ Color temperature: 6000~6500K
◇ Working Temperature: -20℃-70℃
◆ Lifespan>30000hrs


 Advantage:

1. Energy Saving

   60% Lower Power Consumption than Halogen and 30% lower than HID

2. Long life Span

   Qualified LED automotive headlight life will never less than 30000Hours

3. Green Light Source

   There is no UV and IR in the spectrum, and Hg free.

4. Microsecond Boot

   LED lighting light up takes only microsecond, high low beam switching without delay

5. Original Car Battery Friendly

   Instant start no strong currents impact, effectively protect the car's battery , improving battery life by more than 30%.

6. Low-voltage direct current can drive, small load, weak interference, good adaptability.

7. Complete Kit:

   No Other Ballast/Driver Required.

8. Easy installation, Plug and Play, No modification required

undefined

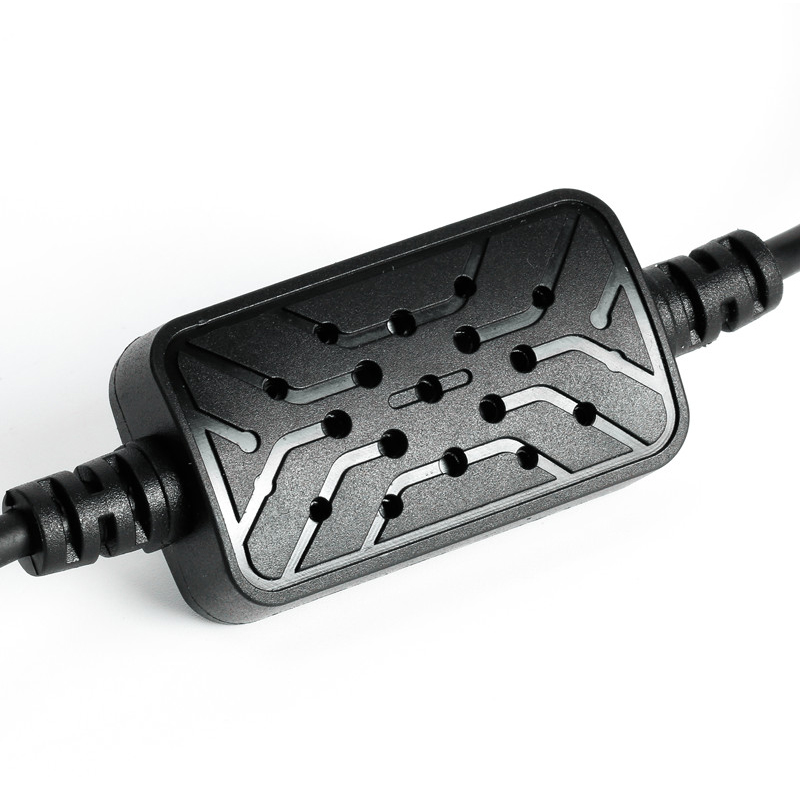

Patent Driver
undefined

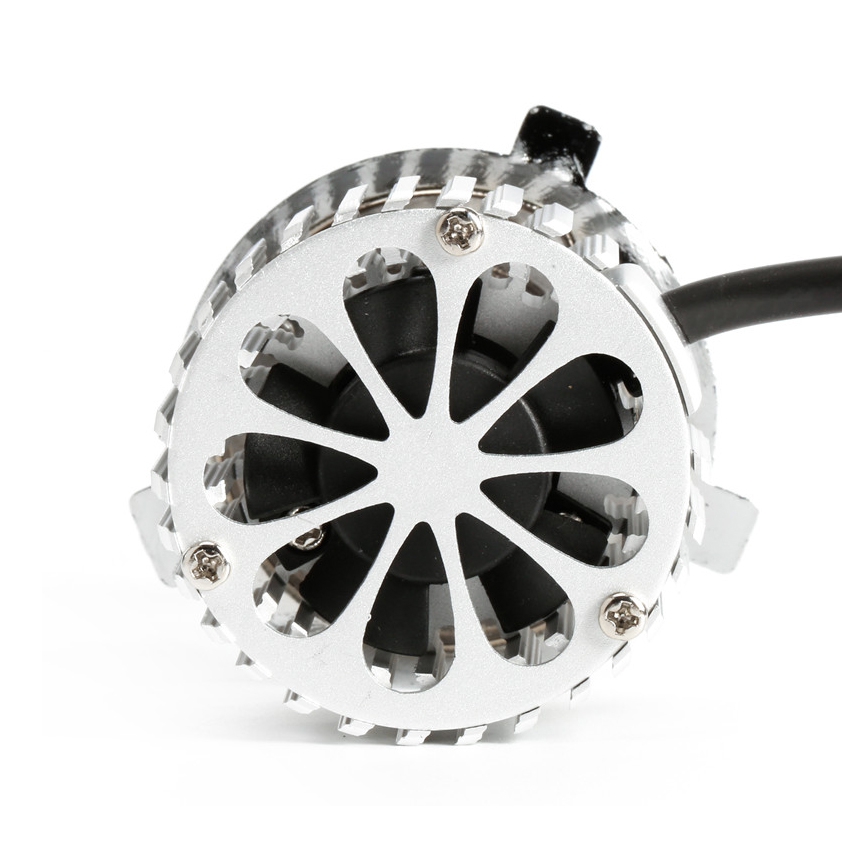

Build-in hydraulic bearing fan


 Product Test Standard


Inspect Item

Inspect Method

Inspect Standard

Apperance

No scratches, no color difference

Meet the size requirement of Apperance

Voltage range

When input 9~16V,led car light on

9~26V,light on

12V Current

2.31+/-0.11A

2.31+/-0.11A

Reverse Voltage

Single beam off,no damage.h/l beam on

Single beam off,no damage.h/l beam on

High temperature test

Put in 70℃ temperate box,test 2 hours

Funcation in normal,LED source is not black

Constant Power

When input 10~16V, no change in power

28W+/-1.5W

Luminous flux

Single:2850lm+/- 150lm

Single:2850lm+/- 150lm

Color temperature

6000~6500K

6000K~6500K

Waterproof

Light on put in water 30 min, keep normal

IP65

 Optional led car headlight options


H4/9004/9007/H13/H1/H3/H7/H8/H9/H11/H16/9005/9006/5202/880/881

All parts conform to CE/RoHS requirements
