Why we released this car led headlight?
For led headlight bulbs, COB led headlight is really very hot selling, but the defective rate is also really very high. So many customers want to find replacement, but it is very hard to find it, better quality and similar price. That's why HC auto lighting launched Led headlight. The quality is much better than COB led headlight, and the price just a little higher than COB led headlight.

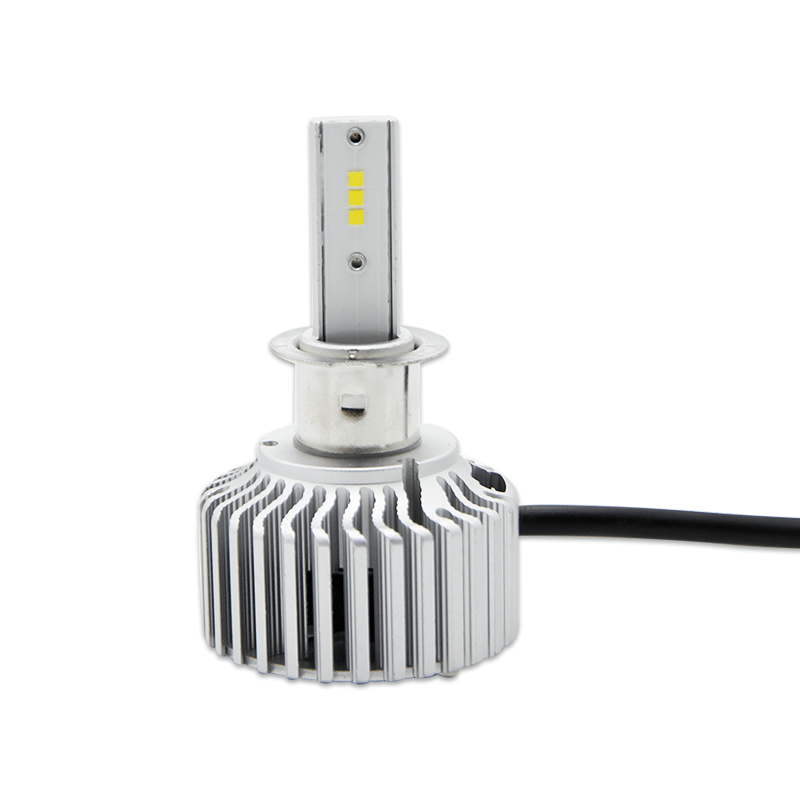

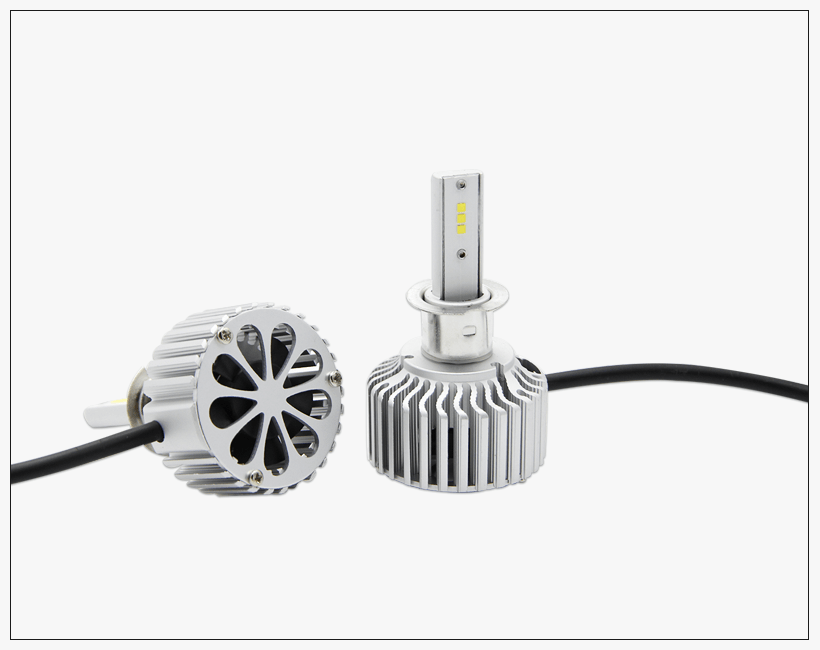

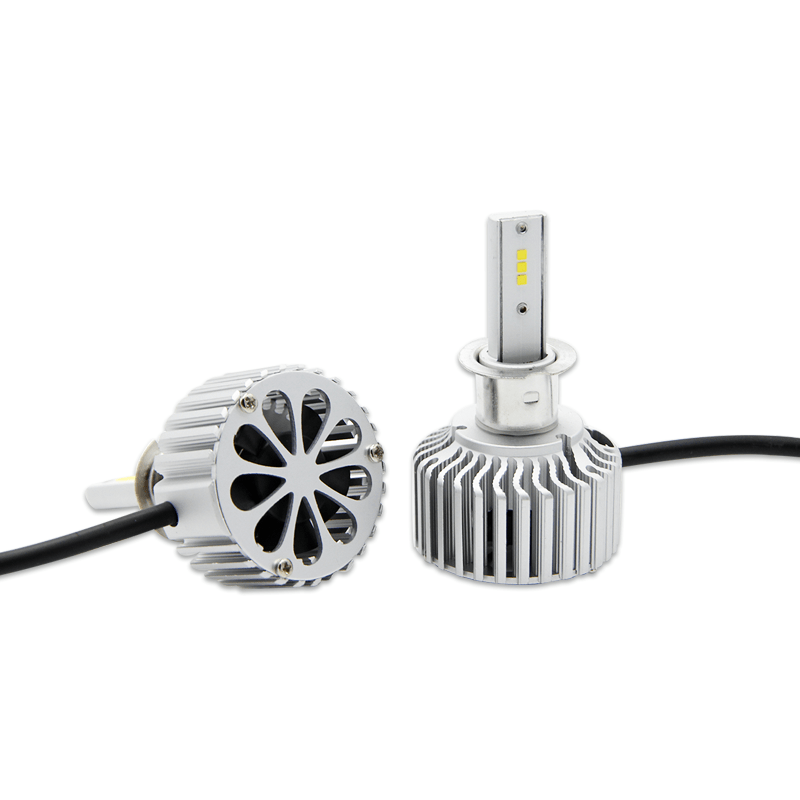

◇ Model number: T5-2 H3 led headlight car
◆ Lamp size: Φ40*77mm
◇Power: 30W
◆ Lumen: 3000lm
◇ Input Voltage: 9~16V
◆ Main Body: 6030 Aluminum
◇ Led Source: Seoul chip
◆ Color temperature: 6000~6500K
◇ Working Temperature: -20℃－70℃
◆ Lifespan>30000hrs
★ Advantage:
1. Anti-FM interference wire: No FM interference any more.
2. 360 degree adjustable base: to get an amazing optical form.
3. Enduring high temperature plug: Special plug and installed easily.
4. Aircraft Aluminum head top: to reach a much better spot function.
5. Perfect heat dissipation with Dual cooling system: Air flux cooling system, fan cooling system.

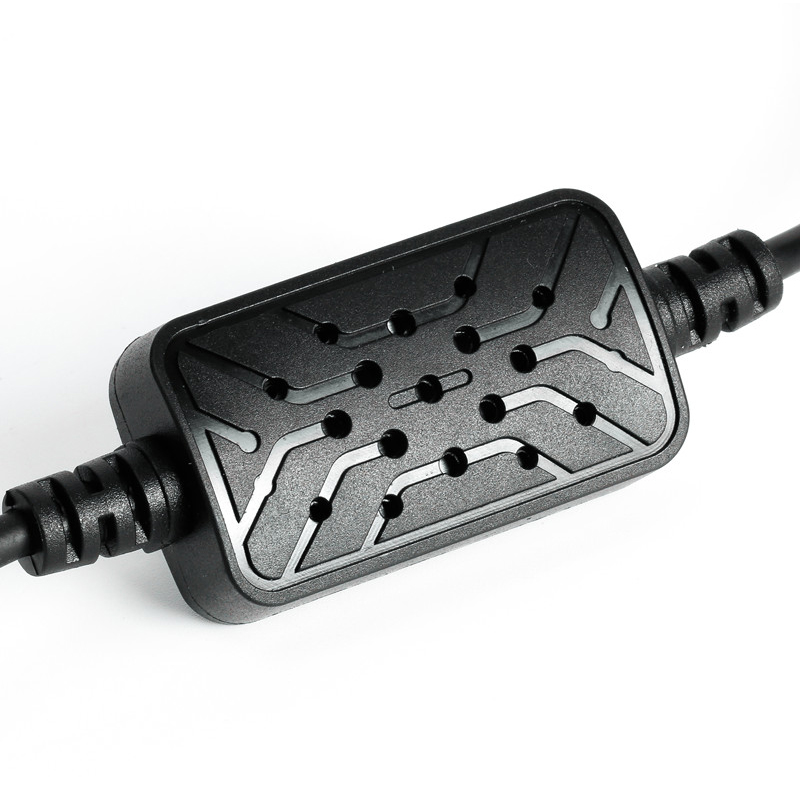

6. EMC certificate for power source.NO CANBUS issue. Smallest battery box and NO one ascrew on it.
Inspect Item | Inspect Method | Inspect Standard |
Apperance | No scratches, no color difference | Meet the size requirement of Apperance |
Voltage range | When input 9~16V,led car light on | 9~26V,light on |
12V Current | 2.31+/-0.11A | 2.31+/-0.11A |
Reverse Voltage | Single beam off,no damage.h/l beam on | Single beam off,no damage.h/l beam on |
High temperature test | Put in 70℃ temperate box,test 2 hours | Funcation in normal,LED source is not black |
Constant Power | When input 10~16V, no change in power | 28W+/-1.5W |
Luminous flux | Single:2850lm+/- 150lm | Single:2850lm+/- 150lm |
Color temperature | 6000~6500K | 6000K~6500K |
Waterproof | Light on put in water 30 min, keep normal | IP65 |
H4/9004/9007/H13/H1/H3/H7/H8/H9/H11/H16/9005/9006/5202/880/881
