Why we released this car led headlight?
For led headlight bulbs, COB led headlight is really very hot selling, but the defective rate is also really very high. So many customers want to find replacement, but it is very hard to find it, better quality and similar price. That's why HC auto lighting launched Led headlight. The quality is much better than COB led headlight, and the price just a little higher than COB led headlight.

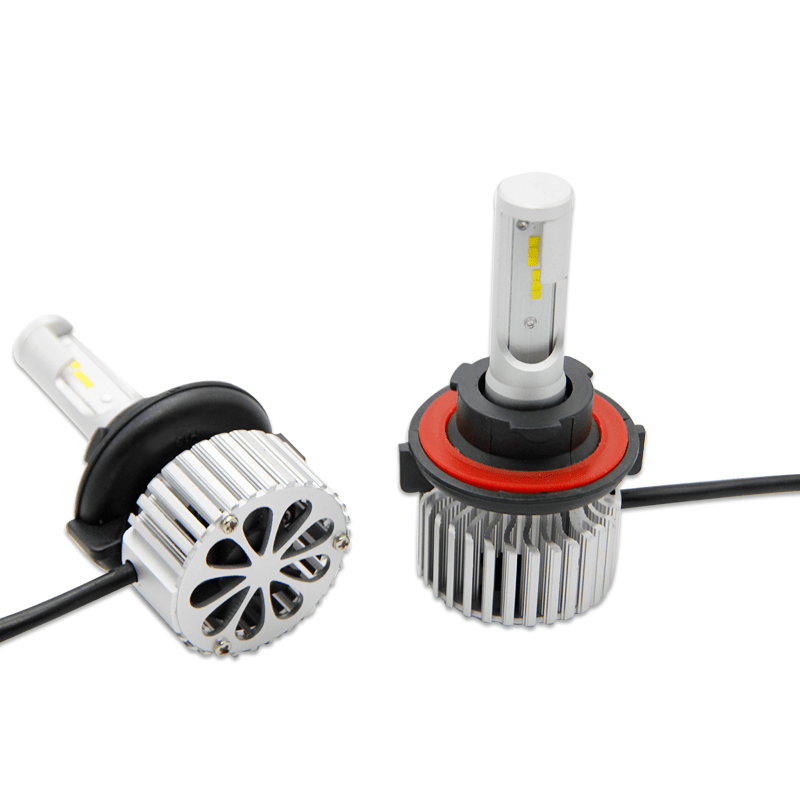

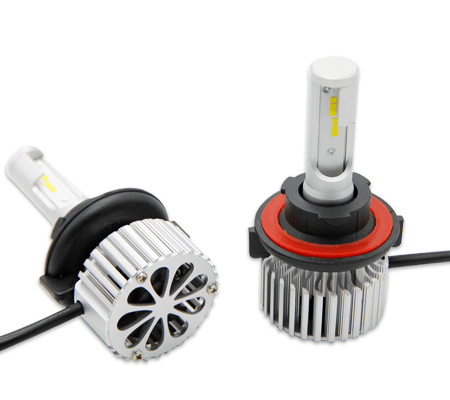

◇ Model number: T5-2 H13 h/l car led headlight
◆ Lamp size: Φ40*86.2mm
◇ Power: 60W
◆ Lumen: 6000lm
◇ Input Voltage: 9~16V
◆ Main Body: 6030 Aluminum
◇ Led Source: Import Seoul chip
◆ Color temperature: 6000~6500K
◇ Working Temperature: -20℃－70℃
◆ Lifespan>30000hrs
◇ High power super bright auto use Led, energy saving and long lifespan. |
◆ High/low Beam car LED Conversion KIT, perfectly replace original halogen headlight. |
◇ Direct plug-in replacement, easy to install, good fit to your vehicle. |
◇ Patent Led driver IC, good performance and reliable. |
◆ Built-in CANBUS & super decode, compatible with DRL |
◇ High intensity Seoul Led source, super high output,7W/pcs |

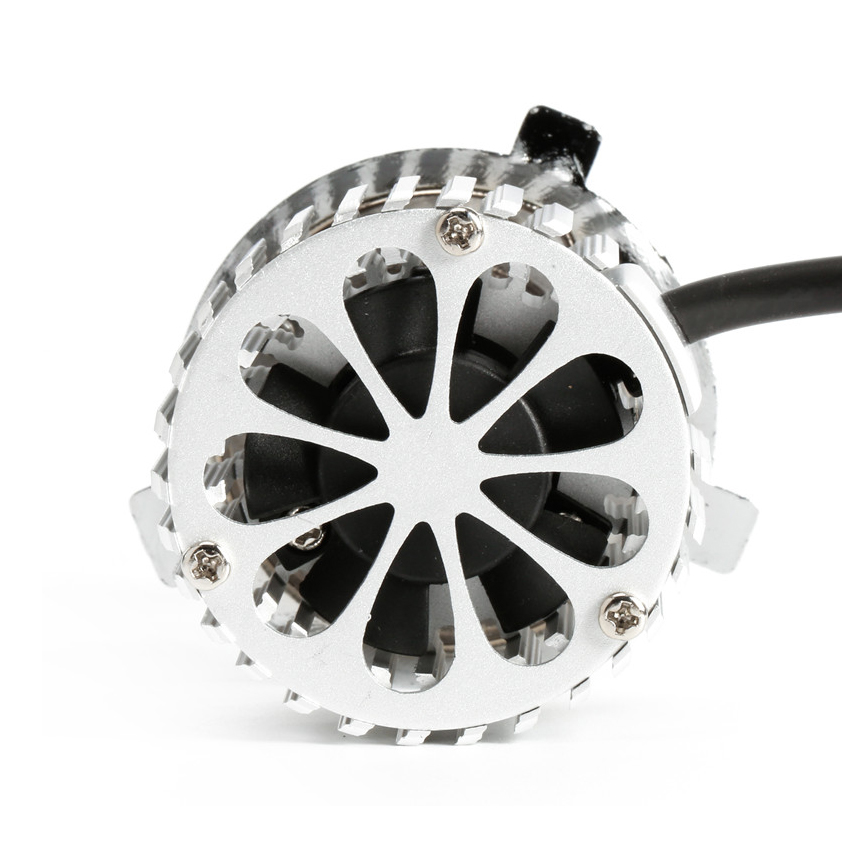

◆ Build-in hydraulic bearing fan, speed at 9000rpm |
◇ Adopt superconducting plate, the cooling effect 10 times better than ordinary Aluminum plate |

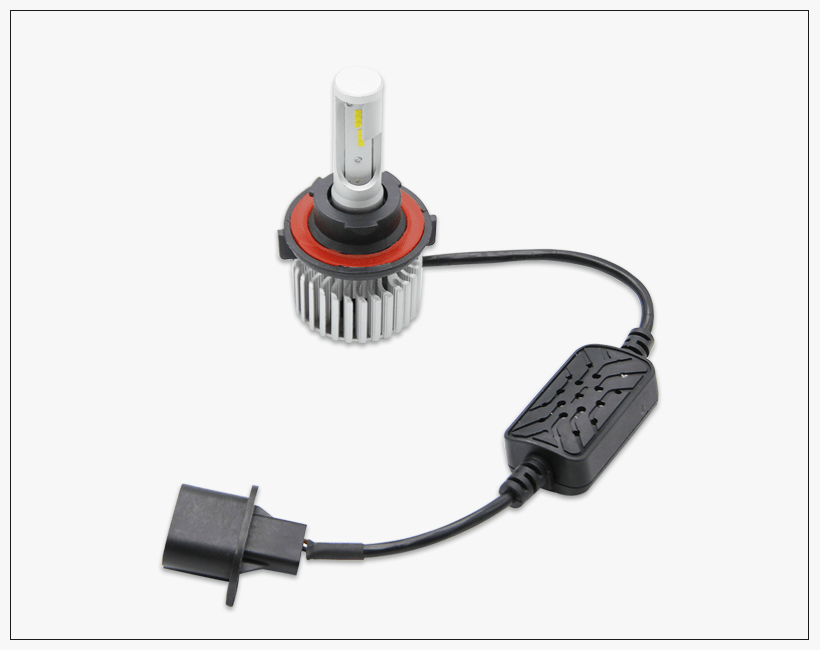

◆ Separated design of the driver and car led headlight body, improved cooling effect |
◇ With EMC Funcation, Reverse protection |
Inspect Item | Inspect Way | Inspect Standard |
| Voltage range | When input 9~16V,led car light on | 9~26V,light on |
12V Current | 2.31+/-0.11A | 2.31+/-0.11A |
Reverse Voltage | Single beam off,no damage.h/l beam on | Single beam off,no damage.h/l beam on |
High temperature test | Put in 70℃ temperate box,test 2 hours | Funcation in normal,LED source is not black |
Constant Power | When input 10~16V, no change in power | 28W+/-1.5W |
Luminous flux | Single:2850lm+/- 150lm | Single:2850lm+/- 150lm |
Color temperature | 6000~6500K | 6000K~6500K |
Waterproof | Light on put in water 30 min, keep normal | IP65 |
Application
The T5 car led headlight available exceed 95% of cars,with smaller body and easy to installation.With inner canbus funcation for the cars need canbus error free.
Optional led car headlight options:
H4/9004/9007/H13/H1/H3/H7/H8/H9/H11/H16/9005/9006/5202/880/881
