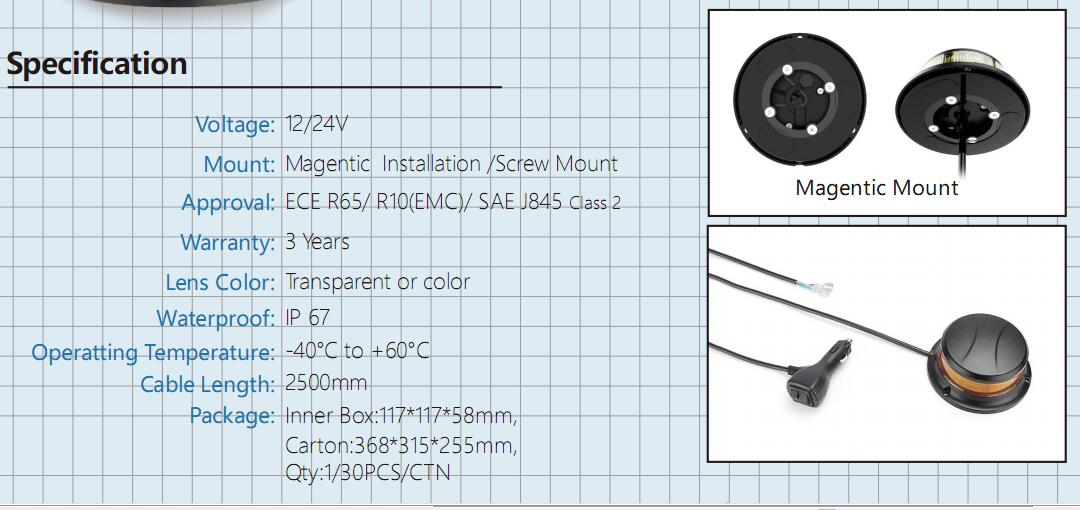

Specification:
1.Lens color: Clear Or Color PC Cover
2.Size: Φ112*48mm
3.Power: Amber:27W, Blue:27W, Red:24W
4.Voltage: 10~30V DC
5.Approvals: ECE R10,ECE R65, SAE J845 Class2
6.Waterproof level:IP67
7.Warranty: 3 Years
8.Color Option: amber blue red
9.M:Magnetic Base,2.5 Meter Cable With Cigarette plug
10.S:Surface Mount ,0.5 Meter Cable With Bare Ends
Model number | Color | Voltage | Peak Power | Mounting | Approvals |
WA-028C2R-MG | red | 12/24v | 24W | Magentic mount | ECE R10 ECE R65 CLASS 1 SAE J845 CLASS 2 |
WA-028C2R-ST | Screw mount | ||||
WA-028C2A-MG | amber | 27W | Magentic mount | ECE R10 ECE R65 CLASS 1 SAE J845 CLASS 2 | |
WA-028C2A-ST | Screw mount | ||||
WA-028C2B-MG | blue | 27W | Magentic mount | ECE R10 SAE J845 CLASS 2 | |
WA-028C2B-ST | Screw mount |
Flash model | |||||
＼ | Pattern | Cycle | ＼ | Pattern | Cycle |
1 | Single(ECE/SAE) | 480ms | 2 | Single | 800ms |
3 | Double | 400ms | 4 | Double | 800ms |
5 | Triple | 820ms | 6 | Quad | 820ms |
7 | F&B half | 400ms | 8 | F&B half | 800ms |
9 | Rotated | 800ms | 10 | Rotated | 400ms |
