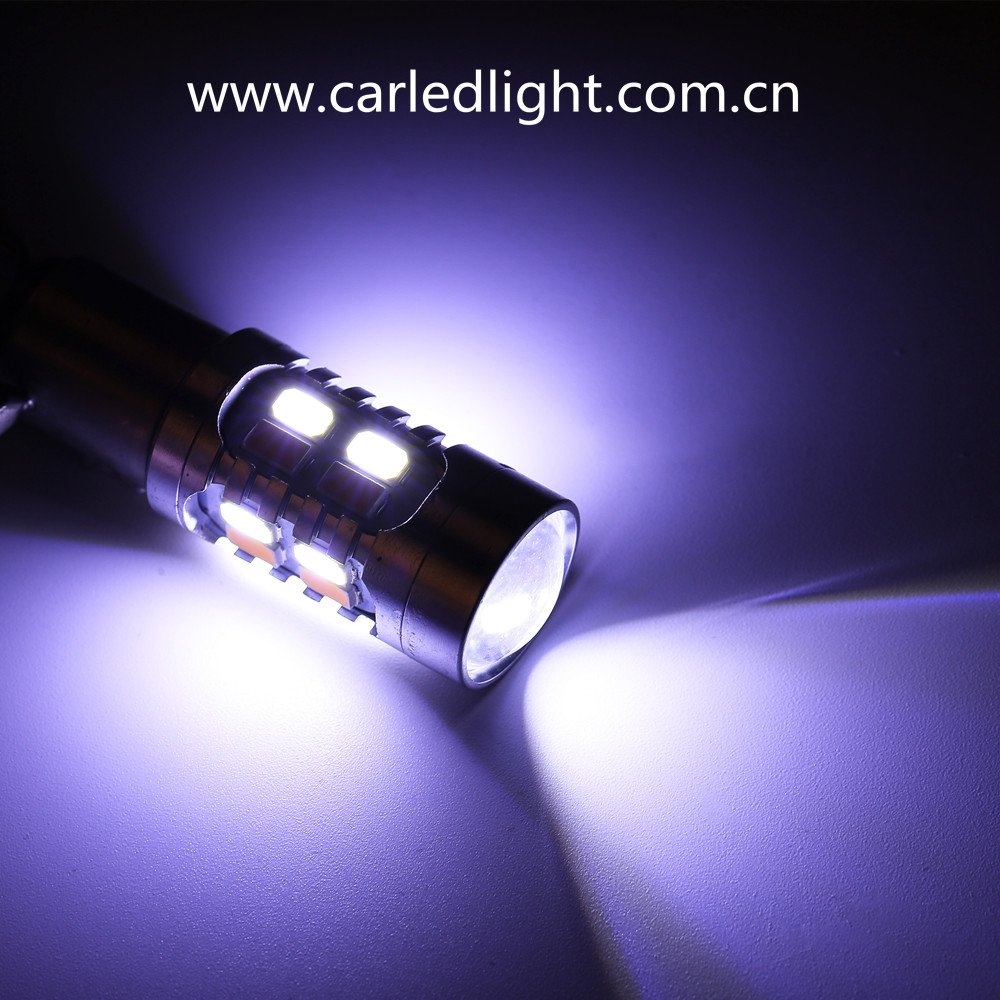

This 1157 dual color led bulb with projector lens emits a 360° viewing angle, when turn signal, the light color from white change to amber . The bulb with BAY15D base easy plug and play installation, and energy efficient, operate with a wide 10~30V DC range, as led replacement bulb for cars ,trucks, SUV, Vans etc. Available for white, amber ,red
1. Parameters
Model:1157-20-5730SMD double color with lens | Chip: 5730SMD |
Manufacturer: Hong chang | LED Quantity: 20 PCS – 5730SMD |
LED Power: 10W | Current:530±20 |
Voltage: DC12v-24v | Beam Angle: 360° |
Lumen:450 lm | Color Temperature: 6000K and 3000K white and yellow |
Life Span: 50000 hours | Working Temperature: -20°C~ +85°C |
Available Color: White, Yellow, Red | Packing: Antistatic Bag or Blister package |
Net Weight: 25g/pc | Certificate: CE ROHS etc. |
Delivery: 2-7 work days | Application: Turning Light, Back-Up light, reverse light |
Warranty: 12 months | HS Code: 8512201000 |
Available: 1156 1157 3156 3157 7440 7443 | |
2. Product Description
a. Dual-color LED design, cold white in parking/position light mode an amber in turning light mode.
b. This kind of switchback LED will give you a nice matching look when operating.
c. Bulb is cold white when parking lights are on, signals amber only when turn signals are activated
and returns to white once turn signal is deactivated.
This series of products use imported chip from Taiwan, and our company encapsulated illuminant. Solid aluminum parts, excellent anticorrosive and good advantageous to
heat dissipation. Constant current drive IC for electric circuit design. The base withstand high temperatures so that keep longer usage.

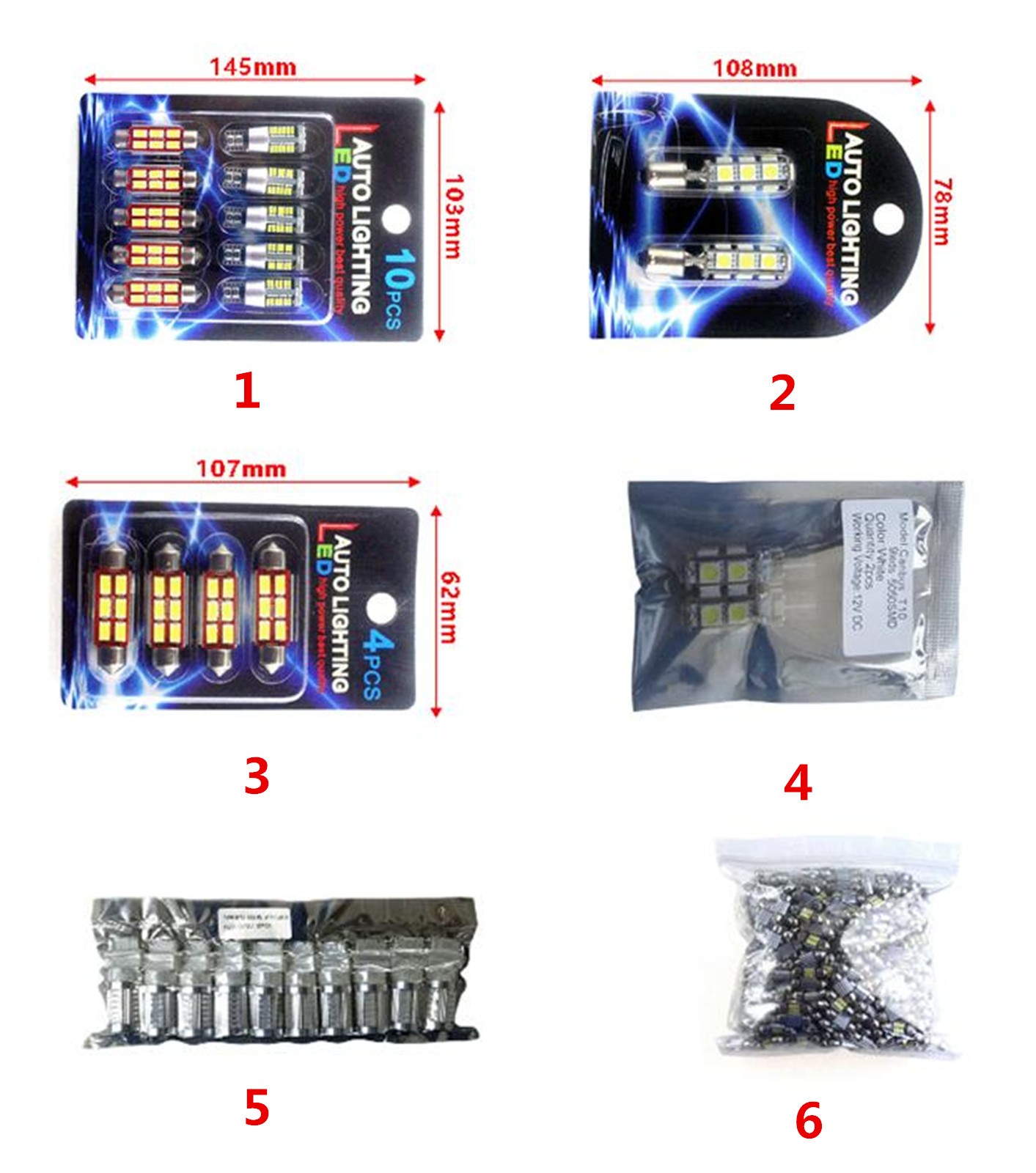

3. Package
