★ Parameters
Voltage: 9~30V

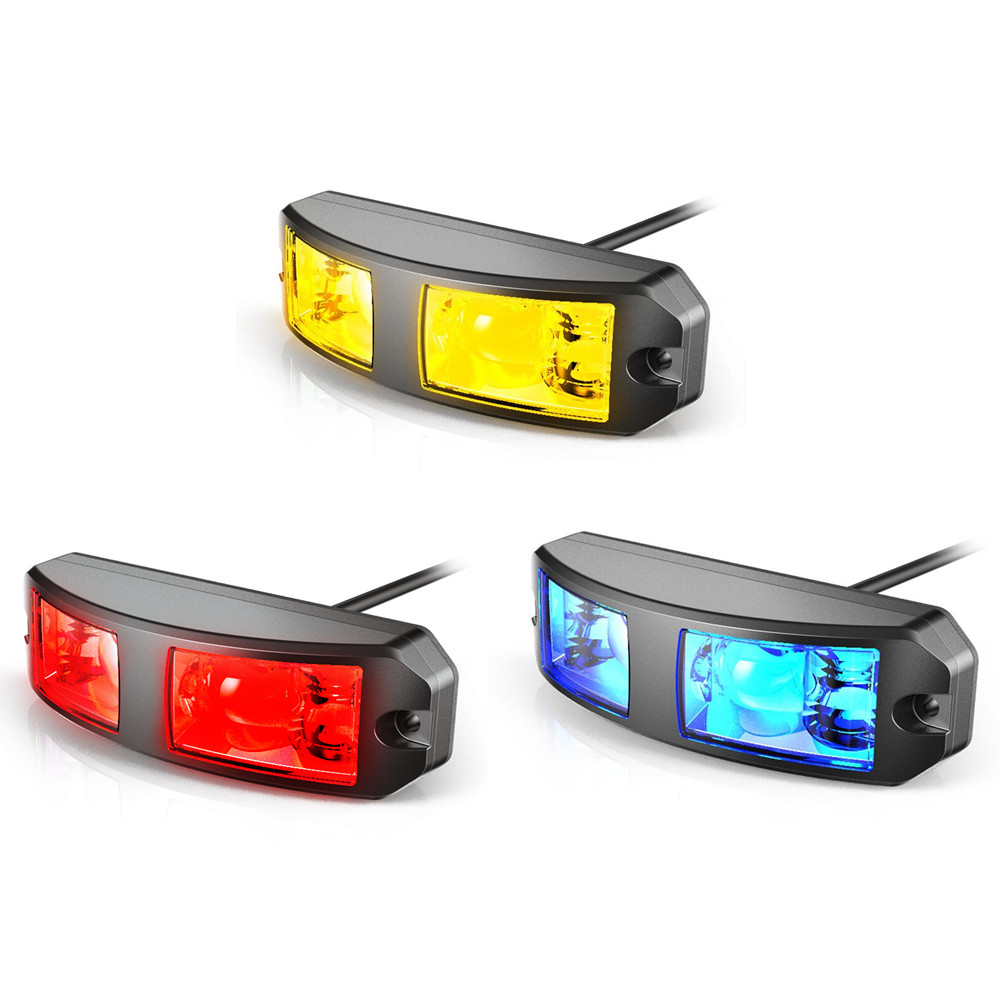

Function: Blue 180 degree vehicle led strobe light kit
Warranty: 36 months
Mounting: Screw Mounting
Waterproof: IP67
Sealing: Potting
Operate Temperature: -40℃~＋65℃
Connector:300mm Cable(4 Core)
Weight: 0.11kg
Material: Lens, Inner lens, Bezel, Inner lens bracket ,PC Housing, AL Die-Cast (ADC12)
Package: Inner box: TBD
Outer box: TBD
Color | Power | LEDs | Approval |
Red | 15W | 5 PCS | ECE: R65 Class 1(Wide range)
ECE R10(EMC) |
Amber | 7.5W | 5 PCS | |
Blue | 15W | 5 PCS |
Cable Color | |
Function | Color |
+ | Red |
- | Black |
Pattern Switch | Green |
Asynchronous | White |

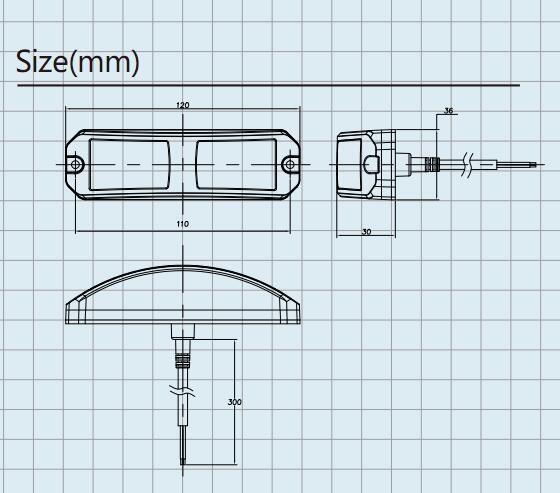

★ Size
★ Model Options
