1. Parameters
Single Beam | Hi-Lo Beam | |
Operating Voltage | DC 9V~32V | |
Waterproof | IP65 | IP65 |
Color Temperature | 6500K | 6500K |
Light Life | Exceed 30,000 hours | |
Car headlight Lumens | 8000lm/set | 8000lm/set |
Light Effect | >75% | |
Input Power | 72W/set | 72W/set |
Light Source | COB Chip | COB Chip |
Working Temperature | -40℃ - ＋80℃ |
2. Car Headlight Bulbs
H1 H3 H7 H8 H9 H11 9005 9006 880 H16 etc
3. Feature
Heat Dissipation Design:
Ⅰ. 24 indentation can Expand Heat Dissipation Area.
Ⅱ. Quick Heat Dissipation Speed can Extend Life Span.
Ⅲ. Frosted Heatsink is Designed to Disperse Heat and Cooling
Paint makes the effect of Heat Dissipation better.
Material:
High thermal conductivity High precision anode grey lamp body;
Imported aircraft grade aluminum with precision
Machining; Aluminum PCB and PA66+30% GF Plastic;
High intensity heat resistance lens hood.
High compatible and high effective decoder
Specialized decoder error free for all vehicles, error free
Effectively, anti-interference, no glare, easy and safe
Connection without any modification for wires.

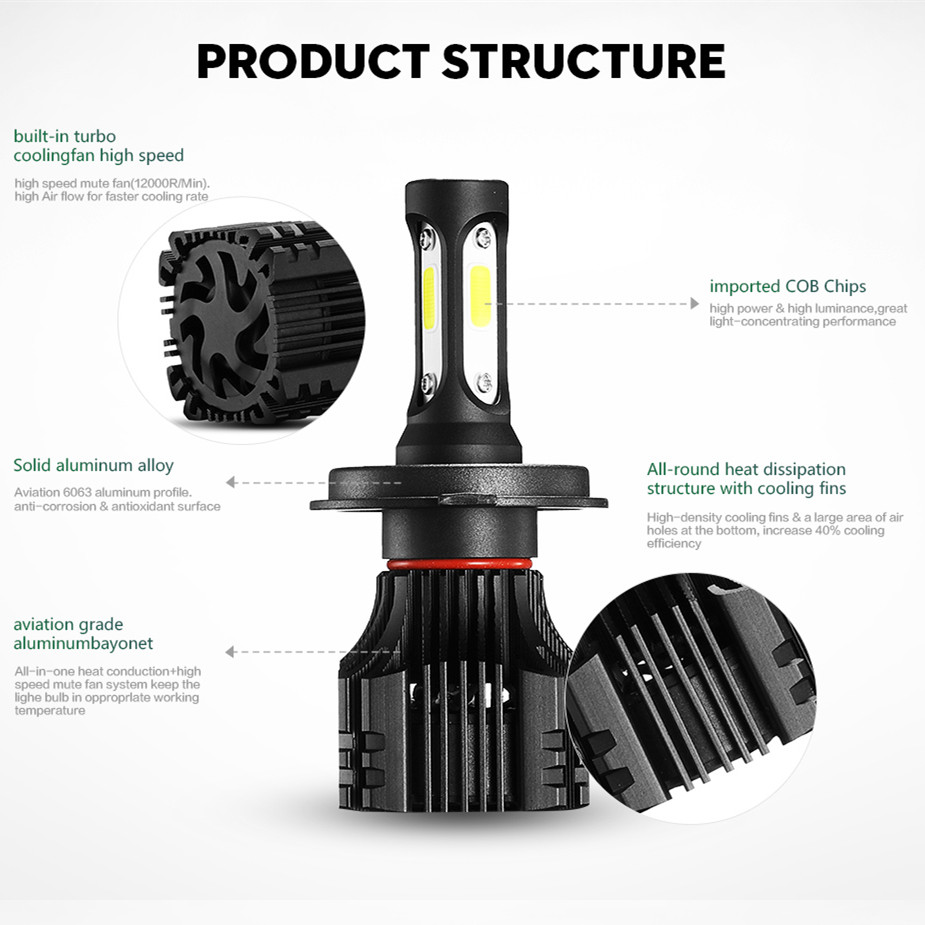

4. Product Structure
