Click on the image to view the original image
Product Parameters
Input Voltage | Power | Life Span | N.W. | Load-bearing |
90-240VAC, 50/60 hz | 15w | ≥100000 hours | 8KG | 500kg/pc |
Output Voltage | Led QTY | Surface Board | G.W. | Special |
DC15V | 192 pcs 3528smd | 10mm tempered glass | 9KG | 96 kinds of effects inside |
Product Size | Color | Waterproof | Packing size | Pixel |
500*500*70mm | RGB 3IN1 | IP67 | 560*560*130mm | 4*4 |
Product effect video
Product Advantages
Effect of contrast

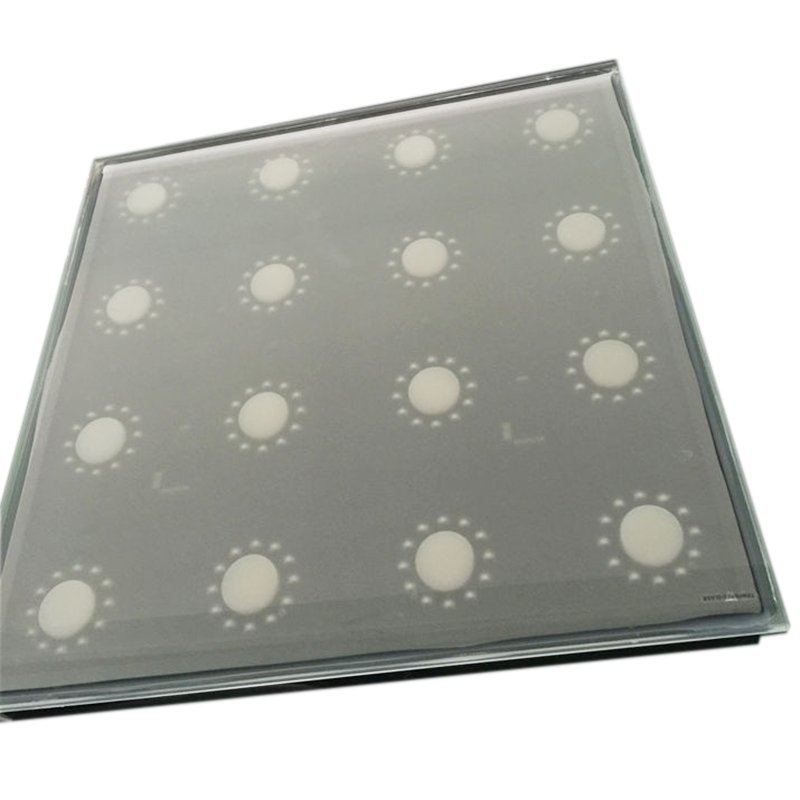

1.4x4 interactive led dance floor with 12MM tempered glass as surface accept to stand 500kg person on it.
2.The tempered glass of sensor dancing floor is special glass, what we named it astigmatoscope glass.That makes light looks soft.
3.We use RGB3IN1 3528SMD with double protection signal channel IC dirve that clients easy to make any special effects by themselves, via digital controller.
4.16 dots sensor dancing floor have 2 functions. One is digital video function display, the other one is interactive once person touch on it.
Mould appearance
1.As you can see the musica dance floor, cables hide inside the used dance floor mould base that facilitates customers to do rental business.
2.The surface of Dance floor for viedo play uses frosted glasses so that its lightness softer and distributed evenly.
3.The bottom of fold up dance floor: 2 cables-in and 2 cables-out, 4 connector point around theater stage flooring margin. The convex position is the internal silicon groove, which can be upgraded to IP67 waterproof.
4.There is iron sheet connector under the bottom of dance floor lighting, It means that how to make a dance floor easy to install onto the wall or ceiling when they need to light on the background.
In a summary,As stage flooring suppliers our portable marley floor for KTV room Easy waterproof, Easy connect，Easy movement,that is suitable for rental business and wedding companies.
Control item
1.The control item of our star dance floor is SD control mode and PC control mode.
2.Customers can make any special effects via controller screen software.
3.Our controller has LCD DISPLAY SCREEN, that easy for customers to choose English or Chinese language.
4.Our dance floor chart controller accept to choose function to control dance floor theory brightness and speed.
5.Dance floor dj can switch with interactive or without interactive also choose the effect of animation.
6.Vivid dance floor can output music when someone step on it.
Compare our dance floor stl controller with others, our controller is easy to control suitable for any clients.
Waterproof test video
The advantage of waterproof:
1. LED products can be easily damaged because of water vapour, our grass dance floor adopts ABS mould to achieve IP67 waterproof.
2. Dance floor plans can be used outdoors and it's suitable for performance, party, square lighting project and rental business.
3. Cascade dance floor with waterproof mould is suitable for spray pond, theme park, exhibition, commercial and artistic lighting. And CE Certification renee's dance floor has a life span of 100000 hours.
4. The waterproof design of various size dance floor collapse can prevent creepage and guarantee the safety of human life.
5. Dance floor hits is completely closed and dirty - resistant.
Wiring Introduction
LED Dance floor connection instruction as follow:
1.The rental dance floor uses Black cable and White cable(2 in-2 out).Black cable means led dance floor power cable, White cable means led dance floor signal cable. Black connect to black and white connect to white then will be finished.
2.Easy installation led floor adopts aviation plug to prevent wrong connection when install. Internal cable uses more than 1mm2*3 of cables so that safety led dance floor can work properly when tandem connection.
3.Plastic dance floor stage just need to follow the same color to be connected, in this case we can prevent wrong connection, save time for lighting installation and reduce problems to happen.
Fixed mode video
Step 1: Get ready for customized dance floor tiles and fix connector.
Step 2: Insert highgloss night club dance floor into the lockhole at the bottom of mould.
The advantage of fixing interlock dance floor:
1. When led dance floors have been inserted into the lockhole, they are equidistant from each other, and it can protect them against movement also the glasses.
2. Cause of dismounting and installation for event, rental customers could save time for installing 3d optical illusions time tunnel led floor.
3. The way to fix 3d anti-static floor dance floors is convenient for hotel, club, KTV and bar customers.
Attached two pictures and videos for customers to understand:
Picture 1: Back view of 4 pcs infinity mirror dance floors which have been fixed
Picture 2: Side view of fixed connector
Factory test video
Testing before delivery:
1.LED pcb mainboard will be test again and again, to protect flashing dance floor break from Pseudo Soldering.
2.Party Wedding dance floor will be white color test (Max current test) 24hrs.
3.IP67 waterproof version Remote control with DMX dance floor will be test under the water 12 hrs before delivery.
4.DJ lighting led dance floor will be clean again to keep them new before delivery.
We vg light factory advantage:
We vg light produce led furniture dance floor and sale Interlock dance floor wholesale directly, in order to help customers save money. In the mean while, we supply hardware and software support on time. Our Led Lighting Decoration dance floor suitable for the square ground decoration, park ground decoration, sidewalk ground decoration, building outdoor decoration, Wall background decoration, ceiling decoration, business square decoration, tourist resort decoration, KTV, Club etc.
Load bearing test video
The introduction of load-bearing test
China ce led dance floor adopts 12MM tempered glasses for its surface and 1.5MM ABS mould for its bottom. Each 3d mirror floor panel can stand 500KG.
DIY light up dance floor can be used in underground car park, plaza square, disco club and car show.
Anti Impact video
Anti impact
Anti Scratch
Defective glass
Ground brick light sensing video
The sensor interactive led dance floor block will output music once person stand and touch on it by foot.
Product Certificate
Product Applications
Our several kinds of led dance floor suitable for many application, such as square plaza floor, park floor, sidewalk floor, building wall decoration,bridge floor,highway floor,symbol building decoration, scenic area floor decoration,KTV floor,club floor, live show floor decoration etc.
Special Service
1.According to customers’ pictures or videos to customize special 50*50cm 3d time tunnel dance floor.
Induction 1
Induction 2
Induction 3
Hand-drawn drawings2.According to customers’ CAD drawing files to help them produce special size Hot recommend led dance floor.
3.According to customers’ Construction site, our engineer will wiring diagram before Construction installation.
4.According to customers’ requirement, we dispatch engineer to your place tech and help you install China high durability led disco floor.
5.According to customers’ requirement, we write special program to help customer display their DIY effects what they need.
Product Packaging
LED dance floor packing description:
Theatrical Lighting led dance floor sample had better choose wood packing 1in1 or export carton 1in1;
The modular led dance floor packing cost from cheap to expensive but safety is Flight case, woodbox, export cartons, once you buy bulk order.
Especially, we suggest customers whom do business for rental or live show need to move anywhere，because of it's wheel easy to be movement.
