Home > Products > 8*8 Pixel With Interactive

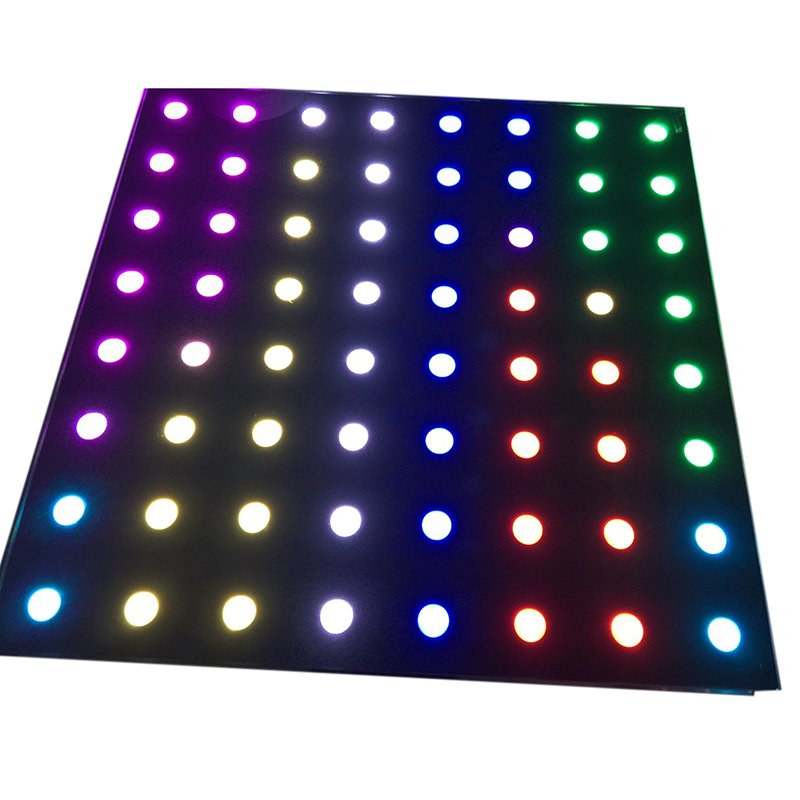

8*8 Pixel With Interactive
Click on the image to view the original image
Product: views:88*8 Pixel With Interactive
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-09-03 08:44
  Negotiated
Product Details

Product Parameters

bg


Input Voltage

Power

Life Span

N.W.

Load-bearing

90-240VAC, 50/60 hz

18w

≥100000 hours

8KG

500kg/pc

 Output Voltage

Led QTY

Surface Board

G.W.

Special

DC15V

64 pcs 5050smd

10mm tempered glass

9KG

96 kinds of effects inside

Product Size

Color

Waterproof

Packing size

Pixel

 500*500*70mm

RGB 3IN1

IP67

560*560*130mm

8*8

Product effect video

bg


Product Advantages

bg


Effect of contrast

undefined
undefined
  •

    1.Two kinds of tempered glass can be use as the led dance floor surface, one is black, the other is white. Pls check pictures as follow.

  •

    2.Our tempered glass is double print glass,which the electronic component is hide.It looks pretty good.

  •

    3.We use 5050SMD with double protection signal channel, that makes clients easy to display special effects by themselves via digital controller.

  •

    4.Pattern and pictures will display when you stand touch on the floor, in the same time music will output as well.


Mould appearance

undefined

1.The light of ransparency tempered glass version led dancefloor to buy is super brightness and colorful.Our tempered glass accept to stand 500kg person on it.
2.White print tempered glass version marley flooring for sale the light is soft.Our tempered glass accept to stand 500kg person on it.

undefined

3.As you can see the lateral view of tap dance floor portable on carpet, cables hide inside the used marley floor for sale mould base that facilitates customers to do rental business.
4.The bottom of dance floor outside: 2 cables-in and 2 cables-out, 4 connector point around dance flooring for sale margin. The convex position is the internal silicon groove, which can be upgraded to IP67 waterproof.

undefined

5.There is iron sheet connector under the bottom of cheap dance floor rental, It means that dance floor carpet easy to install onto the wall or ceiling when they need to light on the background.
In a summary,Our light dance floor for KTV room Easy waterproof, Easy connect,Easy movement, Easy for rental business and wedding companies.

Control item


undefined
undefined
undefined
undefined
  •

    1.The control item of our star dance floor is SD control mode and PC control mode.

  •

    2.Customers can make any special effects via controller screen software.

  •

    3.Our controller has LCD DISPLAY SCREEN, that easy for customers to choose English or Chinese language.

  •

    4.Our dance floor chart controller accept to choose function to control dance floor theory brightness and speed.



    5.Interactive dance floor can switch with interactive or without interactive also choose the effect of animation.

  •

    6.Fashion dance floor can output voice when someone step on it.

  •

    Compare our dance floor controller with others, our controller easy to control suitable for any clients.

Waterproof test video

bg



undefined
undefined
undefined


The advantage of waterproof:

  •

    1. LED products can be easily damaged because of water vapour, our grass dance floor adopts ABS mould to achieve IP67 waterproof.

  •

    2. Dance floor plans can be used outdoors and it's suitable for performance, party, square lighting project and rental business.

  •

    3. Cascade dance floor with waterproof mould is suitable for spray pond, theme park, exhibition, commercial and artistic lighting. And CE Certification renee's dance floor has a life span of 100000 hours.

  •

    4. The waterproof design of various size dance floor collapse can prevent creepage and guarantee the safety of human life.

  •

    5. Dance floor hits is completely closed and dirty - resistant.

Wiring Introduction

bg
undefined

LED Dance floor connection instruction as follow:
1.The rental dance floor uses Black cable and White cable(2 in-2 out).Black cable means led dance floor power cable, White cable means led dance floor signal cable. Black connect to black and white connect to white then will be finished.

undefined

2.Easy installation led floor adopts aviation plug to prevent wrong connection when install.  Internal cable uses more than 1mm2*3 of cables so that safety led dance floor can work properly when tandem connection.

undefined

3.LED dance floor stage just need to follow the same color to be connected, in this case we can prevent wrong connection, save time for lighting installation and reduce problems to happen.

Fixed mode video

bg



undefined



Step 1: Get ready for customized dance floor tiles and fix connector.
Step 2: Insert highgloss night club dance floor into the lockhole at the bottom of mould.

The advantage of fixing interlock dance floor:
1. When led dance floors have been inserted into the lockhole, they are equidistant from each other, and it can protect them against movement also the glasses.
2. Cause of dismounting and installation for event, rental customers could save time for installing 3d optical illusions time tunnel led floor.
3. The way to fix  3d anti-static floor dance floors is convenient for hotel, club, KTV and bar customers.

undefined
undefined



Attached two pictures and videos for customers to understand:
Picture 1: Back view of 4 pcs infinity mirror dance floors which have been fixed
Picture 2: Side view of fixed connector

Factory test video

bg



undefined
undefined
undefined


Testing before delivery:

  •

    1.LED pcb mainboard will be test again and again, to protect flashing dance floor break from Pseudo Soldering.

  •

    2.Party Wedding dance floor will be white color test (Max current test) 24hrs.

  •

    3.IP67 waterproof version Remote control with DMX dance floor will be test under the water 12 hrs before delivery.

  •

    4.DJ lighting led dance floor will be clean again to keep them new before delivery.

We vg light factory advantage:

  •

    We vg light produce led furniture dance floor and sale Interlock dance floor wholesale directly, in order to help customers save money. In the mean while, we supply hardware and software support on time. Our Led Lighting Decoration dance floor suitable for the square ground decoration, park ground decoration, sidewalk ground decoration, building outdoor decoration, Wall background decoration, ceiling decoration, business square decoration, tourist resort decoration, KTV, Club etc.

Load bearing test video

bg


undefined

The introduction of load-bearing test
VGLIGHT led dance floor adopts 12MM tempered glasses for its surface and 1.5MM ABS mould for its bottom. Each 3d mirror floor panel can stand 500KG.

undefined

DIY light up dance floor can be used in underground car park, plaza square, disco club and car show.

Anti Impact video

bg



undefined

Anti impact

undefined

Anti Scratch

undefined

Defective glass

Ground brick light sensing video

bg


The sensor interactive led dance floor block will output music once person stand and touch on it by foot.

Product Certificate

bg


undefined
undefined
undefined
undefined
undefined
undefined

Product Applications

bg


undefined
undefined
undefined


undefined
undefined
undefined


Our several kinds of led dance floor is suitable for many application, such as square plaza floor, park floor, sidewalk floor, building wall decoration,bridge floor,highway floor,symbol building decoration, scenic area floor decoration,KTV floor,club floor, live show floor decoration etc.

Special Service

bg

1.According to customers’ pictures or videos to customize special 50*50cm 3d time tunnel dance floor.


undefined Induction 1
undefined Induction 2
undefined Induction 3
undefined Hand-drawn drawings


2.According to customers’ CAD drawing files to help them produce special size Hot recommend led dance floor.


undefined
undefined
undefined

3.According to customers’ Construction site, our engineer will wiring diagram before Construction installation.

undefined
undefined

4.According to customers’ requirement, we dispatch engineer to your place tech and help you install China high durability led disco floor.


undefined
undefined
undefined
undefined

5.According to customers’ requirement, we write special program to help customer display their DIY effects what they need.



undefined
undefined
undefined


Product Packaging

bg


undefined
undefined
undefined


undefined
undefined
undefined


LED dance floor packing description:

  •

    Theatrical Lighting led dance floor sample had better choose wood packing 1in1 or export carton 1in1;

  •

    The modular led dance floor packing cost from cheap to expensive but safety is Flight case, woodbox, export cartons, once you buy bulk order.

  •

    Especially, we suggest customers whom do business for rental or live show need to move anywhere,because of it's wheel easy to be movement.
