Product Parameters
Input Voltage | Led QTY | Resolution | Working temperature | Water proof |
AC90-240V | 25600 PCS GUOXING Brand | P6.25 L*W | -20~ +60℃ | iP67 |
Output Voltage | Refresh rate | Beam angle | Isolating Grade | Supporting weight |
AC90-260V | 400Hz | 120° | CLASSE II | 500KG/pc |
Power consumption | Brightness | Life Span | Surface Board | |
150W | 700CD/㎡ | ≥100000 hours | GLASS | |
Suit for variety of stage, dance halls, discos, bars, hotels, KTV, theaters, concerts and other entertainment. | ||||
Product effect video
Product Advantages

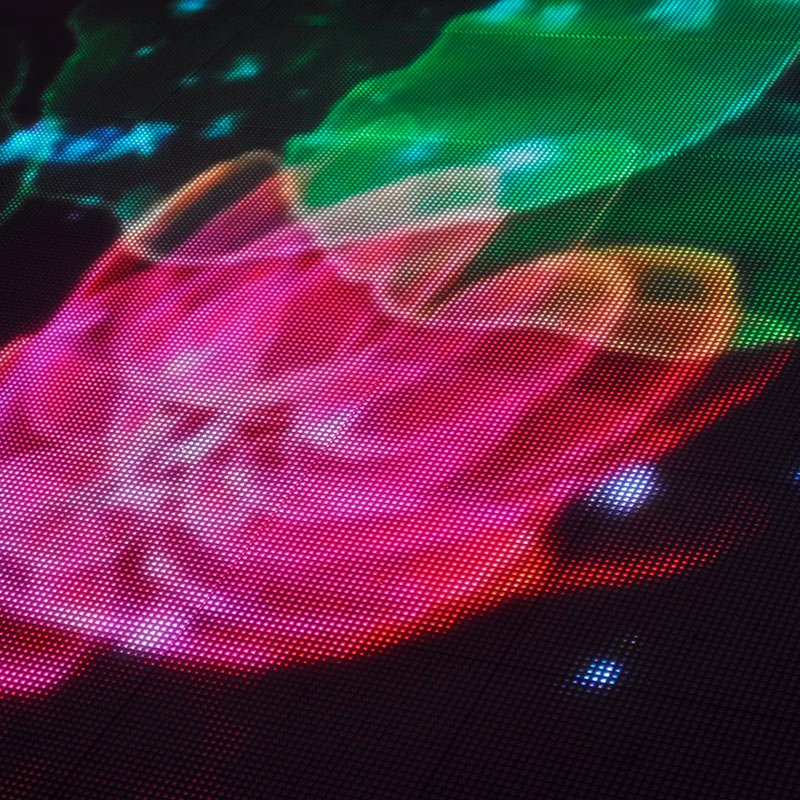

Effect of contrast
1.This great dance floor has 25600pcs/sqm LEDs,with its famous brand GUOXING brand 5050SMD.
2.VG LIGHTING portable led dance floor has the "lift feet",which is adjustable suitable for any place.
3.The surface of sensor tiles is special acrylic, that accept 500kg persons to stand.
Mould appearance
1. As you can see the lateral view of portable dance floor canada, cables hide inside the dance floor pattern mould base that facilitates customers to do rental business.
2. The bottom of dance floor : 2 cables-in and 2 cables-out, 4 connector point around led dance floor margin. The convex position is the internal silicon groove, which can be upgraded to IP67 waterproof.
3. There is iron sheet connector under the bottom of XXXX, It means that XXX easy to install onto the wall or ceiling when they need to light on the background.
In a summary,Our dance floor mirrors for KTV room Easy waterproof, Easy connect，Easy movement, Easy for rental business and wedding companies.
Control item
1.Replace the receive card without loading: When the receiving card fails, replace it with a new receive card without loading the original driver.
2.Larger more signal receiving area:The normal receiving card is generally loaded with 256X128, but we can carry 768X128 max.
3.High refresh:Static refresh can go up to 10000hz, 8 sweep refresh can go up to 4000hz.
4.Maximum brightness in the same parameter:In the same parameter (refresh, grayscale, shift clock), our controller system has the minimum brightness loss and the maximum brightness of the screen.
5.Gray degree less loss:When the brightness of the screen is decreased, the gray degree less loss and the image effect is still the best.
6.Chromaticity, brightness correction less loss, does not affect carrying the signal area.
7.Any special size is in control: vglight powerful control software (LEDCAD), which can simulate the same shape screen.
8.Multi-play window software easy to set:The control software can be set in 99 Windows, so that customers can control multiple screens.
9.Color space conversion chromaticity compensation (chromatic reduction):The color of similar products on the market is generally reddish, the use of the vg control system can achieve the perfect color reduction, unbiased color, fine screen, soft and not dazzling.The technology has been widely used in CCTV LED displays, overseas projects and TV studios.
10.Dual backup of DVI signal:The system not only has the network line, the card double backup, also can carry on the double backup to the DVI signal, increases the stability.
Waterproof test video
The advantage of waterproof:
1. LED products can be easily damaged because of water vapour, our floor lock dance floor adopts ABS mould to achieve IP67 waterproof.
2. Wholesale IP67 waterproof used marley floor can be used outdoors and it's suitable for performance, party, square lighting project and rental business.
3. IP67 usa dance floor with waterproof mould is suitable for spray pond, theme park, exhibition, commercial and artistic lighting. And CE Certification sico portable dance floor has a life span of 100000 hours.
4. The waterproof design of various size 3d dance floor can prevent creepage and guarantee the safety of human life.
5. Dance floor alternatives dance floor is completely closed and dirty - resistant.
Wiring Introduction
LED Dance floor connector instruction as follow:
1.The rental dance floor uses Black cable and White cable(2 in-2 out).Black cable means led dance floor power cable, White cable means led dance floor signal cable. Black connect to black and white connect to white then will be finished.
2.Easy installation led floor adopts aviation plug to prevent wrong connection when install. Internal cable uses more than 1mm2*3 of cables so that safety led dance floor can work properly when tandem connection.
3.China dance floor stage just need to follow the same color to be connected, in this case we can prevent wrong connection, save time for lighting installation and reduce problems to happen.
Fixed mode video
Step 1: Get ready for customized dance floor tiles and fix connector.
Step 2: Insert highgloss night club dance floor into the lockhole at the bottom of mould.
The advantage of fixing interlock dance floor:
1. When led dance floors have been inserted into the lockhole, they are equidistant from each other, and it can protect them against movement also the glasses.
2. Cause of dismounting and installation for event, rental customers could save time for installing 3d optical illusions time tunnel led floor.
3. The way to fix 3d anti-static floor dance floors is convenient for hotel, club, KTV and bar customers.
Attached two pictures and videos for customers to understand:
Picture 1: Back view of 4 pcs infinity mirror dance floors which have been fixed
Picture 2: Side view of fixed connector
Factory test video
Testing before delivery:
1.LED pcb mainboard will be test again and again, to protect flashing dance floor break from Pseudo Soldering.
2.Party Wedding dance floor will be white color test (Max current test) 24hrs.
3.IP67 waterproof version Remote control with DMX dance floor will be test under the water 12 hrs before delivery.
4.DJ lighting led dance floor will be clean again to keep them new before delivery.
We vg light factory advantage:
We vg light produce led furniture dance floor and sale Interlock dance floor wholesale directly, in order to help customers save money. In the mean while, we supply hardware and software support on time. Our Led Lighting Decoration dance floor suitable for the square ground decoration, park ground decoration, sidewalk ground decoration, building outdoor decoration, Wall background decoration, ceiling decoration, business square decoration, tourist resort decoration, KTV, Club etc.
Load bearing test video
The introduction of load-bearing test
China ce led dance floor adopts 12MM tempered glasses for its surface and 1.5MM ABS mould for its bottom. Each 3d mirror floor panel can stand 500KG.
DIY light up dance floor can be used in underground car park, plaza square, disco club and car show.
Anti Impact video
Product Certificate
Product Applications
Our several kinds of led dance floor suitable for many application, such as square plaza floor, park floor, sidewalk floor, building wall decoration,bridge floor,highway floor,symbol building decoration, scenic area floor decoration,KTV floor,club floor, live show floor decoration etc.
Special Service
1.According to customers’ pictures or videos to customize special 50*50cm 3d time tunnel dance floor.
Induction 1
Induction 2
Induction 3
Hand-drawn drawings2.According to customers’ CAD drawing files to help them produce special size Hot recommend led dance floor.
3.According to customers’ Construction site, our engineer will wiring diagram before Construction installation.
4.According to customers’ requirement, we dispatch engineer to your place tech and help you install China high durability led disco floor.
5.According to customers’ requirement, we write special program to help customer display their DIY effects what they need.
Product Packaging
Digital dance floor packing description:
Theatrical Lighting led dance floor sample had better choose wood packing 1in1 or export carton 1in1;
The modular led dance floor packing cost from cheap to expensive but safety is Flight case, woodbox, export cartons, once you buy bulk order.
Especially, we suggest customers whom do business for rental or live show need to move anywhere，because of it's wheel easy to be movement.
