390mm aluminum alloy spigot triangular truss
Click on the image to view the original image
Product: views:11390mm aluminum alloy spigot triangular truss
three cross-section width: 390mm

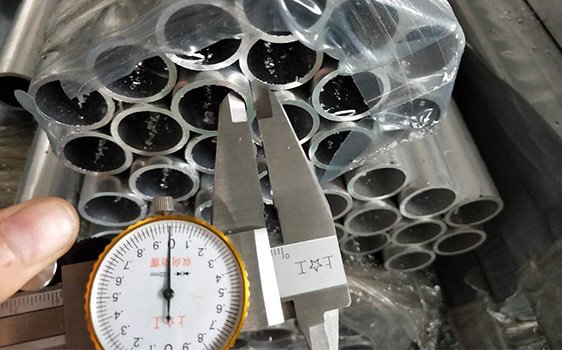

supervisor: Φ50*3mm
inclined tube: Φ25*2mm
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-09-03 08:44
  Negotiated
Product Details

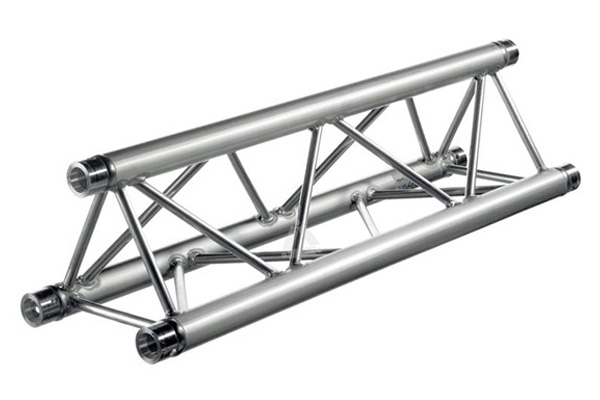

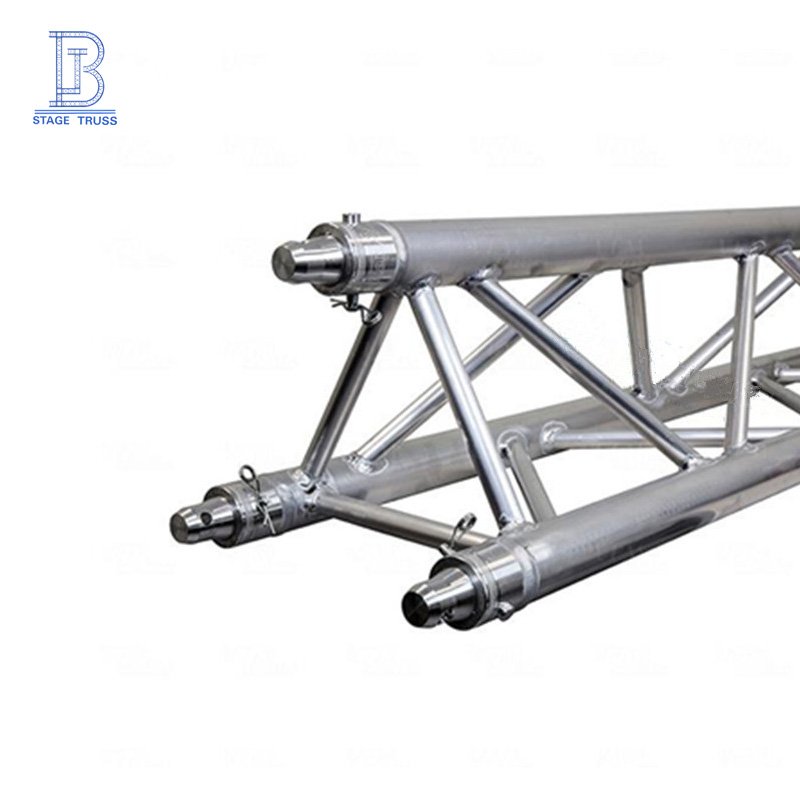

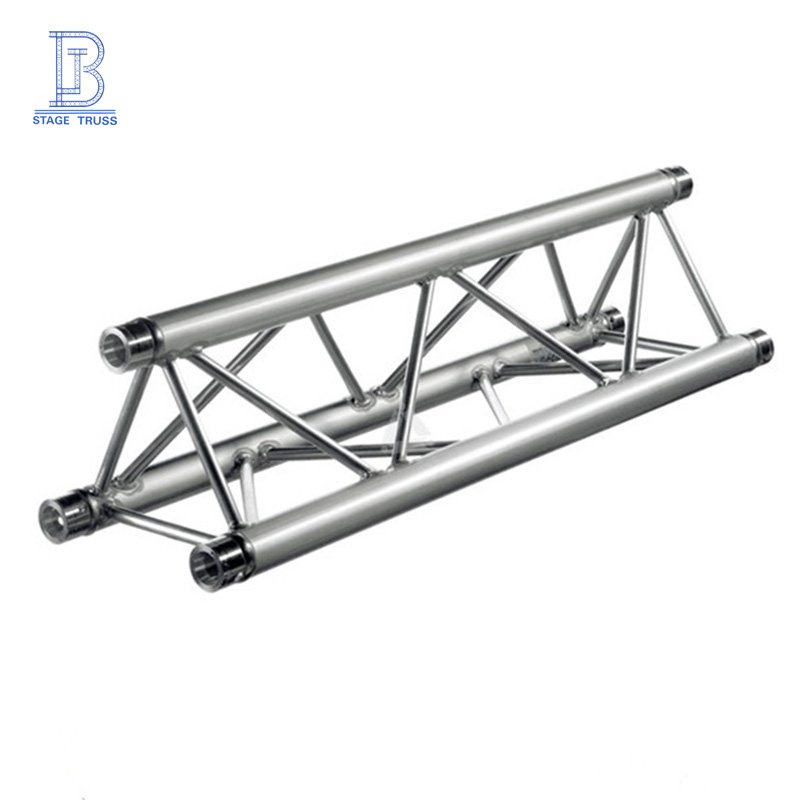

Aluminum alloy spigot  triangular truss




undefined

The CXS390  triangular truss designed as a medium-duty truss system, This system is connected via a special conical connector with excellent strength and stability creating optimal traction, convenient for assembly and collection. All the tubes and connectors welding through the mould of semi-automatic, the finished products are fixed in the standard mould welding can be guarantee the accuracy of truss. n any conditons connect smoothly.





Features
undefined

Suitable for use on roof truss inclined beams.

Easy to build and move.

undefined

Suitable for mild weather when used outdoors.

Qualified tensile strength, durable.

undefined

Not rust-prone, recyclable, recyclable.

Please use within the load-bearing range.

Package size &  Bearing table


Package size, volume


Length

Dimension

CBM

weight

0.5m

L55xW41xH27cm

0.08m³

4.9kg

1m

L105xW41xH27cm

0.15m³

8.0kg

2m

L205xW41xH27cm

0.30m³

12.6kg

3m

L205xW41xH27cm

0.45m³

17.8kg

4m

L405xW41xH27cm

0.61m³

21.3kg

Bearing table


Span

6m

8m

10m

12m

14m

16m

18m

20m

CPL in kg

580

429

335

270

220

185

155

130

UDl in kg

969

712

550

447

368

305

258

210

After sales instructions

Thank you for your interest in our products. We provide a variety of aluminum alloy stage trusses and stage solutions for concerts, trade shows, runways, theaters, stores, competitions, nightclubs, T-Taiwan and more. Do you plan to hold outdoor events and large-scale exhibitions? We are ready to provide solutions to meet your needs, we give customers timely response, qualified products, on time delivery and good after-sales service.


Our professional and experienced team members are happy to provide each customer with the highest level of customer service, we strive to provide a good customer experience, help you choose the right number and size of stage trusses and accessories, due to our professional transport agents, We can arrange goods to almost all ports in the world. For some regions/countries, we can even provide door-to-door transportation services if the policy is feasible.


  •

    1. Regular delivery time is 5-45 days. For customized products, the delivery time will be slightly longer depending on the complexity. The date of transportation will depend on the port of destination.

  •

    2.You can provide installers with installation instructions.

  •

    3.For the quality issues during the warranty period, the buyer will provide free replacement of components.

  •

    4.For issues that are not covered by the warranty, we only charge for the attachment.

  •

    5.If you have any questions or questions about the product, please contact us.
