Suitable for outdoor and indoor venues.
Easy to build and move.
Suitable for mild weather when used outdoors.
Qualified tensile strength, durable.
The grid is not easy to rust and can be recycled.
Please use within the load-bearing range.
Different between our modular riser stage from others, Aluminum alloy stage frame material。Non-skidding birch plywood with heavy load capacity Flight case package for easy transportation & storage No gap connection.
The stage which we have manufactured easy to constructure kinds standard sizes and shapes, suitable for dance floor, concert stage, party, performance exhibition and display booth and others. matched with accessories make it transformed fast and easy, practically without using tools. the stage platform material used aluminium, the film faced used plywood 15/18/20mm which featured as waterproof and durable to warranty reach our standard max load capacity,The accessories including: connect for legs, adjustable legs(adjust height).which make it easy to match with stairs and rails according to different functions.

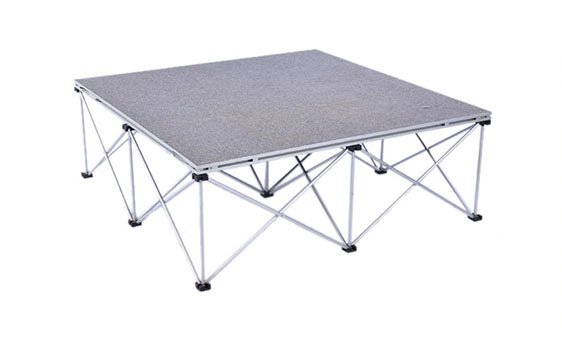

Type: Stage
dimensions:200cmx100cm
height(adjustable):150cm
max load:750kg/m
top:Plywood(15/18/20mm)
weight:35kg
storage height:10cm
platform material:aluminiu
The front side of plywood is waterproof antiskid, back side is waterproof and with high density multiply plywood, thickness 15/18/20mm have black and brown color.
The universal leg fitting can hold round legs and fixates with one simle handle
Adjustable legs
The stage legs are adjustable and fitted to the deck frame and are fixed in position by one simple handle, no need tools, set up easily.
The leg to leg clamp that connects two legs the clamp is easily mounted, tools are not required. It will absorb the horizontal forces on the stage floor and guarantee a close fit of the desks.
The leg to leg clamp that connects four legs the clamp is easily mounted, tools are not required. It will absorb the horizontal forces on the stage floor and guarantee a close fit of the desks.
Stage
Stage use the most commonly for the 15/18/20mm waterproof antiskid plywood by a set of bolts which allow removal maintence and replacement over the life of the deck If you want to have the light effect under the stage that Acrylic or Glass stage is the most suitable The light can transmission of it.
Connector
Stage connector not only keep the stage Ige floor exactly level,Also can make effective strong connections between the decks,The connector slides into the four sides then is fixed with the aid of a simple hex key. When the stage legs much low or the stage curved, the legs can not fixed together and unstable.This type connector will have good stable effect for that
Stairs
This type angle of the stairs can adjust It varies with the height of the stage Better for maintence and replacement The bolt on the stair deck also allow removal.
