Home > Products > beam moving head light 260w

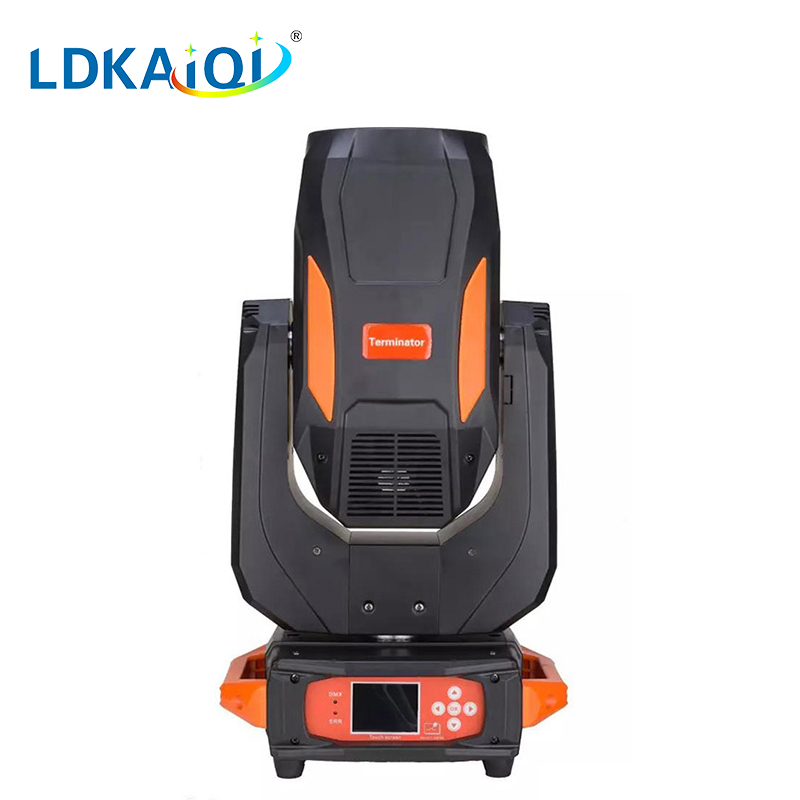

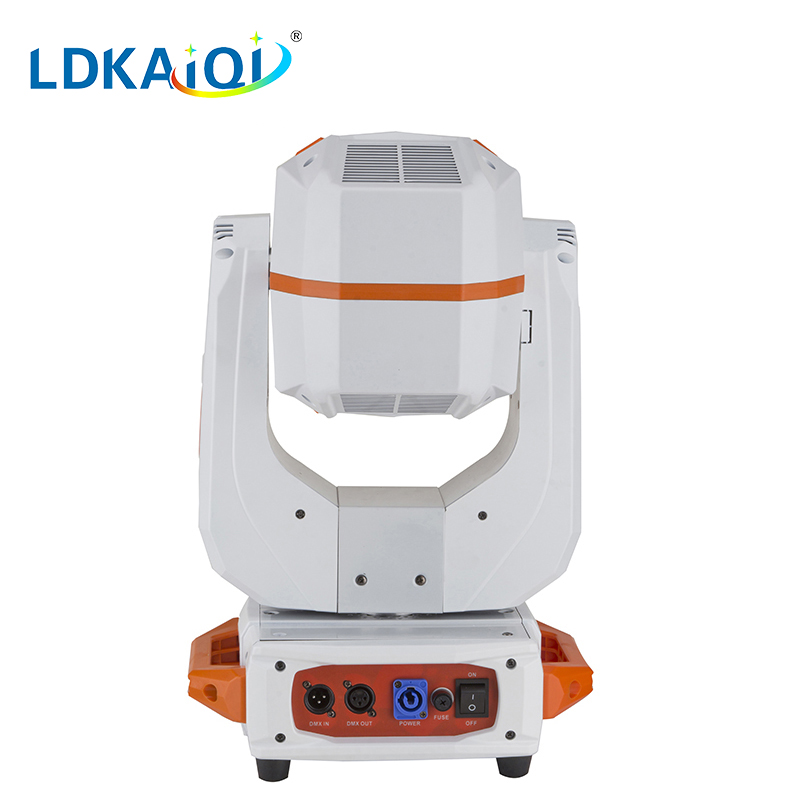

beam moving head light 260w
Click on the image to view the original image
Product: views:10beam moving head light 260w
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-09-03 08:44
  Negotiated
Product Details


❈ Product Parameters ❈

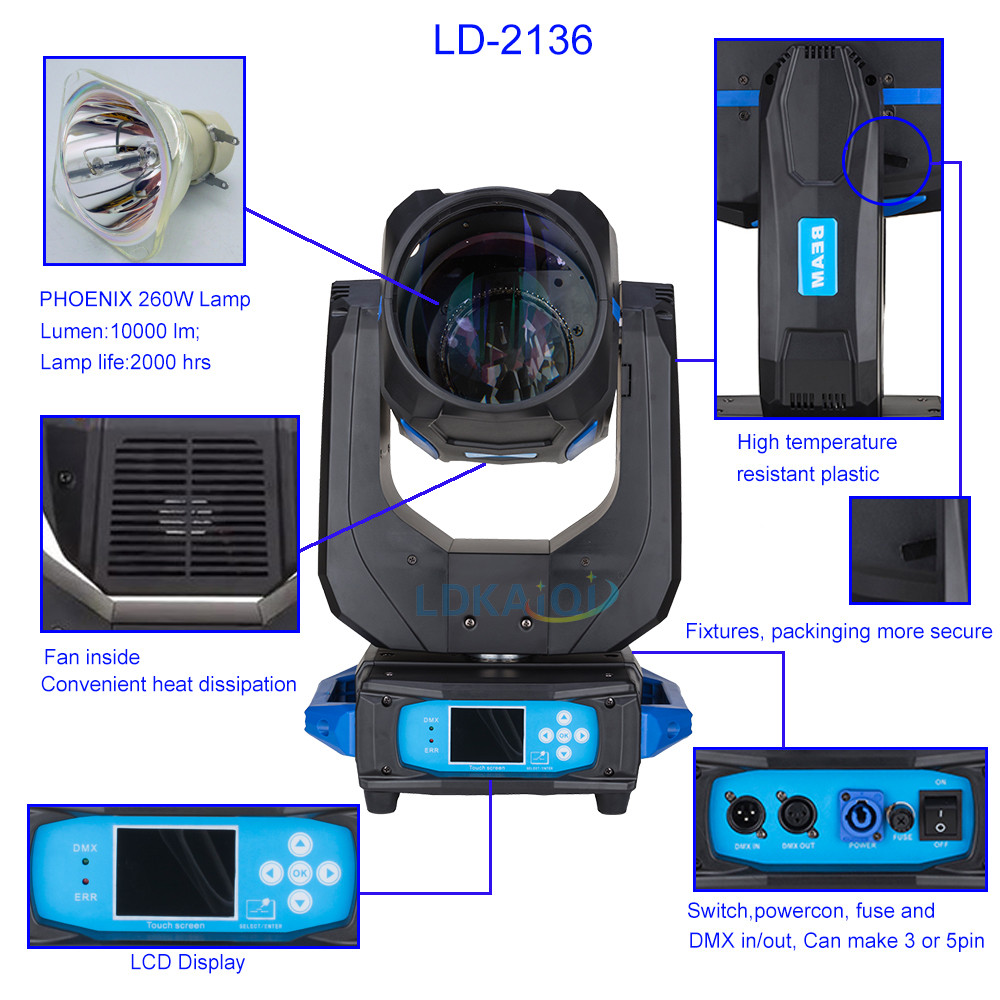

MODEL

  • ◆ LD-2136

POWER SUPPLY

  • ◆ AC100V-240V/50-60Hz

  • ◆ Power 375W

OPTICS

  • Lamp: PHOENIX 260W

  • Color Temperature(CCT): 8500K

  • Average lifetime: 2,000 hour (pack lamp & reflection cup to lengthen lifetime)

  • Beam angle: 0-3.8 degree

MOVEMENT

  • Scanning speed: X to 2.6 seconds / 540 degrees, Y to 1.24 seconds / 270 degrees (16Bit precision scan), Automatic calibration positioning, fast & stable & noiseless.

COLORS/GOBOS

  • Fixed color: 11 color + white, halftone effect adjustment

  • Color wheel: with 14 colors + blank (to create a sharp beam effect)

  • Gobo: 17 fixed patterns + blank (change the shape of beam)

EFFECTS

  • Prisms: 8-facet prism + Honeycomb prism (2 prisms can be superimposed to 40, can be two-way independent rotation)
    Frost/Atomization: independent frost effect, spot soft and natural

  • Prisms: 8-facet prism + Honeycomb prism.Adjustable rotating angle, max. opening angle of 60 degrees, combined with the pattern function can be achieved separately: 8 +24 +48 beam effect (switchable) ,with two-way independent slow/fast rotation function.

  • Frost: Soft light effect, easy to achieve the effect of soft and fantasy pattern

  • Focus: 3 sets optical lens combination, beam effect is much better than normal ones,can cast a high-definition pattern

CONTROL

  • Channel: 18CHs

  • Standard control signal: DMX512

  • Control mode: international standard DMX512, automatic and master/ slave mode

HOUSING

  • Surface: High temperature resistant plastic

  • Color: black/ orange/ blue/ white

  • IP Rating: IP20

SOFTWARE FACILITIES

  • Overheating intelligent protection.

  • Intelligent light bulb switch control (to extend the lamp lifetime)

HARDWARE FACILITES

  • Fuse: 7A

  • Ballast: Electrical

  • Motors: 14 super mute motors, XY three-phase motor

  • LCD: LCD 65 million color touch TFT interface, easy to operate, high-definition screen, the interface can be 180 degrees reverse display.

DIMMER/STROBE

  • Strobe: two-piece strobe (0.5-9 times / sec), complete linear dimming and variable strobe speed.

SIZE
  • Size: 320*220*580mm (LWH)

WEIGHT
  • Net Weight: 14.8kg


❈  PRODUCT EFFECT ❈




❈ Production workshop ❈
