Guangzhou Longdi Light Equipment Technology Co., Ltd

POWER SUPPLY

• ◆ AC 110/230V 50-60Hz±10%

• ◆ Power 200W

SPECIFICATION

• ◆ Led: Cree 200W LED

• ◆ Color : White

• ◆ Beam angle: 15/20/25 degree

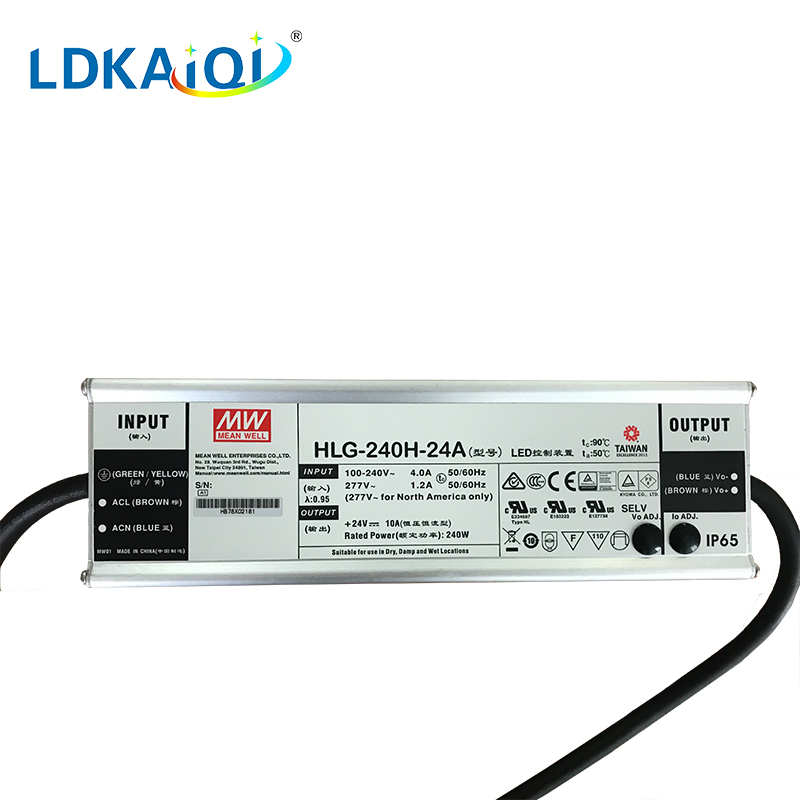

• ◆ Supply power: MEANWELL IP65

• ◆ Working place: outdoor

• ◆ Projection distance: 60m

• ◆ LED life: 30000h

• ◆ Luminous flux: 17000Lm

• ◆ Color temperature: 6000K

• ◆ Gobo size: 67/46mm

LENS PARAMETERS

• ◆ The distance between the 20-degree lens and the imaging length ratio is 1:0.35, which is 0.35 meters for 1 meter, 1.05 meters for 3 meters, and so on.The 15 degree lens is 1:0.25, the 25 degree lens is 1:0.45, and the default is a 20 degree lens.

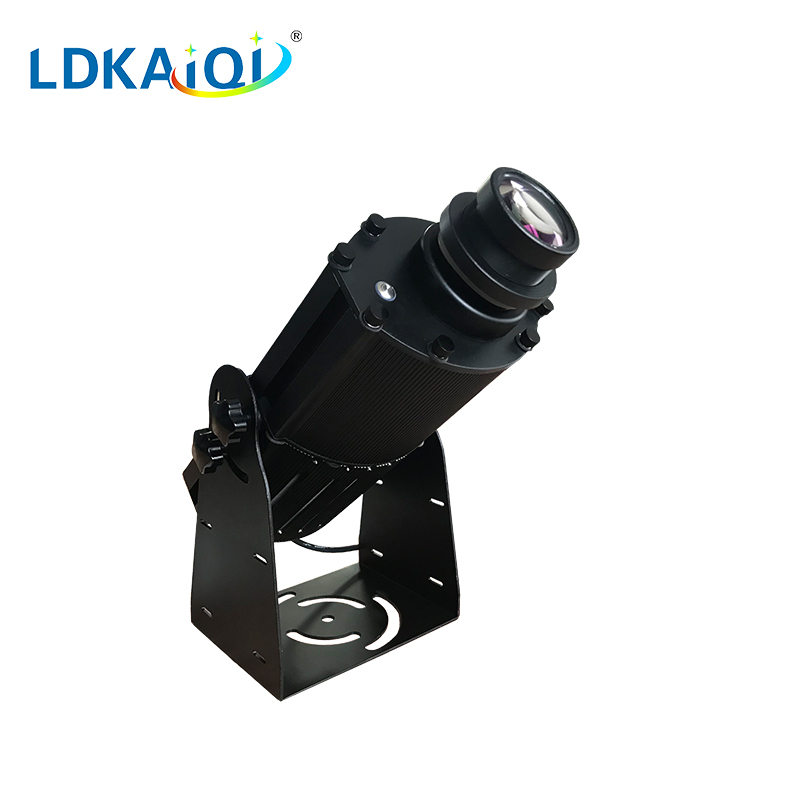

• ◆ Surface: All aluminum alloy metal casing

• ◆ Color: black

• ◆ IP Rating: IP65

• ◆ All-aluminum metal casing, high structural strength, lacquer or sandblasted oxidation, available in black, silver and white.

• ◆ The lamp itself is waterproof IP65 and can be directly installed outdoors.

• ◆ Heat pipe and air-cooling technology keeps the chip cool at all times, maximizing chip illumination and greatly delaying chip life

• ◆ CREE high power LED

• ◆ 5-piece wide-angle lens, the image is clear and natural, the imaging length is 50% larger, and the imaging area is 1 times larger.

• ◆ The pattern can be rotated and has a switch control

• ◆ Lamp projection direction can be adjusted freely

• ◆ Can project a pattern, the projection content can be customized, you can manually change the pattern

SIZE

• ◆ 40*25*30cm (Product)

• ◆ 64*54*24cm (Carton)

WEIGHT

• ◆ Net Weight: 6.7kg

• ◆ Gross Weight: 17kg
