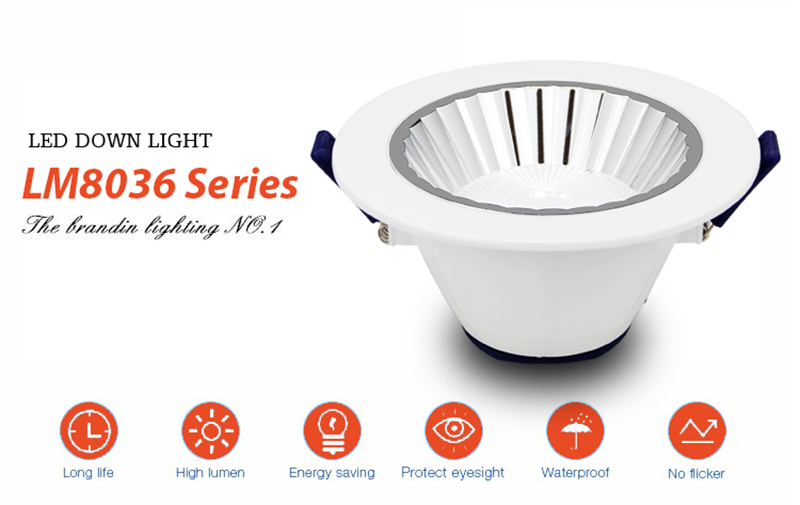

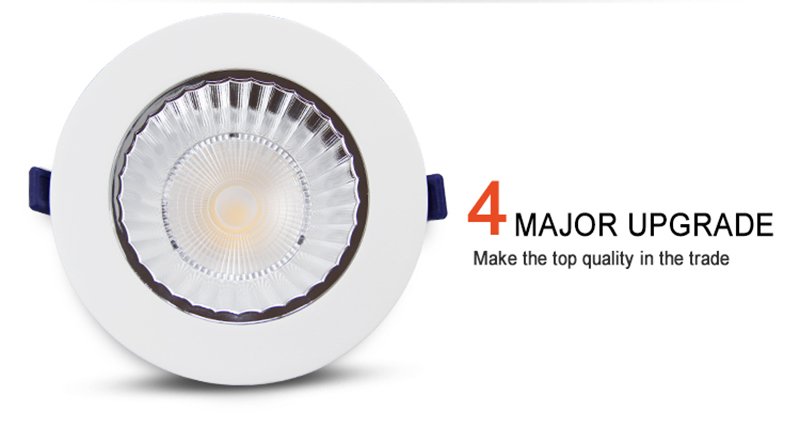

Professional design

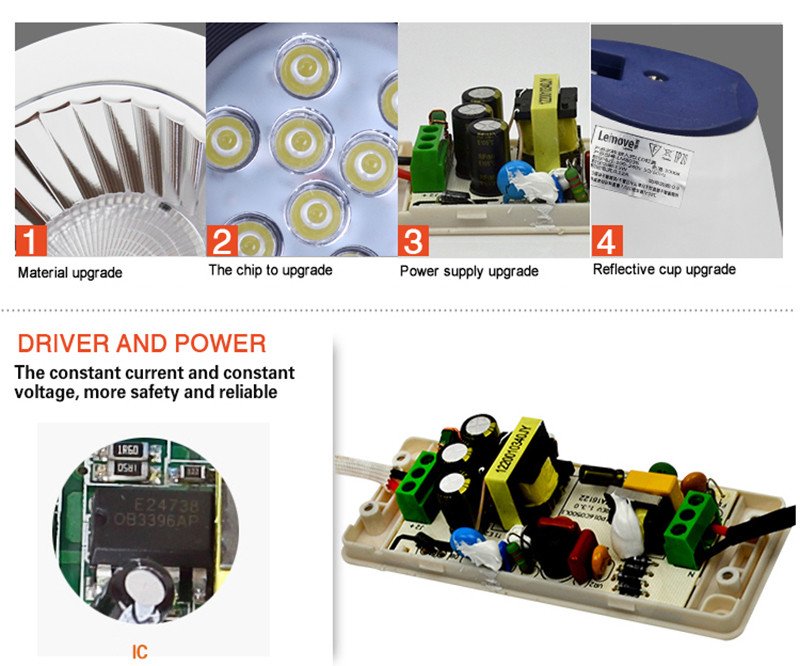

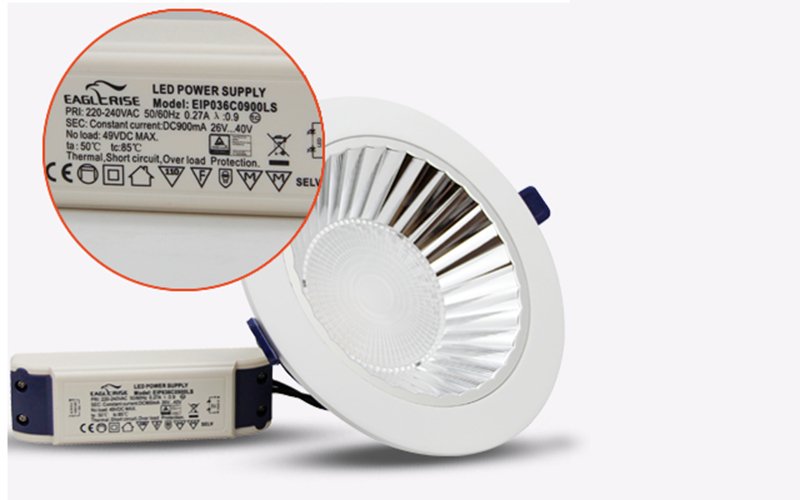

Professional design, high reflective aluminum cup, with leimove high efficiency CC driver, the whole light will be truly achieve high performance, economic and environmrnt-friendly.
| Product Parameter | |||
| Item NO: | LM8036 | LED chip: | Cob |
| LED lamp shape: | Round | Finishing color: | Matte White |
| Luminous flux: | 400/800/1200/1600 | Power: | 5W/10W/15W/20W/25W/30W |
| Color Temperature: | 3000K/4000K/6000K | Certificates | CE, GS, CB,ROHS,CCC,SASO |

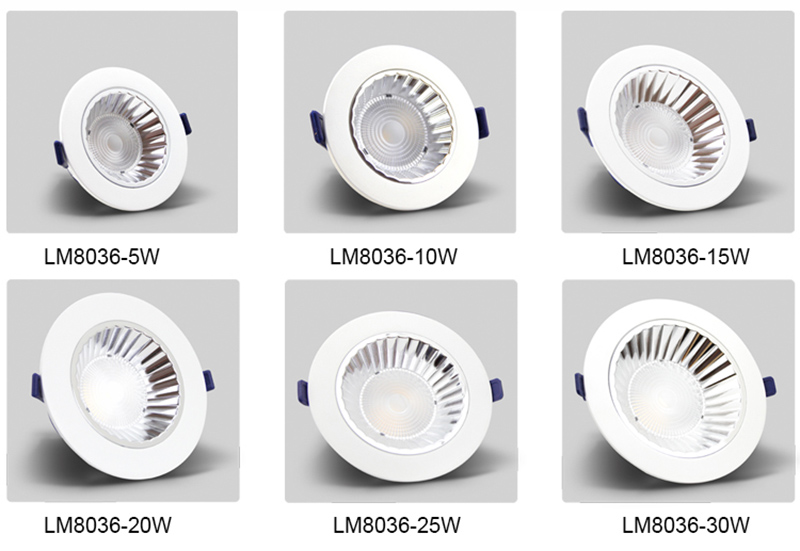

◆ Product show
| Model | Power | Voltage | Lumious flux | CRI | CT | Size | Installation Size |
| LM8036 5W | 5W | AC100-240V | 400m | RA≥80 | 3000K/4000K/6000K | Φ100xH55mm | Φ75mm |
| LM8036 10W | 10W | AC100-240V | 800lm | RA ≥80 | 3000K/4000K/6000K | Φ120xH62mm | Φ95mm |
| LM8036 15W | 15W | AC100-240V | 1200lm | RA ≥80 | 3000K/4000K/6000K | Φ140xH71mm | Φ120mm |
| LM8036 20W | 20W | AC100-240V | 1600lm | RA≥80 | 3000K/4000K/6000K | Φ160xH78mm | Φ140mm |
| LM8036 25W | 25W | AC100-240V | 2000lm | RA≥80 | 3000K/4000K/6000K | Φ185xH90mm | Φ160mm |
| LM8036 30W | 30W | AC100-240V | 2400lm | RA≥80 | 3000K/4000K/6000K | Φ220xH105mm | Φ205mm |
◆ Product Details

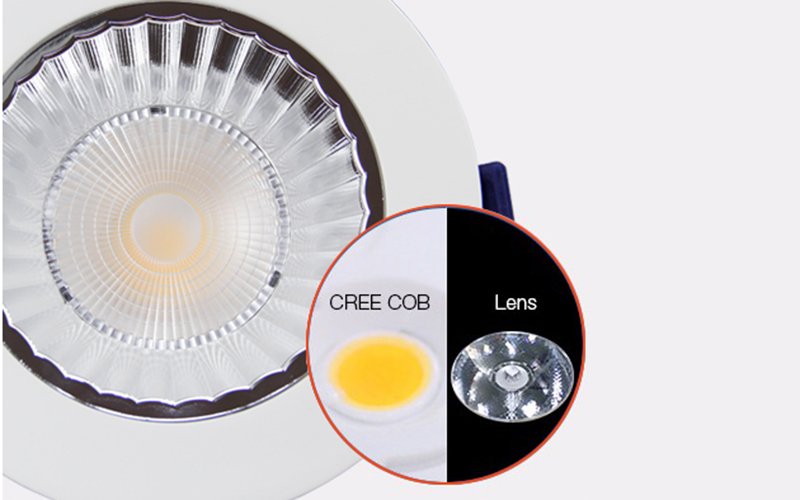

Exclusive lens desian
-With more than 300lm/ output of luminous flux. above 2000lUX central Intensity, above 80 color rendering index, stable color temperature 6000K.

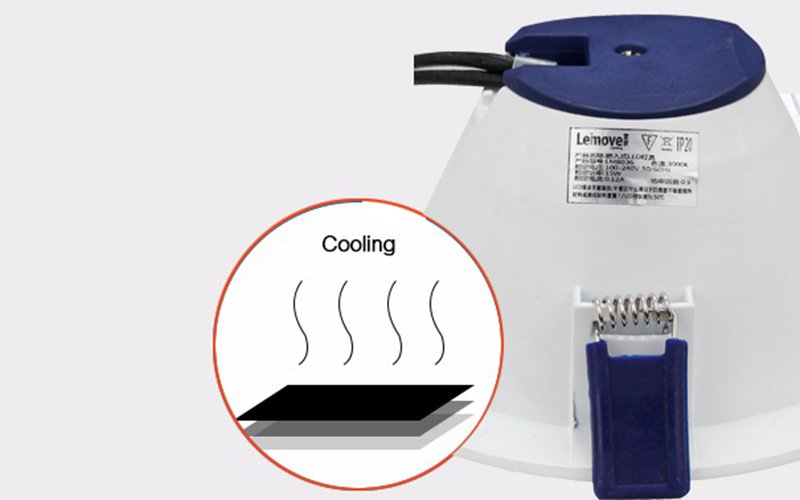

Sie-casting aluminum radiator
-LED itself and the heat removal of power module determine the led life and its performance Led base plate oirecthy passes the heatremoval area)to achieve optimal heat removal. in addition, led design,which maxmiizes therma resisitance, prolongs the led life.
1.uniform light and low temperature rising.
2.sie-casting aluminum radiator
3.Exclusive lens design
4.high cri
5.Luminaire efficency
6.Brightness equivalent to conventional fixtures
◆ our advantage
high cri
-selecting the high cri led,it creates an comfortable lighting environment;It can be used to various application,realise the color,increase the charm of room.
Long life and high reliability
-select according to the usual settins for the full temperature range designed to ensure high reliability life,to improve the reliability of the lamp to contribute.
◆ Lighting Figure

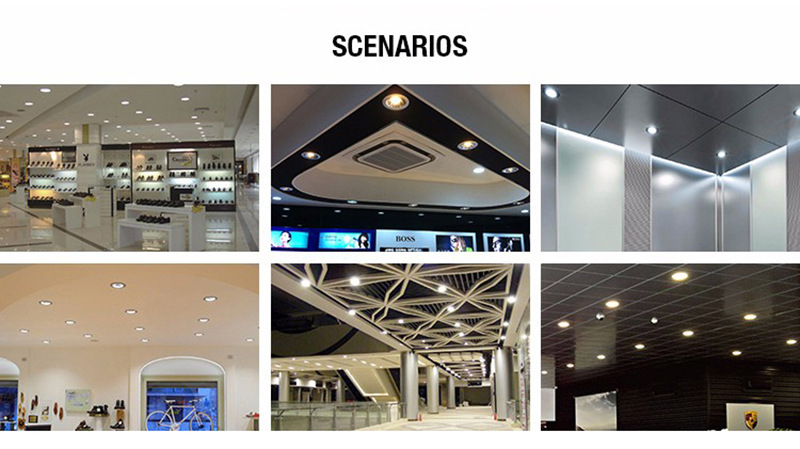

◆ Scene Show

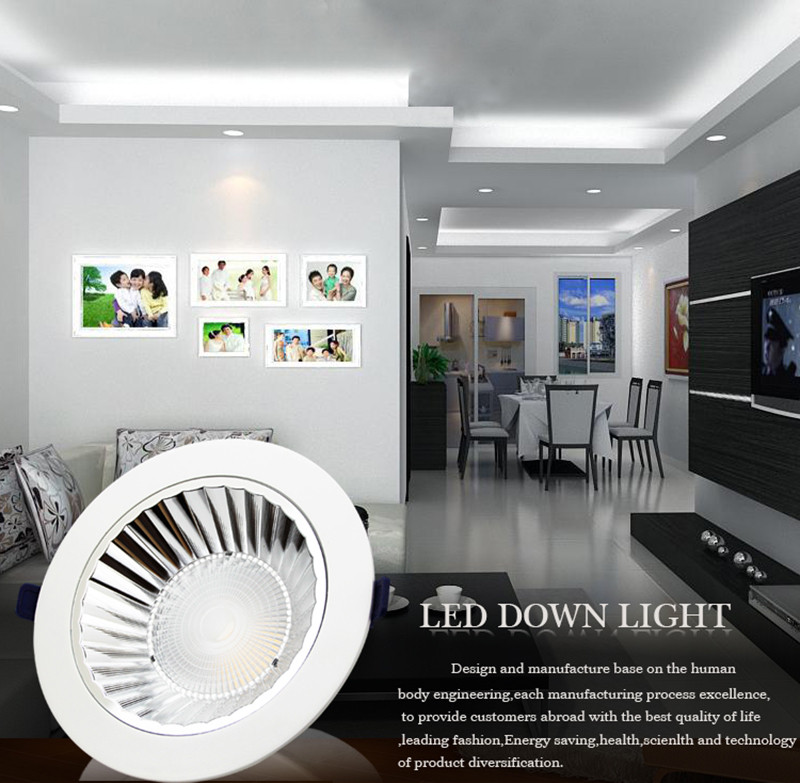

This series of products are suitable for office buildings,shoppingmalls, home and other basic lighting areas,it's for the replacement of 4inch,6inch and 8inch traditional fluorescent fog lamp;
