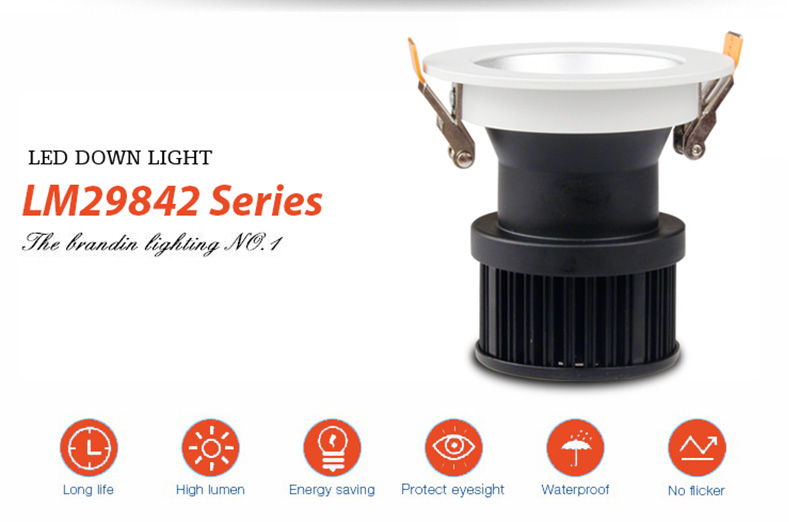

Professional design
Professional design, high reflective aluminum cup, with leimove high efficiency CC driver, the whole light will be truly achieve high performance, economic and environmrnt-friendly.
| Product Parameter | |||
| Item NO: | LM29842 | LED chip: | Cob |
| LED lamp shape: | Round | Finishing color: | Matte White |
| Luminous flux: | 800 Lm | Power: | 15W |
| Color Temperature: | 3000K/4000K/6000K | Certificates | CE, GS, CB,ROHS,CCC,SASO |

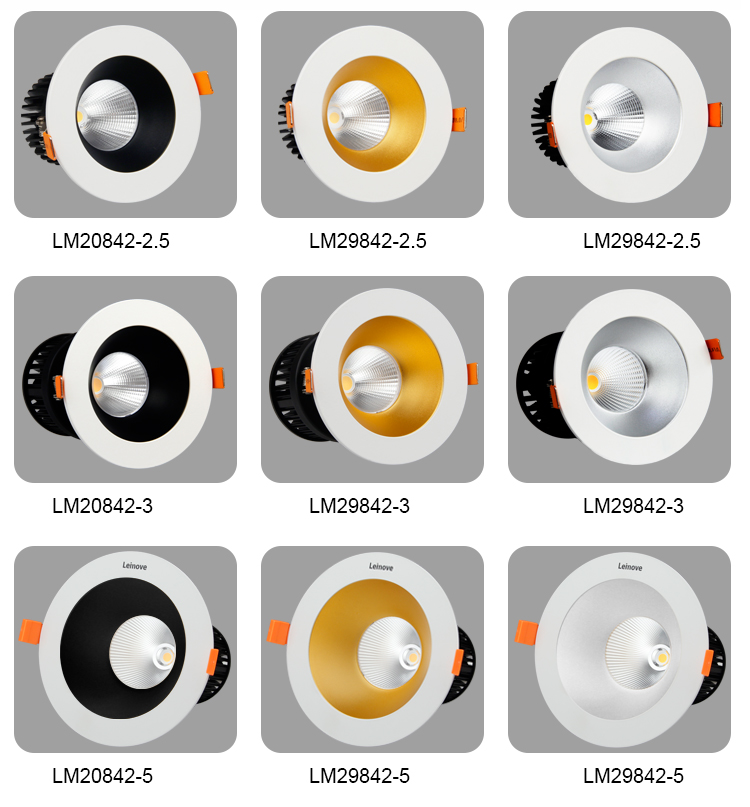

◆ Product show
| Model | Power | Voltage | Lumious flux | CRI | CT | Size | Installation Size |
| LM29842-2.5 | 6W | AC100-240V | 400m | RA≥ 90 | 3000K/4000K/6000K | Φ95xH85mm | Φ78mm |
| LM29842-3 | 10-15W | AC100-240V | 800lm | RA≥90 | 3000K/4000K/6000K | Φ105xH105mm | Φ90mm |
| LM29842-4 | 20W | AC100-240V | 1600lm | RA≥90 | 3000K/4000K/6000K | Φ135xH130mm | Φ120mm |
| LM29842-5 | 25W | AC100-240V | 2000LM | Ra≥90 | 3000K/4000K/6000K | ￠180*H148mm | ￠160mm |
◆ Product Details
-Using PMMA lens,light uniformity and soft,no glare interference for looking while lighting;
-Using die-cast aluminum heat sink structure,simple and generous appearance,it is more convenient for replacement while it is consisitent with the cut size of regular fluorescent lamps;
-Using isolation,low voltage constant current driver,with anti-over current, over voltage and output short circuit protection,safe,stable and reliable us age;Can be switched on and off frequently,no flicker,can be connected to emergency device.
Exclusive lens desian
-With more than 300lm/ output of luminous flux. above 2000lUX central Intensity, above 80 color rendering index, stable color temperature 6000K.
Sie-casting aluminum radiator
-LED itself and the heat removal of power module determine the led life and its performance Led base plate oirecthy passes the heatremoval area)to achieve optimal heat removal. in addition, led design,which maxmiizes therma resisitance, prolongs the led life.
1.uniform light and low temperature rising.
2.sie-casting aluminum radiator
3.Exclusive lens design
4.high cri
5.Luminaire efficency
6.Brightness equivalent to conventional fixtures

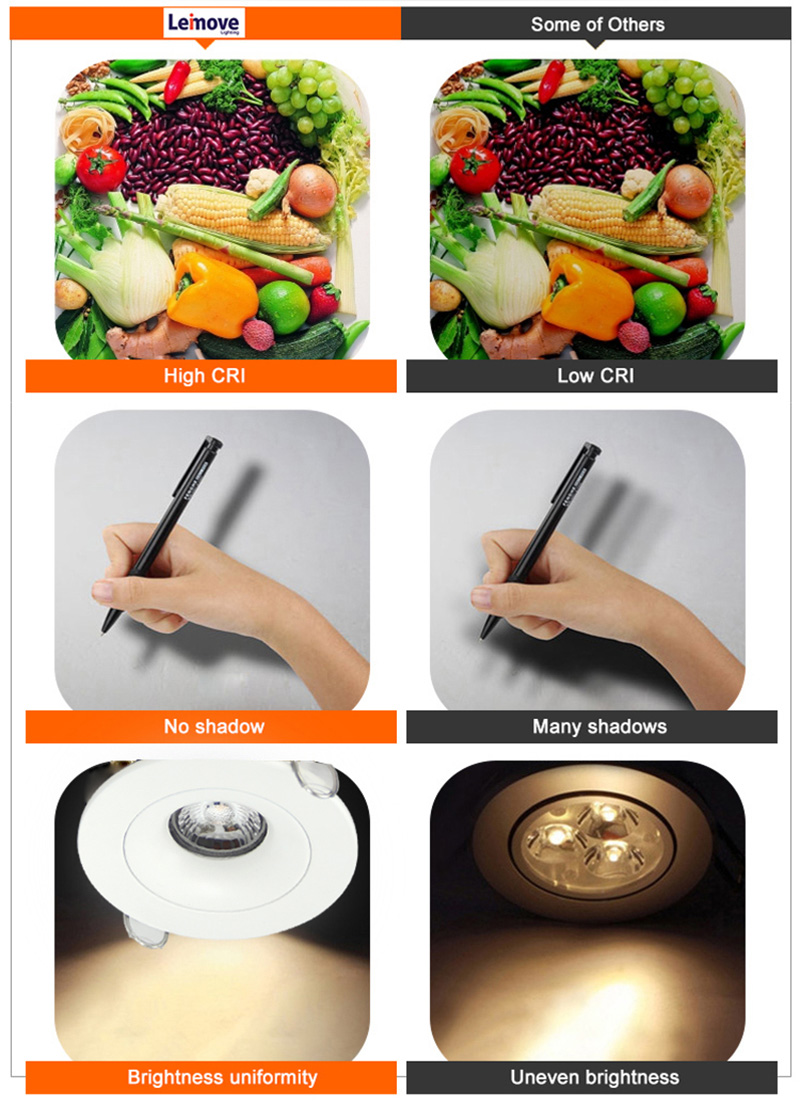

◆ our advantage
high cri
-selecting the high cri led,it creates an comfortable lighting environment;It can be used to various application,realise the color,increase the charm of room.
Long life and high reliability
-select according to the usual settins for the full temperature range designed to ensure high reliability life,to improve the reliability of the lamp to contribute.
◆ Lighting Figure

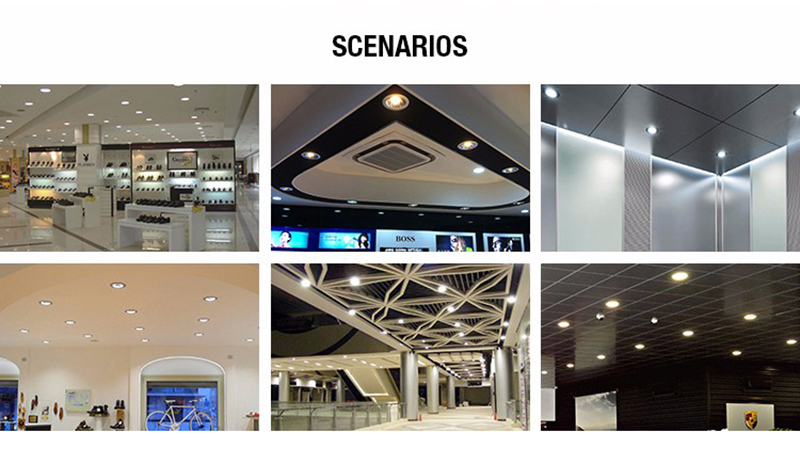

◆ Scene Show
This series of products are suitable for office buildings,shoppingmalls, home and other basic lighting areas,it's for the replacement of 4inch,6inch and 8inch traditional fluorescent fog lamp;
◆ Terms of Trade
Payment&Shipping
1.Payment: 30% advance payment by TT, 70% balance should be paid off before loading.
2.FOB and EXW all are available.
3.Production lead time:20-35 days.
4.Sample can be delivered in 3-5 days.
5.Shipping freight are quoted under your requests.
6.Loading port: Shenzhen or Guangzhou, Zhongshan etc. Mainland China.
7.Discounts are offered based on large quantities.
2.FOB and EXW all are available.
3.Production lead time:20-35 days.
4.Sample can be delivered in 3-5 days.
5.Shipping freight are quoted under your requests.
6.Loading port: Shenzhen or Guangzhou, Zhongshan etc. Mainland China.
7.Discounts are offered based on large quantities.
◆ Our Service
◪ Your inquiry related to our products or price will be replied within 24 hours. |
◪ All your inquiries will be well explained by our experienced staff. |
◪ OEM&ODM,also provide customized service. |
◪ Distributorship is available for your unique design and some our current models. |
◪ We will keep secret for customer sale area,design ideas and all other private information. |
