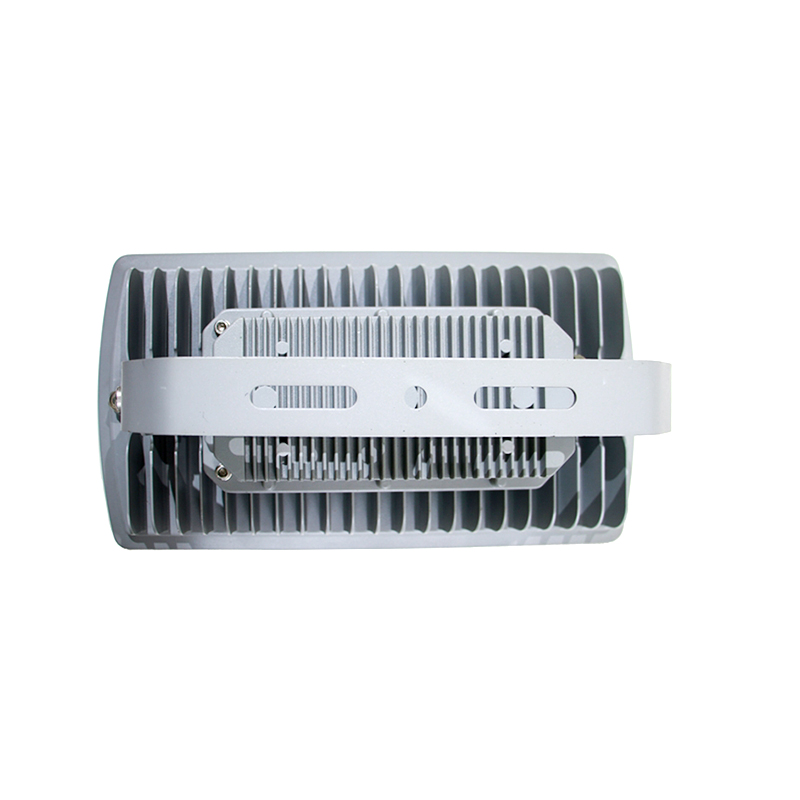

LED Tunnel light housing
LED Tunnel light housing
Description of 60W Led Tunnel Light Housing
Product Type | 60w LED Tunnel Light Housing (Only Empty Fixture) |
Product Size | 437*237*200mm |
MPCB Area dimension | 395*195mm |
LED Driver Area Dimension | 200*90*46mm |
Material | ADC12 Aluminum +Toughed Glass |
Lamp Color | Grey by Powder Coating |
Power Range | 60w to 100w |
Heat-Sink design | Fin-radiator |
Water-proof Level | IP66 |
Included accessories | ADC12 Environmental Aluminum /4mm super tempered glass /Powder coating for surface /gaskets /304stainless screws / |
Available Certificate | Rohs,IP66,IK09,patent |
Packing details | Each Packed with EPE |
Drawing and size
PCB drawing of 3002G60 LED tunnel light housing
Driver box drawing
▎Accessories included: LED tunnel light body, driver box, bracket, cable gland, silicon seal, stainless steel 304 screws ,tempering glass .
▎Design and making the mould, die casting, machining and threading, powder coating, assembling, packing. During this process, we will at least inspect three times to confirm all the holes, thread, size… are right and can match with each part.
01.Design and making the mould
02.Die casting
03.Inspecting the semifinished cases
04.Machinning and threading
05.Packing and loading
06.Powder coating and assembling
07.The mould comes out
08.The products come out
◪ Can I make a longer and stronger bracket for this LED tunnel light housing?
Sure. We can customize it with our team.
◪ What is the maximum power of this LED tunnel light housing?
Usually can do 60w to 100w.
◪ Can I customize my brand LOGO on the LED tunnel light housing?
Yes, you can send us the picture and tell us your request, we will make a effect drawing for reference first. If confirm, we will do the sample to check.
◪ What is the payment term?
T/T, 30% deposit, 70% balance payment against BL copy OR LC at sight.
◪ Does the price for empty LED tunnel light housing only?
Yes, usually what we offer is the empty housing only. If you want PCB, lens and lens cover, kindly let us know.We can also provide the service for you.
