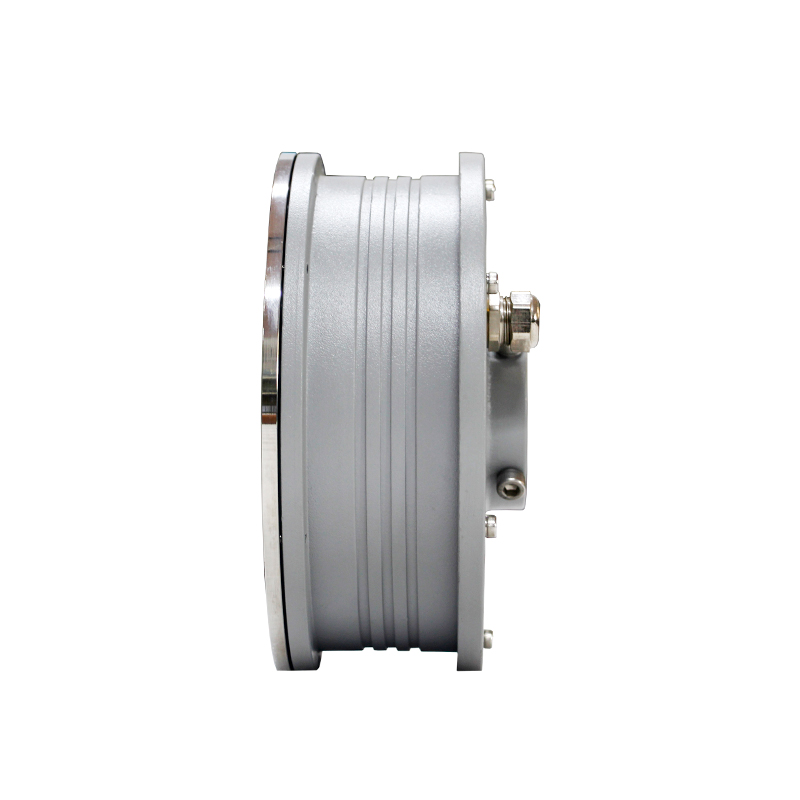

LED Underwater light housing
LED Underwater light housing
Product Data
Feature | Technological data | |
Item No. | 5002Q18 | |
Size | ￠180*93mm | |
Power | 18w | |
Net weight | 1690g | |
Components included | Stainless steel 304 LED fountain light body, tempering glass, driver box, cable gland, silicon seal and stainless steel 304 screws. | |
Waterproof rating | IP66 | |
Certificate | IP66,Rohs,IK09,patent | |
Surface finish | Polish, powder coating | |
Package quantity | 8 units/carton | |
Package way | bubble bag, inner box, carton | |
Carton size | 39*39*23.5CM | |
MOQ | 300 units |
|
Container quantity | 1x40HQ | 14000 units |
1X20FT | 6000 units | |
Sample | Free sample with freight collect | |
Shipping term | FOB,CNF,CIF,DDU,DDP | |
Loading Port | FOSHAN,SHENZHEN,GUANGZHOU | |
Drawing and size
▎Stainless steel 304 front cover, silicon seal,4mm tempering glass,die casting lamp body,driver box,cable gland and stainless steel 304 screws. The stainless steel 304 combines with die casting structure to make it have good properties of pressure resistance, high temperature resistance and strong corrosion resistance.
▎Designing the mould, making out the mould, die casting and precision casting, LED fountain light housing components come out, inspect semi finished products, machining and threading, burnishing and powder coating, inspecting & assembling, inspecting and packing. We will at least inspect the products for three times so that to prevent any mistake.
01.Design and making the mould
02.Die casting
03.Inspecting the semifinished cases
04.Machinning and threading
05.Packing and loading
06.Powder coating and assembling
07.The mould comes out
08.The products come out
▎Stainless steel 304 made products assure of corrosion proof,water proof and semi - permanent life,which makes it fit to the swimming pool , music pool ,water landscape and some sites are relate to the water,sea,river and so on.
◪ Why you have to assemble all the components of LED fountain light housing together?
We assemble together to guarantee all the holes and threads are fit with each parts, our customers can reduce after - sales issues and wont stop when they are making the completed light.
◪ Can you customize the diameter of the front cover to fit the size of my request?
Yes, our engineer will do the CAD drawing for you to confirm and our team will do it according to the drawing. After make out the samples,we will also send you pictures or sample for reference.
◪ Can you send us with full sets accessories of LED fountain light housing but led chip and driver?
Yes, beside the empty LED fountain light housing, we can also provide the PCB and lens.
◪ What is the payment term?
T/T, 30% deposit, 70% balance payment against BL copy OR LC at sight.
◪ Can you make the completed or finished light for us?
We can introduce our customers that do the finished LED fountain light for you and send our empty LED fountain light housing to them.

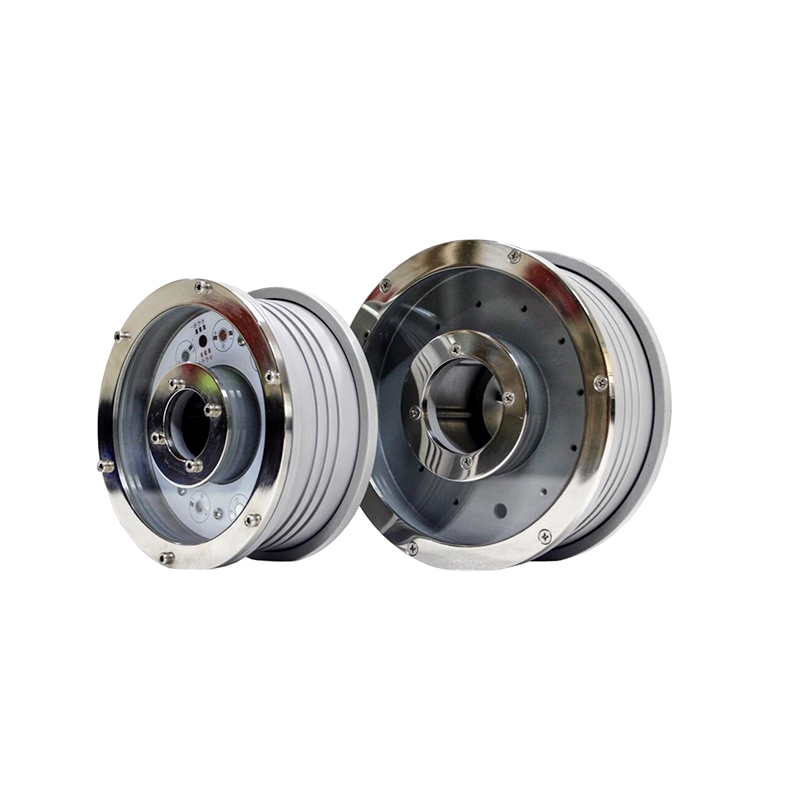

◪ How many sizes do you have?
Two sizes, diameter in 160 and 180.If you want other size need to be customized, we can make the new mould for you.
