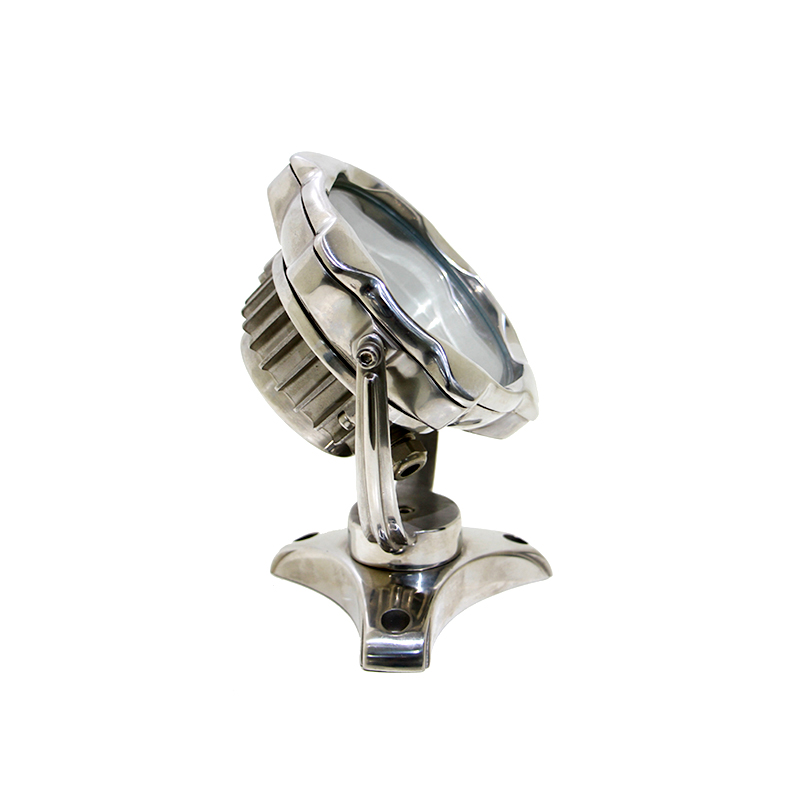

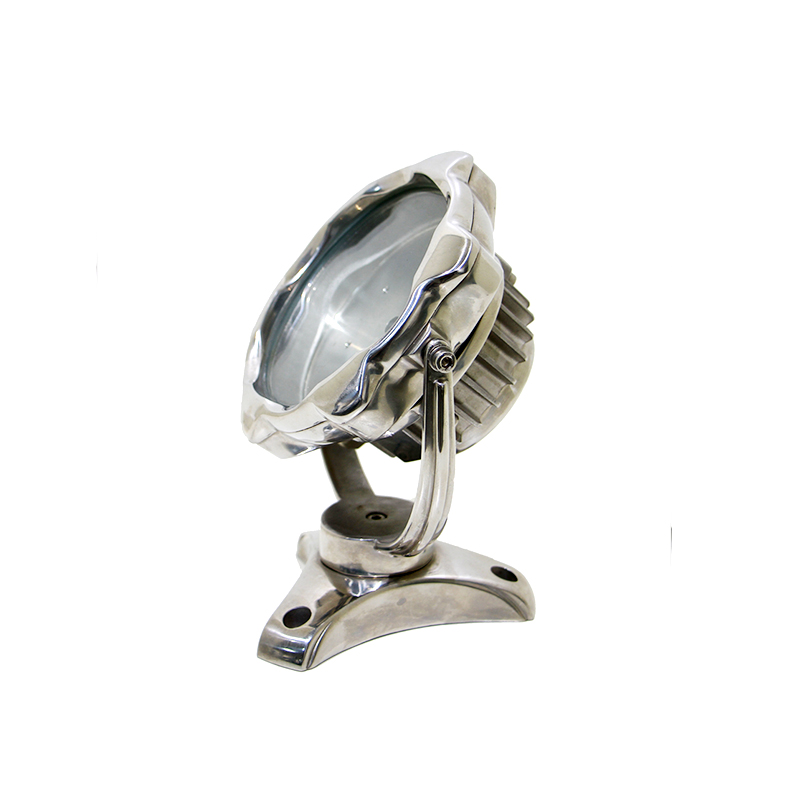

LED Underwater light housing
LED Underwater light housing
Product Data
Feature | Technological data | |
Item No. | 4003S18A | |
Size | 180*230*76mm | |
Power | 18w to 24w | |
Net weight | 2200g | |
Components included | Stainless steel 304 LED underwater light body, tempering glass, driver box, bracket, cable gland, silicon seal and stainless steel 304 screws. | |
Waterproof rating | IP68 | |
Certificate | IP68,Rohs,IK09,patent | |
Surface finish | Polish | |
Package quantity | 8 units/carton | |
Package way | ,bubble bag, inner box, carton | |
Carton size | 39*37.3*37CM | |
MOQ | 300 units |
|
Container quantity | 1x40HQ | Over weight |
1X20FT | 4000 units | |
Sample | Free sample with freight collect | |
Shipping term | FOB,CNF,CIF,DDU,DDP | |
Loading Port | FOSHAN,SHENZHEN,GUANGZHOU | |
Drawing and size
▎Front cover, silicon seal,4mm tempering glass,lamp body,driver box,cable gland,bracket,bracket base and stainless steel 304 screws.All the metal parts of this LED underwater light housing are in stainless steel 304,which leads it can put into the water that depth in 10m. The products have good properties of pressure resistance, high temperature resistance and strong corrosion resistance.
▎Stainless steel 304 made products assure of corrosion proof,water proof and semi - permanent life,which makes it fit to the seaside, pool ,water landscape and some sites relate to the water,sea,river and so on.
◪ Our customers will use this LED underwater light housing near the beach or in the place under -30°temperature ,is it work?
Sure. Our LED underwater light housing are all make in stainless steel 304 and got IP68,IK09.
◪ I want to make RGB LED underwater light, so need two cable entrance,can you make it?
Yes, our engineer will do the CAD drawing for you to check and our team will do it according to the drawing. After make out the samples,we will also send you pictures or sample for reference.
◪ Can I customize my brand LOGO on the LED underwater light housing?
Yes, you can send us the picture and tell us your request,we will make a effect drawing for reference first. If confirm,we will do the sample to check.
◪ What is the payment term?
T/T, 30% deposit, 70% balance payment against BL copy OR LC at sight.
◪ What is the deliver time?
Usually we will have stock if quantity is under 100 units.For the order more than 100 units,deliver time is 20 days. Because our LED underwater light housing need precision casting and polishing,the deliver time is later than other products.
