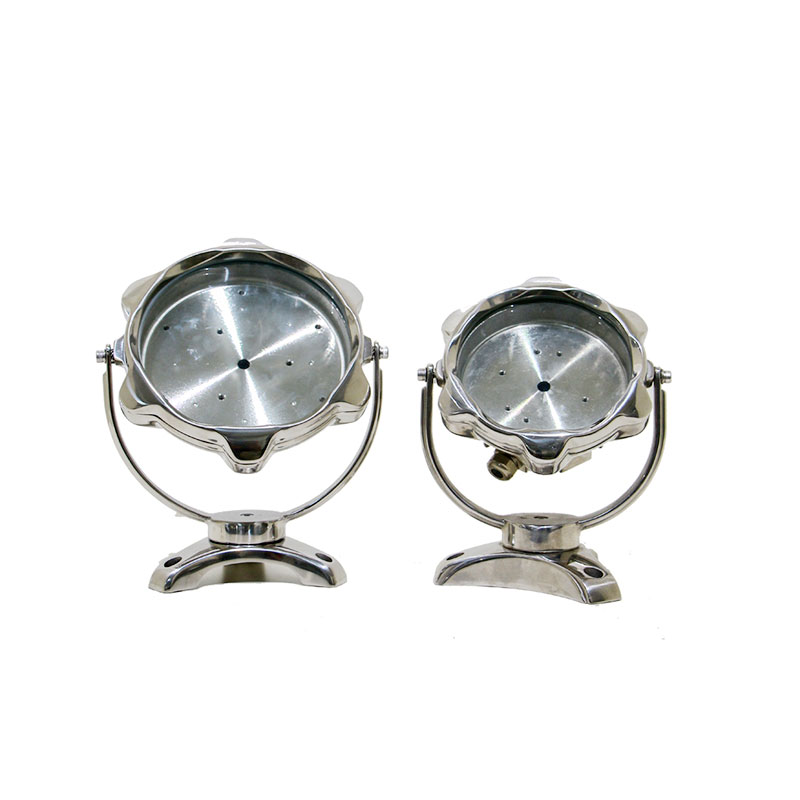

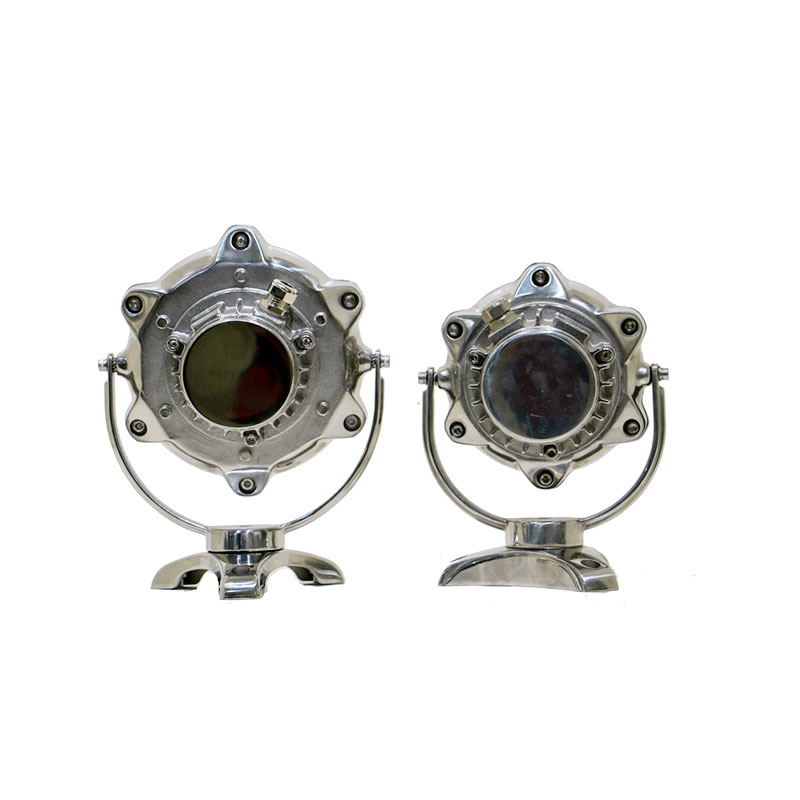

LED Underwater light housing
LED Underwater light housing
Drawing and data
Feature | Technological data | |
Item No. | 4001S12A | |
Size | 160*205*76mm | |
Power | 9w to 12w | |
Net weight | 2200g | |
Components included | Stainless steel 304 LED underwater light body, tempering glass, driver box, bracket, cable gland, silicon seal and stainless steel 304 screws. | |
Waterproof rating | IP68 | |
Certificate | IP68,Rohs,IK09,patent | |
Surface finish | Polish | |
Package quantity | 8 units/carton | |
Package way | bubble bag, inner box, carton | |
Carton size | 39*37.3*37CM | |
MOQ | 300 units |
|
Container quantity | 1x40HQ | Over weight |
1X20FT | 4000 units | |
Item number | description | material | size | weight | IP rating |
4001S12W-A | 12W underwater light housing | Stainless steel 304 | 160*205*76mm | 2.20kg | IP68 |
4003S18W-A | 18W underwater light housing | Stainless steel 304 | 180*230*76mm | 2.40kg | IP68 |
4002S12W-B | 12W underwater light housing | Zinc alloy | 148*198*87mm | 1.20kg | IP68 |
4004-S12W-C | 12W underwater light housing | H59 brass | 160*205*76mm | 2.26kg | IP68 |
4005-S18W-C | 18W underwater light housing | H59 brass | 180*230*76mm | 2.48kg | IP68 |
Enclosure of the Led Underwater Light Fixture
Stainless Steel light body, surface cover, rear cover, driver box, stainless steel 304 bracket, toughened glass, cable gland, silicone seal and 304 stainless steel screws.
▎Stainless steel 304 made products assure of corrosion proof,water proof and semi - permanent life,which makes it fit to the seaside, pool ,water landscape and some sites relate to the water,sea,river and so on.
◪ Our customers will use this LED underwater light housing near the beach or in the place under -30°temperature ,is it work?
Sure. Our LED underwater light housing are all make in stainless steel 304 and got IP68,IK09.
◪ I want to make RGB LED underwater light, so need two cable entrance, can you make it?
Yes, our engineer will do the CAD drawing for you to check and our team will do it according to the drawing. After make out the samples, we will also send you pictures or sample for reference.
◪ Can I customize my brand LOGO on the LED underwater light housing?
Yes, you can send us the picture and tell us your request, we will make a effect drawing for reference first. If confirm, we will do the sample to check.
◪ What is the payment term?
T/T, 30% deposit, 70% balance payment against BL copy OR LC at sight.
◪ What is the deliver time?
Usually we will have stock if quantity is under 100 units. For the order more than 100 units, deliver time is 20 days. Because our LED underwater light housing need precision casting and polishing, the deliver time is later than other products.
※ Any inquiry or question from you will be replied in 24hrs during working day.
※ Accepting ODM/OEM.
※ Accepting order. we will make led lamp promptly according to your requirements.
※ Once sending the goods, we will send you the tracking number or bill of lading.
※ We will get your comment and track for any products promptly, after you finish test or installation.
※ Warranty: 2years, provide free accessories as maintenance within the warranty period.
※ If our quality make led lamp not work, we will send you a news one freely.
※ Delivery methods: By air express (DHL, UPS, TNT, FedEx, EMS), air cargo, train ect, it is up to you
