Panel Lights
Products Details

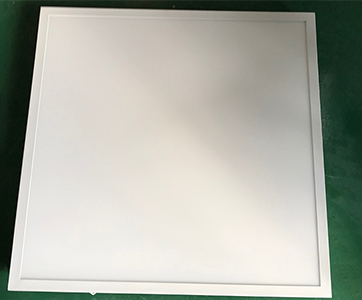

Dolight Classic IP65 Panel with whole IP65 for whole fixture and driver is a good illumination solution for parmaceutical factory, hospital operating room. It emits soft and even light and is comfortable for humans’ eyes. IP54 is optional for different requirement. The long service life round off the performance of the luminaire.
◈ FEATURES
bg
1

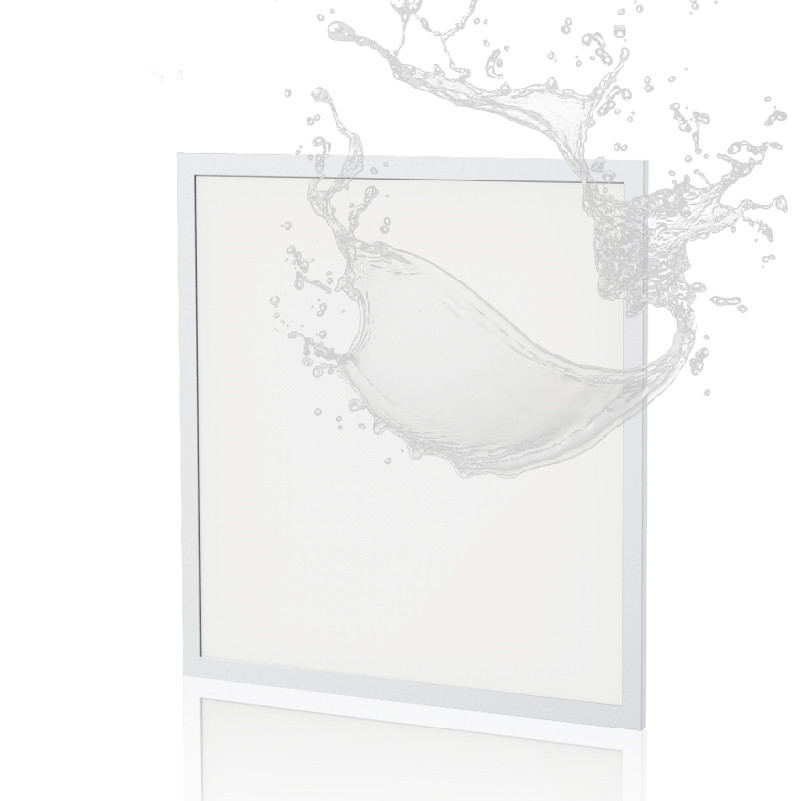

IP65 dustproof
and waterproof
3
Competitive
price
2
Super slim size with only 10mm thickness
◈ ADVANTAGE
bg

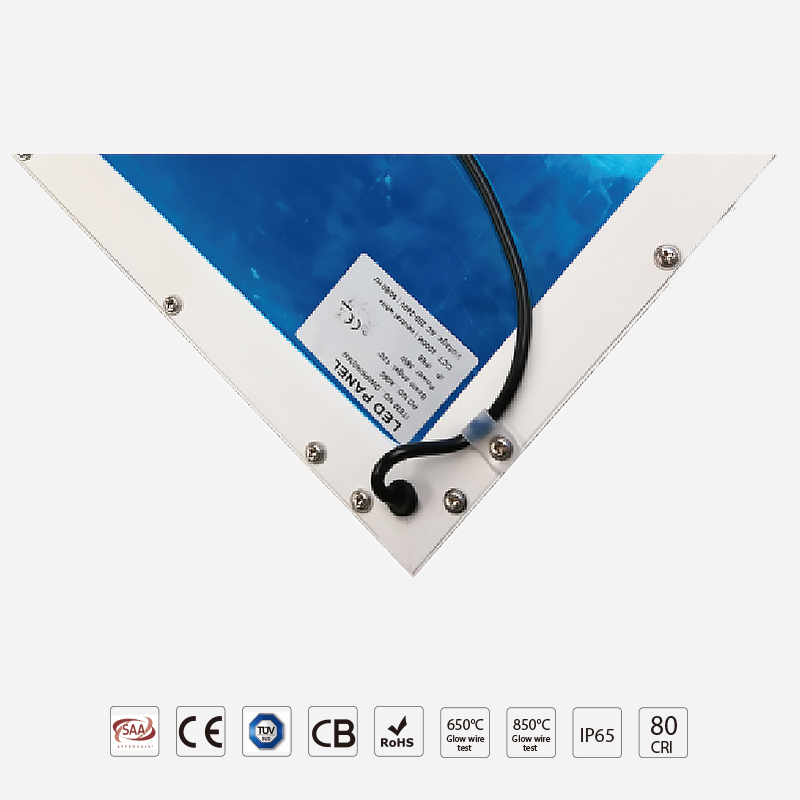

◪ TUV Listed CE, CB, and RoHS, SAA,ISO9001;
◪ Front face+backside+driver, whole fixture IP65,totally Waterproof and dust proof;
◪ PS diffuser, glow wire test 650°C; PC diffuser, glow wire test 850°C; 5 years warranty time;
◪ Special used in the factory clean room,pharmaceutical factory, hospital operating room;
◪ IP54 version is optional, front surface is IP65, backsize and driver is IP40;
◪ IP65 test report, IK07 test report, clean room test report are available;
◈ SPECIFICATION
bg
IP65 LED Panel Light | ||
Photometric Parameters | ||
NO. | Project | Parameter |
1 | LED | High luminous flux SMD LED Samsung/Osram |
2 | Luminous Efficiency | 100 Lm/W |
3 | CCT | 3000K-6500K (warm white, natural white, cool white) |
4 | CRI | ≥80 |
5 | Beam Angle | 120° |
6 | LED Lifespan | ≥50000 Hours |
Electrical Parameters | ||

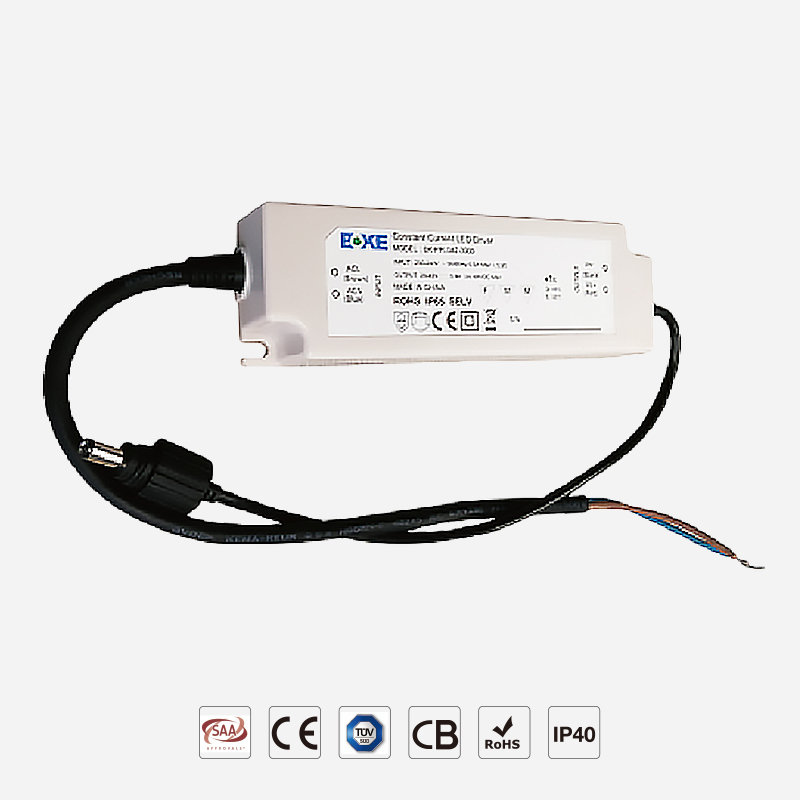

7 | Driver Input Voltage | AC220-240V /50-60Hz |
8 | OutputVoltage | DC30-40V |
9 | Power Supply Efficiency | ≥88% |
10 | Power Factor | ≥0.95 |
11 | Protection Class | Class II |
General Parameters | ||
12 | Rating IP | IP65 |
13 | Material | Aluminum + PMMA |
14 | Frame Finishing | White |
15 | Installation | Recessed/Pendant |
16 | Working Temperature | -20～+45℃ |
17 | Storing Temperature | -40～+60℃ |
18 | Working Humidity | 15%~90%RH |
◈ SIZE
bg

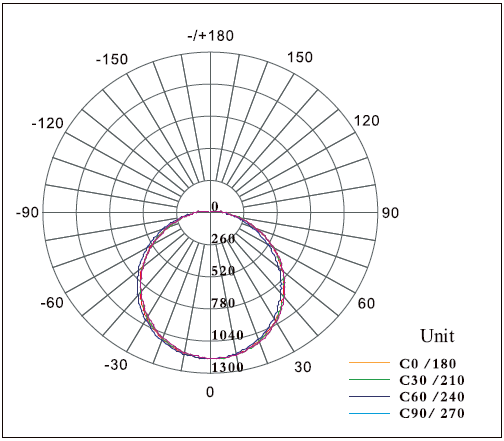

Photometric Data
595*595
Efficiency | Model No. | Wattage | Luminous flux | CRI | LED | Dimension |
100lm/W | DWIP606036 | 36W | 3600lm | 80Ra | SMD2835 | 595x595x10mm |
DWIP626236 | 36W | 3600lm | 80Ra | SMD2835 | 620x620x10mm | |
DWIP3012036 | 36W | 3600lm | 80Ra | SMD2835 | 295x1195x10mm | |
DWIP606048 | 48W | 4500lm | 80Ra | SMD2835 | 595x595x10mm | |
DWIP626248 | 48W | 4500lm | 80Ra | SMD2835 | 620x620x10mm | |
DWIP3012048 | 48W | 4500lm | 80Ra | SMD2835 | 295x1195x10mm |
◈ COMPARE:IP65 Panel & IP54 Panel
bg
IP54 Panel
Front size is IP65
Backsize and driver is IP54
IP65 Panel
Whole panel
and driver are IP65
◈ FLEXIBLE INSTALLATION TYPE
bg

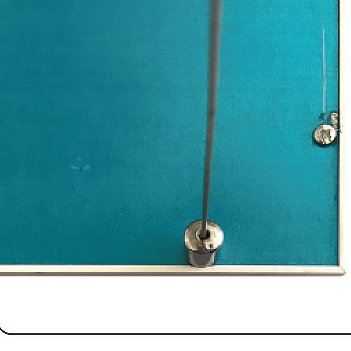

Mehtod A:
Suspending

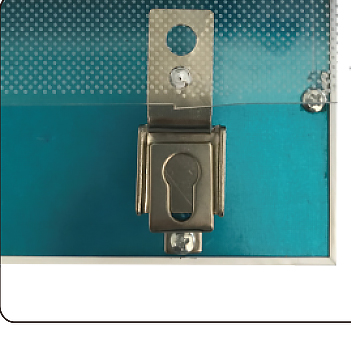

Mehtod B:
Clips recessed
Mehtod C:
Surface mount

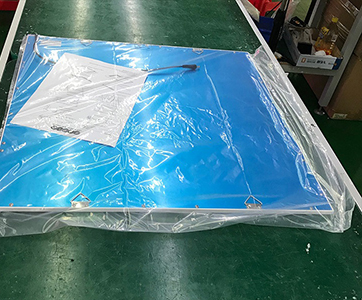

◈ PACKING
bg

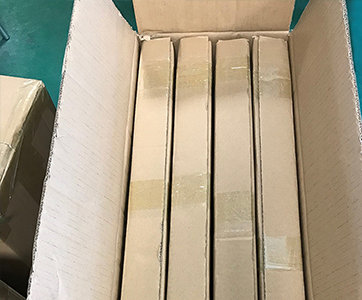

1pc panel+1pc driver/box; 4 boxes/ carton
Plastic Bags
Pearl Cotton
Inside Box
Carton
◈ APPLICATION
bg

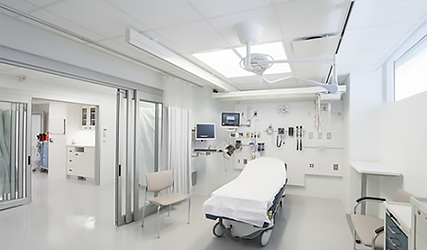

♦ Lab ♦ Hospital ♦ Pharmacy workshop ♦ Computer Lab
